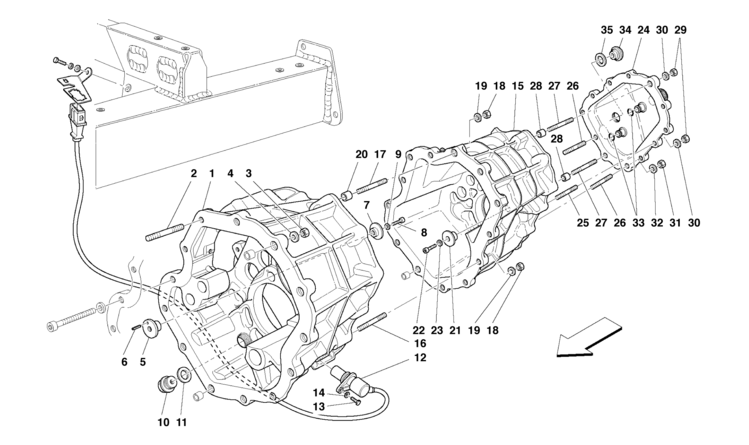

| Ref. | Part# | Qty. | Description | Price |
|---|
| 194234 | 1 | COMPLETE GEARBOX ASSEMBLY | | | |
Part#: 194234 Qty: 1 |
| 1 | 185744 | 1 | GEAR BOX 3rd ELEMENT -With the complete gearbox 194234- | | | |
Part#: 185744 Qty: 1 |
| 2 | 13543524 | 3 | STUD | $4.36 | | |
Part#: 13543524 Qty: 3$4.36 |
| 3 | 16100812 | 12 | NUT | | | |
Part#: 16100812 Qty: 12 |
| 4 | 12601374 | 13 | WASHER | $0.49 | | |
Part#: 12601374 Qty: 13$0.49 |
| 5 | 157009 | 1 | BUSHING | | | |
Part#: 157009 Qty: 1 |
| 6 | 14159470 | 1 | FLEXIBLE PIN | $4.97 | | |
Part#: 14159470 Qty: 1$4.97 |
| 7 | 157010 | 1 | BUSHING | | | |
Part#: 157010 Qty: 1 |
| 8 | 14305731 | 1 | SCREW | | | |
Part#: 14305731 Qty: 1 |
| 9 | 10569274 | 1 | WASHER | $0.75 | | |
Part#: 10569274 Qty: 1$0.75 |
| 10 | 10305111 | 1 | THREADED PLUG | | | |
Part#: 10305111 Qty: 1 |
| 11 | 10263460 | 1 | GASKET | $1.00 | | |
Part#: 10263460 Qty: 1$1.00 |
| 12 | 168729 | 1 | ELECTRO-MAGNETIC SENSOR | $294.17 | | |
Part#: 168729 Qty: 1$294.17 |
| 13 | 10902224 | 1 | SCREW | $0.95 | | |
Part#: 10902224 Qty: 1$0.95 |
| 14 | 11194377 | 1 | WASHER | | | |
Part#: 11194377 Qty: 1 |
| 15 | 185743 | 1 | GEAR BOX 2rd ELEMENT -With the complete gearbox 194234- | | | |
Part#: 185743 Qty: 1 |
| 16 | 13543524 | 11 | STUD | $4.36 | | |
Part#: 13543524 Qty: 11$4.36 |
| 17 | 13543624 | 2 | STUD | $0.46 | | |
Part#: 13543624 Qty: 2$0.46 |
| 18 | 16100812 | 13 | NUT | | | |
Part#: 16100812 Qty: 13 |
| 19 | 12601374 | 13 | WASHER | $0.49 | | |
Part#: 12601374 Qty: 13$0.49 |
| 20 | 102704 | 2 | CENTERING DOWEL | $3.29 | | |
Part#: 102704 Qty: 2$3.29 |
| 21 | 131757 | 1 | BUSHING | $10.37 | | |
Part#: 131757 Qty: 1$10.37 |
| 22 | 14305731 | 1 | SCREW | | | |
Part#: 14305731 Qty: 1 |
| 23 | 10569274 | 1 | WASHER | $0.75 | | |
Part#: 10569274 Qty: 1$0.75 |
| 24 | 185372 | 1 | REAR COVER | | | |
Part#: 185372 Qty: 1 |
| 25 | 13543624 | 8 | STUD | $0.46 | | |
Part#: 13543624 Qty: 8$0.46 |
| 26 | 13546524 | 2 | STUD | $1.16 | | |
Part#: 13546524 Qty: 2$1.16 |
| 27 | 13543724 | 2 | STUD | $1.50 | | |
Part#: 13543724 Qty: 2$1.50 |
| 28 | 102704 | 2 | CENTERING DOWEL | $3.29 | | |
Part#: 102704 Qty: 2$3.29 |
| 29 | 16100812 | 10 | NUT | | | |
Part#: 16100812 Qty: 10 |
| 30 | 12601374 | 10 | WASHER | $0.49 | | |
Part#: 12601374 Qty: 10$0.49 |
| 31 | 12164712 | 2 | NUT | | | |
Part#: 12164712 Qty: 2 |
| 32 | 12601474 | 2 | WASHER | $0.25 | | |
Part#: 12601474 Qty: 2$0.25 |
| 33 | 137192 | 2 | O.R. GASKET | $0.75 | | |
Part#: 137192 Qty: 2$0.75 |
| 34 | 10305111 | 1 | THREADED PLUG | | | |
Part#: 10305111 Qty: 1 |
| 35 | 10263460 | 1 | GASKET | $1.00 | | |
Part#: 10263460 Qty: 1$1.00 |
