Ferrari Philadelphia Parts

Table 15/A

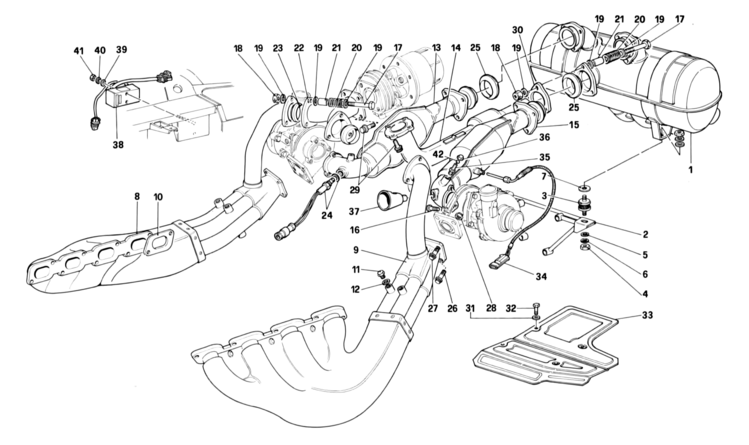

Table 15/A - Exhaust system -Valid for cars with catalyst

Ref.Part#Qty.DescriptionPrice
11425271
Exhaust silencer
$12500.00

Part#: 142527 Qty: 1$12500.00

21237151
Mounting for silencer
$1050.00

Part#: 123715 Qty: 1$1050.00

31182232
Insulating mounting
$36.93

Part#: 118223 Qty: 2$36.93

4161008114
Nut

Part#: 16100811 Qty: 4

5126467014
Washer

Part#: 12646701 Qty: 4

61274964
Washer
$0.50

Part#: 127496 Qty: 4$0.50

71467002
Gasket
$1.55

Part#: 146700 Qty: 2$1.55

81425761
Right exhaust manifold

Part#: 142576 Qty: 1

91425751
Left exhaust manifold

Part#: 142575 Qty: 1

101380768
Gasket
$8.14

Part#: 138076 Qty: 8$8.14

1111086010
Plug
$16.50

Part#: 110860 Qty: 10$16.50

121029846010
Gasket
$1.00

Part#: 10298460 Qty: 10$1.00

131425241
R.H. paint catalys Not for USA

Part#: 142524 Qty: 1

1442251
R.H. paint catalys -Valid for USA

Part#: 144225 Qty: 1

141425261
Outlet pipe from wastegate Not for USA

Part#: 142526 Qty: 1

1439851
Outlet pipe from wastegate Valid for USA
$1908.48

Part#: 143985 Qty: 1$1908.48

151425251
L.H. paint catalys Not for USA

Part#: 142525 Qty: 1

1442261
L.H. paint catalys Valid for USA

Part#: 144226 Qty: 1

161224616
Screw

Part#: 122461 Qty: 6

1712800915
Screw
$32.45

Part#: 128009 Qty: 15$32.45

1811825115
Nut
$12.86

Part#: 118251 Qty: 15$12.86

1912801045
Washer
$7.42

Part#: 128010 Qty: 45$7.42

2011174315
Spring
$41.43

Part#: 111743 Qty: 15$41.43

2111474915
Spacer
$3.63

Part#: 114749 Qty: 15$3.63

221225611
Pipe from manifolds to W.G.

Part#: 122561 Qty: 1

231549792
Gasket
$19.95

Part#: 154979 Qty: 2$19.95

241465332
Sensor

Part#: 146533 Qty: 2

251549843
Gasket
$24.88

Part#: 154984 Qty: 3$24.88

261230034
Screw
$82.23

Part#: 123003 Qty: 4$82.23

271230024
Screw
$38.01

Part#: 123002 Qty: 4$38.01

281182518
Nut
$12.86

Part#: 118251 Qty: 8$12.86

291224614
Screw

Part#: 122461 Qty: 4

301230661
Bride

Part#: 123066 Qty: 1

31126378214
Washer

Part#: 12637821 Qty: 4

32109775214
Screw

Part#: 10977521 Qty: 4

331444121
Shield

Part#: 144412 Qty: 1

341442702
Thermocouple Not for USA
$1141.10

Part#: 144270 Qty: 2$1141.10

2
Thermocouple Valid for USA

Part#: Qty: 2

351442402
Union
$85.50

Part#: 144240 Qty: 2$85.50

361505952
Cap nut
$1.02

Part#: 150595 Qty: 2$1.02

371482672
Protection bowl Valid for USA

Part#: 148267 Qty: 2

381425812
Catalyst electric board
$1130.87

Part#: 142581 Qty: 2$1130.87

39144963014
Washer
$0.30

Part#: 14496301 Qty: 4$0.30

40106152794
Washer

Part#: 10615279 Qty: 4

41125740114
Nut

Part#: 12574011 Qty: 4

421258582
Ball

Part#: 125858 Qty: 2
