Ferrari Philadelphia Parts

Table 9

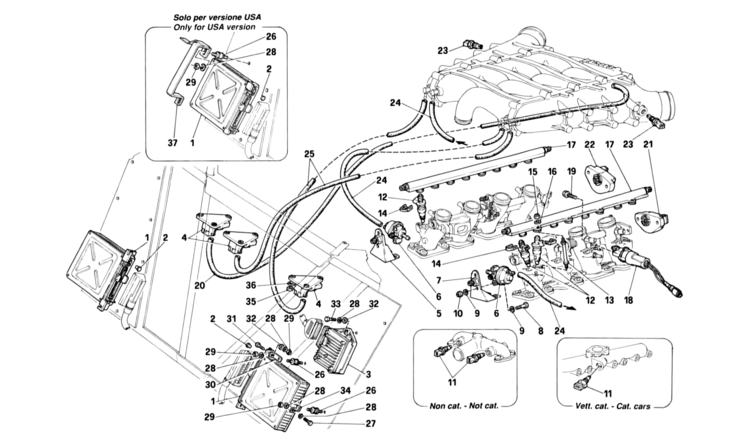

Table 9 - Injection device

Ref.Part#Qty.DescriptionPrice
11345272
Control unit Not for cars with catalyst

Part#: 134527 Qty: 2

1434012
Control unit -Valid for cars with catalystNot for USA-

Part#: 143401 Qty: 2

1427782
Control unit Valid for USA-
$3558.05

Part#: 142778 Qty: 2$3558.05

21394022
Plug Not for USA-

Part#: 139402 Qty: 2

1481992
Plug Valid for USA-

Part#: 148199 Qty: 2

31366151
Module

Part#: 136615 Qty: 1

41345283
Sensor
$553.66

Part#: 134528 Qty: 3$553.66

51361691
Support

Part#: 136169 Qty: 1

61345302
Regulator
$375.00

Part#: 134530 Qty: 2$375.00

71361901
Support

Part#: 136190 Qty: 1

8109026214
Screw
$0.21

Part#: 10902621 Qty: 4$0.21

9126042798
Washer

Part#: 12604279 Qty: 8

10125754114
Nut

Part#: 12575411 Qty: 4

111253802
Sensor

Part#: 125380 Qty: 2

1213453116
Jet
$12045.73

Part#: 134531 Qty: 16$12045.73

131331068
Pin

Part#: 133106 Qty: 8

1413040216
Spring

Part#: 130402 Qty: 16

15158962118
Nut

Part#: 15896211 Qty: 8

16126012798
Washer
$0.07

Part#: 12601279 Qty: 8$0.07

171331082
Tank manifold assy

Part#: 133108 Qty: 2

181335281
Actuator

Part#: 133528 Qty: 1

191386683
Screw

Part#: 138668 Qty: 3

201385051
Tube

Part#: 138505 Qty: 1

211372051
L.H. potentiometer

Part#: 137205 Qty: 1

221372061
R.H. potentiometer

Part#: 137206 Qty: 1

231304002
Sensor
$243.37

Part#: 130400 Qty: 2$243.37

241189012
Pipe

Part#: 118901 Qty: 2

251221262
Pipe

Part#: 122126 Qty: 2

261488356
Plug
$22.00

Part#: 148835 Qty: 6$22.00

27109775212
Screw

Part#: 10977521 Qty: 2

2812749314
Washer
$0.10

Part#: 127493 Qty: 14$0.10

291589641110
Nut

Part#: 15896411 Qty: 10

301383434
Bracket

Part#: 138343 Qty: 4

31109776214
Screw

Part#: 10977621 Qty: 4

32126378016
Washer

Part#: 12637801 Qty: 6

33109780212
Screw

Part#: 10978021 Qty: 2

34616758001
L.H. bracket Not for USA

Part#: 61675800 Qty: 1

1380321
R.H. bracket Not for USA

Part#: 138032 Qty: 1

1487151
L.H. bracket -Valid for USA

Part#: 148715 Qty: 1

1487141
R.H. bracket -Valid for USA

Part#: 148714 Qty: 1

35125778119
Nut

Part#: 12577811 Qty: 9

36126011799
Washer

Part#: 12601179 Qty: 9

371427511
R.H. bracket -Valid for USA

Part#: 142751 Qty: 1

1427521
L.H. bracket -Valid for USA

Part#: 142752 Qty: 1
