Table 104

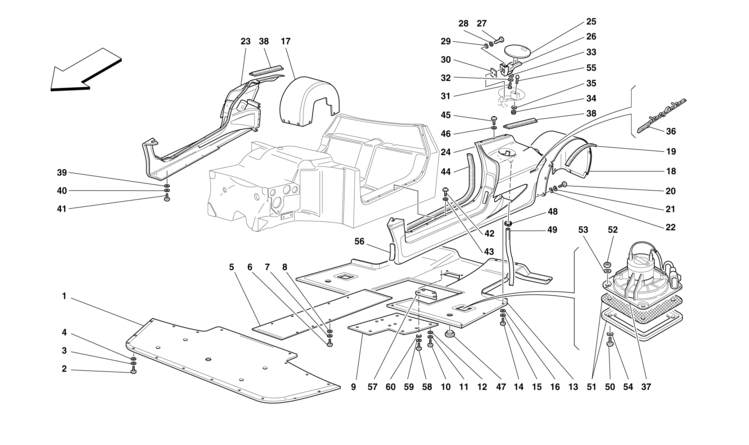

Table 104 - BODY - LATERAL ELEMENTS, FLAT FLOOR PAN AND REAR WHEELHOUSES

Ref.Part#Qty.DescriptionPrice
1644898001
FRONT UNDERBODY FLOOR

Part#: 64489800 Qty: 1

21302618721
SCREW

Part#: 13026187 Qty: 21

316646721
WASHER
$1.16

Part#: 166467 Qty: 21$1.16

41449637721
WASHER -Not as spare part now- -Replaced by 12638177-
$2.49

Part#: 14496377 Qty: 21$2.49

41263817721
WASHER

Part#: 12638177 Qty: 21

5636572001
UNDER-TUNNEL FLAT FLOOR PAN

Part#: 63657200 Qty: 1

61302618712
SCREW

Part#: 13026187 Qty: 12

716646712
WASHER
$1.16

Part#: 166467 Qty: 12$1.16

81449637712
WASHER
$2.49

Part#: 14496377 Qty: 12$2.49

9644901001
REAR CENTRAL UNDERBODY FLOOR

Part#: 64490100 Qty: 1

101302618714
SCREW

Part#: 13026187 Qty: 14

1116646714
WASHER
$1.16

Part#: 166467 Qty: 14$1.16

121449637714
WASHER
$2.49

Part#: 14496377 Qty: 14$2.49

13636569001
REAR UNDERBODY FLOOR -Completed of insulation-

Part#: 63656900 Qty: 1

141302618728
SCREW

Part#: 13026187 Qty: 28

1516646728
WASHER
$1.16

Part#: 166467 Qty: 28$1.16

161449637728
WASHER
$2.49

Part#: 14496377 Qty: 28$2.49

17636737001
R.H. REAR GRAVEL GUARD

Part#: 63673700 Qty: 1

18636738001
L.H. REAR GRAVEL GUARD

Part#: 63673800 Qty: 1

19641378002
GASKET

Part#: 64137800 Qty: 2

201327427720
SCREW
$0.50

Part#: 13274277 Qty: 20$0.50

2116646720
WASHER
$1.16

Part#: 166467 Qty: 20$1.16

221449637720
WASHER
$2.49

Part#: 14496377 Qty: 20$2.49

23636735101
R.H. MUDGUARD SIDE COVER

Part#: 63673510 Qty: 1

24636736101
L.H. MUDGUARD SIDE COVER

Part#: 63673610 Qty: 1

25641681101
FUEL INLET LID

Part#: 64168110 Qty: 1

26627613001
COMPLETE HINGE

Part#: 62761300 Qty: 1

27132741772
SCREW

Part#: 13274177 Qty: 2

281664672
WASHER
$1.16

Part#: 166467 Qty: 2$1.16

29126381772
WASHER

Part#: 12638177 Qty: 2

30647940001
SMALL PLATE

Part#: 64794000 Qty: 1

31132738722
SCREW

Part#: 13273872 Qty: 2

321664672
WASHER
$1.16

Part#: 166467 Qty: 2$1.16

33126381772
WASHER

Part#: 12638177 Qty: 2

34125778111
NUT

Part#: 12577811 Qty: 1

35105193011
WASHER
$0.35

Part#: 10519301 Qty: 1$0.35

36647805001
PININFARINA ORNAMENT
$117.17

Part#: 64780500 Qty: 1$117.17

371672862
ELECTROFAN

Part#: 167286 Qty: 2

38641965002
GASKET

Part#: 64196500 Qty: 2

39144963778
WASHER
$2.49

Part#: 14496377 Qty: 8$2.49

401664678
WASHER
$1.16

Part#: 166467 Qty: 8$1.16

41130261878
SCREW

Part#: 13026187 Qty: 8

4214736514
SCREW

Part#: 147365 Qty: 14

431449637714
WASHER
$2.49

Part#: 14496377 Qty: 14$2.49

44647366002
GASKET

Part#: 64736600 Qty: 2

45132742776
SCREW
$0.50

Part#: 13274277 Qty: 6$0.50

46144963776
WASHER
$2.49

Part#: 14496377 Qty: 6$2.49

47649177002
PLUG

Part#: 64917700 Qty: 2

48121736901
SCREW COLLAR

Part#: 12173690 Qty: 1

491233911
EXHAUST TUBE

Part#: 123391 Qty: 1

50132722708
SCREW
$0.10

Part#: 13272270 Qty: 8$0.10

51641582002
GRILL

Part#: 64158200 Qty: 2

52107940118
NUT
$0.03

Part#: 10794011 Qty: 8$0.03

53144962778
WASHER
$0.84

Part#: 14496277 Qty: 8$0.84

54126010748
WASHER
$0.03

Part#: 12601074 Qty: 8$0.03

55624532001
STOP PIN

Part#: 62453200 Qty: 1

56651267001
L.H. PROTECTION

Part#: 65126700 Qty: 1

56651268001
R.H. PROTECTION

Part#: 65126800 Qty: 1

57646380001
GEARBOX INSPECTION DOOR

Part#: 64638000 Qty: 1

58143052874
SCREW
$1.75

Part#: 14305287 Qty: 4$1.75

591666014
WASHER

Part#: 166601 Qty: 4

60144964784
WASHER
$0.92

Part#: 14496478 Qty: 4$0.92
