Ferrari Philadelphia Parts

Table 108

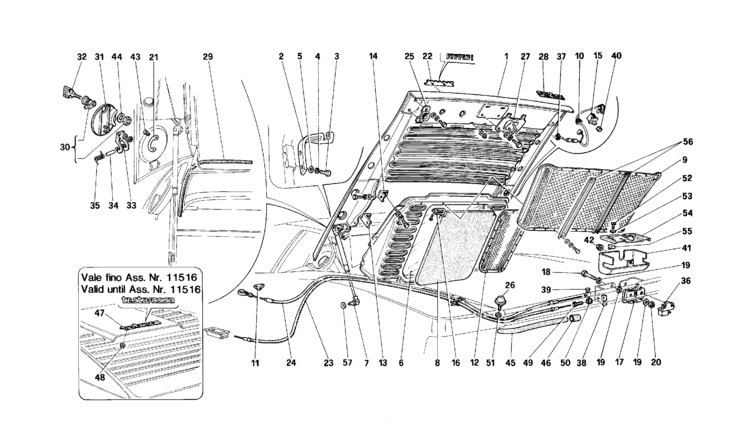

Table 108 - Rear hood

Ref.Part#Qty.DescriptionPrice
615453001
Lock set with keys -Not for USA, CDN, SA, J-

Part#: 61545300 Qty: 1

1642831
Lock set with keys -Valid for USA, CDN, SA, J-
$2315.00

Part#: 164283 Qty: 1$2315.00

1631072001
Engine bonnet -Not for USA, CDN, AUS-

Part#: 63107200 Qty: 1

1630778001
Engine bonnet -Valid for USA, CDN, AUS-

Part#: 63077800 Qty: 1

2630601001
L.H. hinge

Part#: 63060100 Qty: 1

2630600001
R.H. hinge

Part#: 63060000 Qty: 1

3143065874
Screw

Part#: 14306587 Qty: 4

41274964
Washer
$0.50

Part#: 127496 Qty: 4$0.50

5126420244
Washer

Part#: 12642024 Qty: 4

6630621001
Engine cover assembly

Part#: 63062100 Qty: 1

7614981001
Device for R.H. bonnet support
$116.67

Part#: 61498100 Qty: 1$116.67

7614980001
Device for L.H. bonnet support -Not for USA, CDN, AUS-
$125.94

Part#: 61498000 Qty: 1$125.94

7614981002
Device for R.H. and L.H. bonnet support -Valid for USA, CDN, AUS-
$116.67

Part#: 61498100 Qty: 2$116.67

8630943001
Engine cover, sound insulation
$756.77

Part#: 63094300 Qty: 1$756.77

9630639001
Rear grill for air exhaust
$400.00

Part#: 63063900 Qty: 1$400.00

10103963801
Cable grommet

Part#: 10396380 Qty: 1

11634350001
Hook

Part#: 63435000 Qty: 1

12630602001
R.H. side grill

Part#: 63060200 Qty: 1

12630603001
L.H. side grill

Part#: 63060300 Qty: 1

13630768001
L.H. front support

Part#: 63076800 Qty: 1

13630767001
R.H. front support

Part#: 63076700 Qty: 1

14630766001
L.H. rear support

Part#: 63076600 Qty: 1

14630765001
R.H. rear support

Part#: 63076500 Qty: 1

15615398001
Magnetic switch

Part#: 61539800 Qty: 1

16616473002
Lamp
$83.73

Part#: 61647300 Qty: 2$83.73

17602774071
Lock
$168.00

Part#: 60277407 Qty: 1$168.00

18152125802
Screw

Part#: 15212580 Qty: 2

19126406246
Washer
$0.39

Part#: 12640624 Qty: 6$0.39

20125742112
Nut

Part#: 12574211 Qty: 2

21615299001
Fuel filler lid gasket
$1.92

Part#: 61529900 Qty: 1$1.92

22634822001
Ferrari nameplate
$129.55

Part#: 63482200 Qty: 1$129.55

23630800001
Cable for opening bonnet
$105.00

Part#: 63080000 Qty: 1$105.00

24630801001
Emergency cable

Part#: 63080100 Qty: 1

25614994002
Pad seat
$8.96

Part#: 61499400 Qty: 2$8.96

26614995002
Pad

Part#: 61499500 Qty: 2

27630675001
Catch

Part#: 63067500 Qty: 1

28NLA1
512 TR nameplate

Part#: NLA Qty: 1

29615009001
Gasket

Part#: 61500900 Qty: 1

301
Fuel filler lid lock -Not as spare part- -With locks set 61545300 and 61545400-

Part#: Qty: 1

31615002001
Fuel filler lid

Part#: 61500200 Qty: 1

32954011520
Blank key
$12.50

Part#: 95401152$12.50

33615003001
Fuel filler lid hinge
$19.45

Part#: 61500300 Qty: 1$19.45

34615007001
Pin

Part#: 61500700 Qty: 1

35615006001
Spring
$5.43

Part#: 61500600 Qty: 1$5.43

36615012001
Switch for rear door
$53.37

Part#: 61501200 Qty: 1$53.37

37103961801
Cable grommet

Part#: 10396180 Qty: 1

38627815001
Clamp
$3.26

Part#: 62781500 Qty: 1$3.26

39627808001
Clamp
$0.73

Part#: 62780800 Qty: 1$0.73

40634490001
Switch cap

Part#: 63449000 Qty: 1

41635487001
Bonnet lock cover -Not for GD-

Part#: 63548700 Qty: 1

41636043001
Bonnet lock cover -Valid for GD-

Part#: 63604300 Qty: 1

42138321011
Nut
$0.55

Part#: 13832101 Qty: 1$0.55

43627640002
Round head rivet
$0.95

Part#: 62764000 Qty: 2$0.95

44634565001
Washer

Part#: 63456500 Qty: 1

45630942002
Cable protection sheath

Part#: 63094200 Qty: 2

46630941002
Cable protection pipe
$1.95

Part#: 63094100 Qty: 2$1.95

47615015001
Testarossa nameplate -Valid till car Ass. Nr. 11516-
$376.80

Part#: 61501500 Qty: 1$376.80

48140840113
Nut -Valid till car Ass. Nr. 11516-
$0.03

Part#: 14084011 Qty: 3$0.03

49627648001
Drilled screw

Part#: 62764800 Qty: 1

50140842111
Nut
$0.66

Part#: 14084211 Qty: 1$0.66

51161023112
Nut
$1.95

Part#: 16102311 Qty: 2$1.95

52147788182
Screw

Part#: 14778818 Qty: 2

53125418742
Spring washer

Part#: 12541874 Qty: 2

54636606001
Covering -Not for GD-

Part#: 63660600 Qty: 1

54636641001
Covering -Valid for GD-

Part#: 63664100 Qty: 1

55607586002
Nut
$1.55

Part#: 60758600 Qty: 2$1.55

56630693002
Cross member

Part#: 63069300 Qty: 2

57111940774
Conic washer

Part#: 11194077 Qty: 4
