Ferrari Philadelphia Parts

Table 46

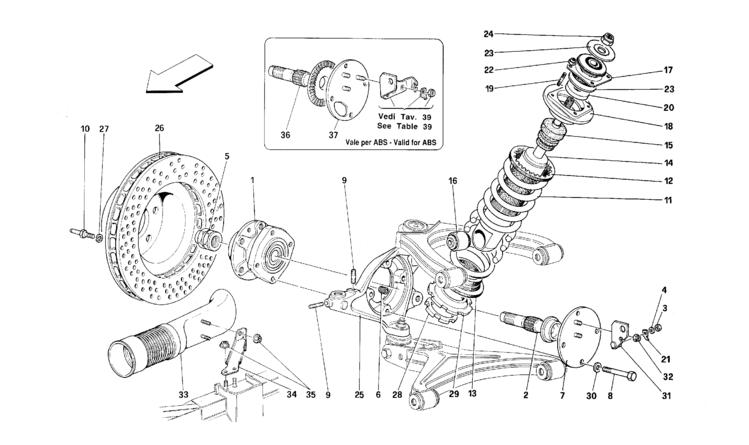

Table 46 - Front suspension - Shock absorber and brake disc

Ref.Part#Qty.DescriptionPrice
11428822
Bearing with hub
$2705.00

Part#: 142882 Qty: 2$2705.00

21471692
Pin

Part#: 147169 Qty: 2

3158964702
Nut
$2.27

Part#: 15896470 Qty: 2$2.27

41499512
Washer

Part#: 149951 Qty: 2

52091842
Nut
$96.50

Part#: 209184 Qty: 2$96.50

61337714
Insert
$5.17

Part#: 133771 Qty: 4$5.17

71493361
R.H. cover

Part#: 149336 Qty: 1

71493371
L.H. cover

Part#: 149337 Qty: 1

81399738
Screw

Part#: 139973 Qty: 8

9110009244
Stud

Part#: 11000924 Qty: 4

101043704
Pin -Not as spare parts now- -Replaced by 16043424-
$1.50

Part#: 104370 Qty: 4$1.50

10160434244
Pin
$1.25

Part#: 16043424 Qty: 4$1.25

111518812
Suspension spring -Valid for only up to car Ass. Nr. 9115-

Part#: 151881 Qty: 2

111518812
Suspension spring -Valid for EU on car Ass. Nr. 9116 and for USA, CDN, J, that car Ass. Nr. 12601-

Part#: 151881 Qty: 2

121135822
Upper spacer -Valid for spring dis. Nr. 148786-
$152.90

Part#: 113582 Qty: 2$152.90

121509282
Upper spacer -Valid for spring dis. Nr. 151881-

Part#: 150928 Qty: 2

131135812
Lower spacer
$19.75

Part#: 113581 Qty: 2$19.75

141485292
Shock absorber

Part#: 148529 Qty: 2

151498572
Rubber pad
$175.43

Part#: 149857 Qty: 2$175.43

161305162
Estendblock
$61.27

Part#: 130516 Qty: 2$61.27

171148122
Hyperblock with 4 - fix. holes
$318.11

Part#: 114812 Qty: 2$318.11

171515482
Hyperblock with 3 - fix. holes

Part#: 151548 Qty: 2

181515472
Cup to ret. spring
$59.75

Part#: 151547 Qty: 2$59.75

19135433246
Stud
$3.93

Part#: 13543324 Qty: 6$3.93

201498582
Spacer

Part#: 149858 Qty: 2

211434052
Faston tongue

Part#: 143405 Qty: 2

22161041256
Nut

Part#: 16104125 Qty: 6

231497184
Washer

Part#: 149718 Qty: 4

241028252
Nut
$1.50

Part#: 102825 Qty: 2$1.50

251498911
R.H. stub axle, complete

Part#: 149891 Qty: 1

251498921
L.H. stub axle, complete

Part#: 149892 Qty: 1

261537302
Brake disc
$1360.39

Part#: 153730 Qty: 2$1360.39

271274964
Washer
$0.50

Part#: 127496 Qty: 4$0.50

281418602
Ring nut
$282.35

Part#: 141860 Qty: 2$282.35

291418592
Plate

Part#: 141859 Qty: 2

30126014748
Washer
$0.25

Part#: 12601474 Qty: 8$0.25

311396921
R.H. brake pipe support

Part#: 139692 Qty: 1

311396931
L.H. brake pipe support

Part#: 139693 Qty: 1

32125754114
Nut

Part#: 12575411 Qty: 4

331493422
Air conveyor complete

Part#: 149342 Qty: 2

341494182
Bracket

Part#: 149418 Qty: 2

35140584118
Nut

Part#: 14058411 Qty: 8

361511732
Pin

Part#: 151173 Qty: 2

371511811
R.H. cover

Part#: 151181 Qty: 1

371511821
L.H. cover

Part#: 151182 Qty: 1
