Ferrari Philadelphia Parts

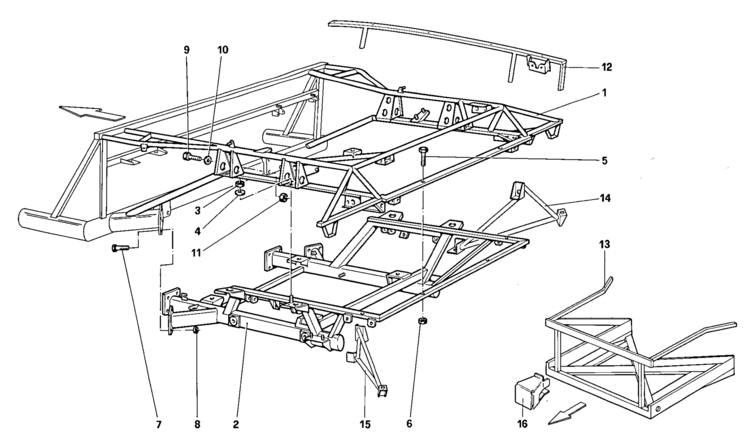

Table 104
Ref.Part#Qty.DescriptionPrice
11308411
Rear frame (For B1 and GDI)

Part#: 130841 Qty: 1

1432151
Rear frame (For CAT. - CH - GDE)

Part#: 143215 Qty: 1

1279121
Rear frame (For US)

Part#: 127912 Qty: 1

1317041
Rear frame (For CDN)

Part#: 131704 Qty: 1

21245761
Removable frame (For B1)

Part#: 124576 Qty: 1

1325101
Removable frame (For CAT. - BE and CH)

Part#: 132510 Qty: 1

1279111
Removable frame (For US)

Part#: 127911 Qty: 1

1245781
Removable frame (For GDI)

Part#: 124578 Qty: 1

1441561
Removable frame (For GDE)

Part#: 144156 Qty: 1

1317031
Removable frame (For CDN)

Part#: 131703 Qty: 1

3125745218
Nut
$2.00

Part#: 12574521 Qty: 8$2.00

4107305148
Washer
$0.89

Part#: 10730514 Qty: 8$0.89

5155412114
Screw

Part#: 15541211 Qty: 4

6161050114
Selflocking nut

Part#: 16105011 Qty: 4

7155406218
Screw
$2.30

Part#: 15540621 Qty: 8$2.30

81635348
Selflocking nut
$1.39

Part#: 163534 Qty: 8$1.39

9155405218
Screw
$0.35

Part#: 15540521 Qty: 8$0.35

10126469218
Washer
$0.95

Part#: 12646921 Qty: 8$0.95

111635348
Nut
$1.39

Part#: 163534 Qty: 8$1.39

12615433001
Rear mudguard support (RH)

Part#: 61543300 Qty: 1

615434001
Rear mudguard support (LH)

Part#: 61543400 Qty: 1

131312391
Front frame (Not for CDN)

Part#: 131239 Qty: 1

1316651
Front frame (For CDN)

Part#: 131665 Qty: 1

141309621
RH pad support (For CDN)

Part#: 130962 Qty: 1

151309631
LH pad support (For CDN)

Part#: 130963 Qty: 1

16615656001
Bracket for RH pad (For CDN)

Part#: 61565600 Qty: 1

615657001
Bracket for LH pad (For CDN)

Part#: 61565700 Qty: 1
