Ferrari Philadelphia Parts

Table 125

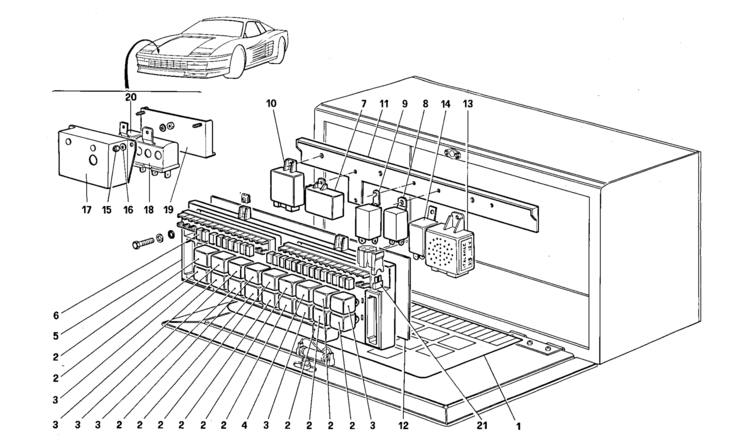

Table 125 - Valves and relays

Ref.Part#Qty.DescriptionPrice
11235751
Indication sheet (For control unit No. 129108)

Part#: 123575 Qty: 1

1337541
Indication sheet (For control unit No. 132204)

Part#: 133754 Qty: 1

24013000712
Relay
$32.00

Part#: 40130007 Qty: 12$32.00

3401301066
Relay
$29.85

Part#: 40130106 Qty: 6$29.85

4402839051
Relay
$97.25

Part#: 40283905 Qty: 1$97.25

51291081
Control unit, assy.
$4401.41

Part#: 129108 Qty: 1$4401.41

1322041
Control unit, assy. (Only for GB - for car with Dim-Dip device)

Part#: 132204 Qty: 1

61252436
20A Fuse

Part#: 125243 Qty: 6

12524211
15A Fuse

Part#: 125242 Qty: 11

1252413
10A Fuse

Part#: 125241 Qty: 3

1252404
7,5A Fuse

Part#: 125240 Qty: 4

1155491
Bridge (For control unit No. 132204)

Part#: 115549 Qty: 1

7610794001
A.C. control unit
$525.00

Part#: 61079400 Qty: 1$525.00

81247171
Tachometric relay
$696.79

Part#: 124717 Qty: 1$696.79

9610480001
Intermittence for direction and hazard -for J - CH (Not for US)
$45.00

Part#: 61048000 Qty: 1$45.00

61651800
Intermittence for direction and hazard (For US version)
$165.72

Part#: 61651800$165.72

10119660
Wiper intermittence
$54.52

Part#: 119660$54.52

124092
Control unit fixing plate

Part#: 124092

12116055
Rear cover

Part#: 116055

1361830700
Seal belts control unit -For SA - CDN
$125.58

Part#: 61830700$125.58

133198
Seat belts control unit -for US- -Until car no. 76572-

Part#: 133198

137667
Seat belts control unit -for US- -Until car no. 76573-
$105.00

Part#: 137667$105.00

14131486
Buzzer for lower oil pressure and exhaust height temperature (for US - CH)

Part#: 131486

61914500
Brake warning light control relay -Not for US - SA - J

Part#: 61914500

62346400
Dim-Dip. device, assy. (For GB until car)

Part#: 62346400

15169180
Nut -For GB car with Dim-Dip device
$0.25

Part#: 169180$0.25

1610519301
Washer -For GB car with Dim-Dip device
$0.35

Part#: 10519301$0.35

1762342800
Protection cover -For GB car with Dim-Dip device

Part#: 62342800

1862342000
Resistor -For GB car with Dim-Dip device

Part#: 62342000

19132128
Support -For GB car with Dim-Dip device

Part#: 132128

2062342100
Relay -For GB car with Dim-Dip device

Part#: 62342100

21131942
3A fuse for battery-alternator cable protection

Part#: 131942
