Ferrari Philadelphia Parts

Table 39

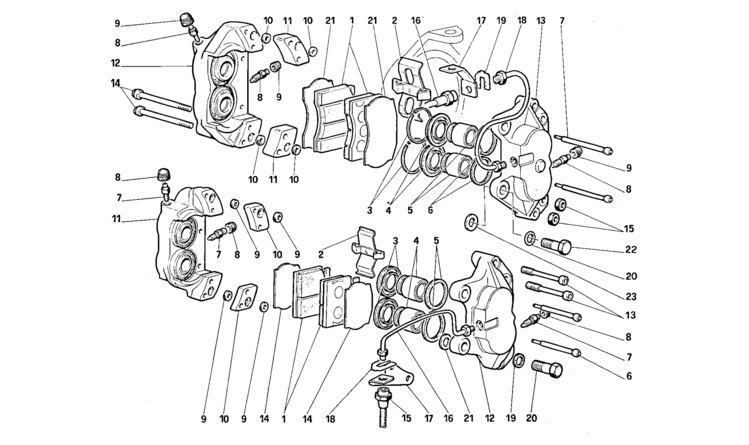

Table 39 - Calipers for front and rear brakes

Ref.Part#Qty.DescriptionPrice
Front brake calipers

Part#:

1365961
R H. brake caliper - With Amianthus
$2498.48

Part#: 136596 Qty: 1$2498.48

1365971
L.H. brake caliper - With Amianthus
$2498.48

Part#: 136597 Qty: 1$2498.48

1365961
R.H. brake caliper - Without Amianthus
$2498.48

Part#: 136596 Qty: 1$2498.48

1365971
LH brake caliper Without Amianthus
$2498.48

Part#: 136597 Qty: 1$2498.48

11348484
Brake pad - With Amianthus
$192.00

Part#: 134848 Qty: 4$192.00

11348484
Brake pad - Without Amianthus
$192.00

Part#: 134848 Qty: 4$192.00

2ATE2
Pad pressure spring

Part#: ATE Qty: 2

956915311
Front caliper overhaul kit
$135.00

Part#: 95691531 Qty: 1$135.00

3ATE8
Stop ring with kit no. 95691531

Part#: ATE Qty: 8

4ATE8
Brake cylinder protection ring With kit no. 95691531

Part#: ATE Qty: 8

5ATE8
Brake cylinder

Part#: ATE Qty: 8

6ATE8
Seal ring on cylinder With kit no, 95691531

Part#: ATE Qty: 8

7ATE4
Pin for pads with kit no. 95691531

Part#: ATE Qty: 4

8ATE6
Bleeder

Part#: ATE Qty: 6

9ATE6
Bleeder cap

Part#: ATE Qty: 6

10ATE8
Seal ring on spacer

Part#: ATE Qty: 8

11ATE4
Spacer

Part#: ATE Qty: 4

12ATE8
Brake cylinder outer body

Part#: ATE Qty: 8

13ATE2
Brake cylinder inner body

Part#: ATE Qty: 2

14ATE4
Brake cylinder body securing bolt

Part#: ATE Qty: 4

15ATE4
Nut

Part#: ATE Qty: 4

161163734
Front calipers connecting hose After exhaustion use no. 137313

Part#: 116373 Qty: 4

171163962
Bracket fixing hoses to stub axle

Part#: 116396 Qty: 2

181436994
Pipe from caliper to hose

Part#: 143699 Qty: 4

191163744
Clamp
$3.92

Part#: 116374 Qty: 4$3.92

201012554
Washer

Part#: 101255 Qty: 4

211159624
Plate
$48.07

Part#: 115962 Qty: 4$48.07

221012484
Caliper securing bolt
$103.04

Part#: 101248 Qty: 4$103.04

231562662
Shim - 1 mm. thick If required
$2.10

Part#: 156266 Qty: 2$2.10

1562604
Shim - 0.2 mm. thick If required
$3.38

Part#: 156260 Qty: 4$3.38

1089194
Shim - 0.3 mm. thick If required

Part#: 108919 Qty: 4

1562624
Shim - 0.5 mm. thick If required
$2.10

Part#: 156262 Qty: 4$2.10

1562634
Shim 0.6 mm. thick If required
$3.10

Part#: 156263 Qty: 4$3.10

1562644
Shim - 0.7 mm. thick If required
$1.50

Part#: 156264 Qty: 4$1.50

1562654
Shim - 0.8 mm. thick If required
$2.95

Part#: 156265 Qty: 4$2.95

Rear brake calipers

Part#:

1365981
L.H. brake caliper - With Amianthus

Part#: 136598 Qty: 1

1365991
R.H. brake caliper - With Amianthus
$1025.00

Part#: 136599 Qty: 1$1025.00

1365931
L.H. brake caliper - Without Amianthus

Part#: 136593 Qty: 1

1365991
R H. brake caliper - Without Amianthus
$1025.00

Part#: 136599 Qty: 1$1025.00

1108076A4
Brake pad - With Amianthus

Part#: 108076A Qty: 4

1108076A4
Brake pad - Without Amianthus

Part#: 108076A Qty: 4

2ATE2
Pad pressure spring

Part#: ATE Qty: 2

956915321
Rear caliper overhaul kit
$148.50

Part#: 95691532 Qty: 1$148.50

3ATE8
Brake cylinder protection ring With kit no. 95691532

Part#: ATE Qty: 8

4ATE8
Brake cylinder

Part#: ATE Qty: 8

5ATE8
Seal ring on cylinder With kit no. 95691532

Part#: ATE Qty: 8

6ATE4
Pin for pads with kit no. 95691532

Part#: ATE Qty: 4

7ATE6
Bleeder

Part#: ATE Qty: 6

8ATE6
Bleeder cap

Part#: ATE Qty: 6

9ATE8
Seal ring on spacer

Part#: ATE Qty: 8

10ATE4
Spacer

Part#: ATE Qty: 4

11ATE2
Brake cylinder outer body

Part#: ATE Qty: 2

12ATE2
Brake cylinder inner body

Part#: ATE Qty: 2

13ATE4
Brake cylinder body securing bolt

Part#: ATE Qty: 4

141050544
Plate
$23.63

Part#: 105054 Qty: 4$23.63

152717114
Rear calipers connecting hose
$54.49

Part#: 271711 Qty: 4$54.49

161437051
Pipe from caliper to R.H. hose

Part#: 143705 Qty: 1

1437061
Pipe from caliper lo L.H. hose
$237.53

Part#: 143706 Qty: 1$237.53

171257051
Bracket on R.H. hub holder

Part#: 125705 Qty: 1

1257061
Bracket on L.H. hub holder

Part#: 125706 Qty: 1

181163744
Hose clamp
$3.92

Part#: 116374 Qty: 4$3.92

191012554
Washer

Part#: 101255 Qty: 4

201012644
Caliper securing bolt After exhaustion use no. 144850
$99.39

Part#: 101264 Qty: 4$99.39

211562604
Shim - 0.2 mm. thick If required
$3.38

Part#: 156260 Qty: 4$3.38

1562614
Shim - 0.3 mm. thick If required
$2.95

Part#: 156261 Qty: 4$2.95

1562624
Shim - 0.5 mm. thick 11 required
$2.10

Part#: 156262 Qty: 4$2.10

1562634
Shim - 0.6 mm. thick If required
$3.10

Part#: 156263 Qty: 4$3.10

1562644
Shim - 0.7 mm. thick If required
$1.50

Part#: 156264 Qty: 4$1.50

1562654
Shim 0,8 mm. thick If required
$2.95

Part#: 156265 Qty: 4$2.95

1562664
Shim -1 mm. thick If required
$2.10

Part#: 156266 Qty: 4$2.10
