Table 9

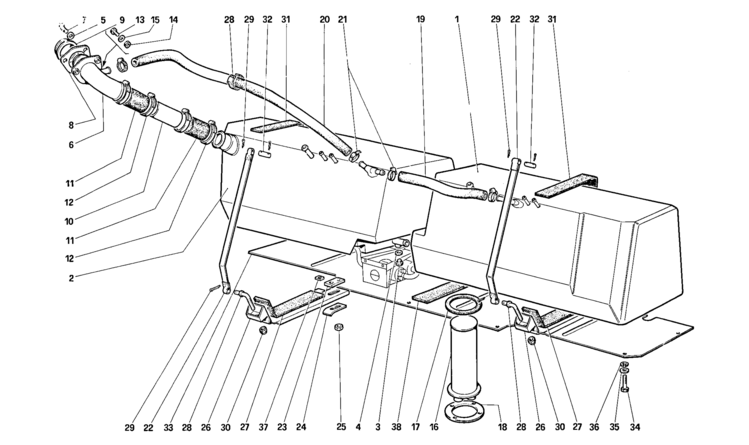

Table 9 - Fuel tanks - For US - SA and CH88 Version

Ref.Part#Qty.DescriptionPrice
11258481
Right fuel tank

Part#: 125848 Qty: 1

21238721
Left fuel tank

Part#: 123872 Qty: 1

3103007711
Fuel drain plug
$50.57

Part#: 10300771 Qty: 1$50.57

4102786501
Gasket
$1.49

Part#: 10278650 Qty: 1$1.49

5126012713
Washer

Part#: 12601271 Qty: 3

61238961
Fuel filler For SA use no. 127018

Part#: 123896 Qty: 1

7140645113
Screw

Part#: 14064511 Qty: 3

81238971
Gasket

Part#: 123897 Qty: 1

91134011
Filler cap After exhaustion use no. 142790
$59.50

Part#: 113401 Qty: 1$59.50

101227951
Pipe
$26.43

Part#: 122795 Qty: 1$26.43

111239952
Sleeve

Part#: 123995 Qty: 2

12121747904
Clamp
$3.55

Part#: 12174790 Qty: 4$3.55

13109022211
Screw
$3.25

Part#: 10902221 Qty: 1$3.25

14125742111
Nut

Part#: 12574211 Qty: 1

15126466011
Washer

Part#: 12646601 Qty: 1

161448491
Control for fuel level gauge Until car no. 67545
$1010.21

Part#: 144849 Qty: 1$1010.21

161448491
Control for fuel level gauge From car n. 67547
$1010.21

Part#: 144849 Qty: 1$1010.21

171167921
Gasket - With part no. 122621
$20.32

Part#: 116792 Qty: 1$20.32

171548021
Gasket - With part no. 132134
$163.28

Part#: 154802 Qty: 1$163.28

181214351
Gauge securing ring nut
$127.80

Part#: 121435 Qty: 1$127.80

191192811
Breather hose
$49.50

Part#: 119281 Qty: 1$49.50

201204691
Breather hose

Part#: 120469 Qty: 1

21121795904
Clamp

Part#: 12179590 Qty: 4

221227974
Tank securing strap

Part#: 122797 Qty: 4

231238674
Spacer

Part#: 123867 Qty: 4

241157344
Small plate

Part#: 115734 Qty: 4

25125742118
Sell-locking nut

Part#: 12574211 Qty: 8

261238664
Tank supporting bracket

Part#: 123866 Qty: 4

271250354
Shim

Part#: 125035 Qty: 4

281275294
Tie rod

Part#: 127529 Qty: 4

291079640112
Split pin

Part#: 10796401 Qty: 12

30161041214
Sell-locking nut

Part#: 16104121 Qty: 4

311250368
Shim

Part#: 125036 Qty: 8

321034474
Pin

Part#: 103447 Qty: 4

33122800t
Tank protection plate Until exhaustion

Part#: 122800 Qty: t

1380331
LHD protection plate -After exhaustion n. 122800

Part#: 138033 Qty: 1

1380821
Central protection plate -After exhaustion n. 122800

Part#: 138082 Qty: 1

1380341
RHD protection plate -After exhaustion n. 122800

Part#: 138034 Qty: 1

341090212111
Screw

Part#: 10902121 Qty: 11

351264370111
Flat washer

Part#: 12643701 Qty: 11

3610685011
Spring washer
$0.65

Part#: 106850 Qty: 11$0.65

37607586004
Caged nut
$1.55

Part#: 60758600 Qty: 4$1.55

381250374
Shim

Part#: 125037 Qty: 4
