Ferrari Philadelphia Parts

Table 33

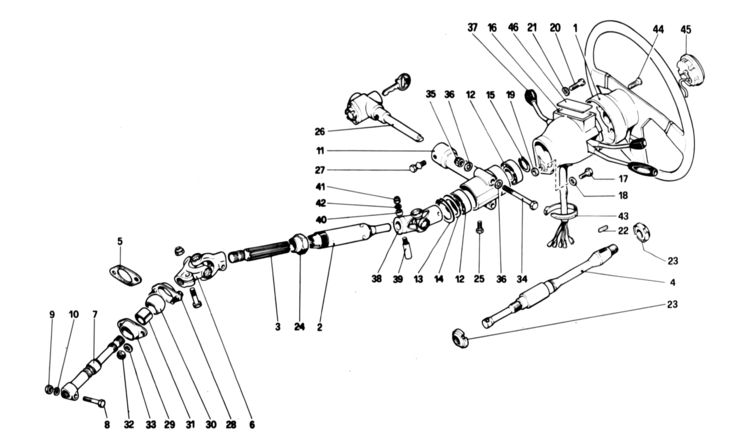

Table 33 - Steering column

Ref.Part#Qty.DescriptionPrice
11365491
Steering wheel

Part#: 136549 Qty: 1

21087351
Guide tube On exhaustion, use 117379

Part#: 108735 Qty: 1

31087371
Steering shaft

Part#: 108737 Qty: 1

41084131
Upper shaft
$427.35

Part#: 108413 Qty: 1$427.35

51091731
Gasket

Part#: 109173 Qty: 1

61083621
Universal joint Option n. 103343

Part#: 108362 Qty: 1

71073081
Pinion extension
$699.30

Part#: 107308 Qty: 1$699.30

81033711
Bolt

Part#: 103371 Qty: 1

91033731
Nut

Part#: 103373 Qty: 1

10103372
Washer

Part#: 103372

11106611
Support, steering column and anti-theft device

Part#: 106611

121011042
Bearing
$18.00

Part#: 101104 Qty: 2$18.00

13110605761
Seeger ring
$2.50

Part#: 11060576 Qty: 1$2.50

141011011
Shim, thickness 0,5 mm. (possible fitting)

Part#: 101101 Qty: 1

1074881
Shim, thickness 0,4 mm.

Part#: 107488 Qty: 1

1074891
Shim, thickness 0,3 mm.

Part#: 107489 Qty: 1

1074901
Shim, thickness 0,2 mm.

Part#: 107490 Qty: 1

15110673761
Seeger ring
$1.00

Part#: 11067376 Qty: 1$1.00

161204291
Commutator housing

Part#: 120429 Qty: 1

17109022211
Bolt
$3.25

Part#: 10902221 Qty: 1$3.25

18126012711
Washer

Part#: 12601271 Qty: 1

19126397011
Spacer

Part#: 12639701 Qty: 1

20103899012
Screw

Part#: 10389901 Qty: 2

21125441712
Spring washer

Part#: 12544171 Qty: 2

221011061
Key
$1.00

Part#: 101106 Qty: 1$1.00

231066102
Ring nut
$61.12

Part#: 106610 Qty: 2$61.12

241068701
Adjust nut
$22.37

Part#: 106870 Qty: 1$22.37

25109794211
Bolt

Part#: 10979421 Qty: 1

261066141
Anti-theft device

Part#: 106614 Qty: 1

1002851
Anti theft device protection

Part#: 100285 Qty: 1

271066151
Bolt

Part#: 106615 Qty: 1

281056671
Flange for upper ball joint
$47.24

Part#: 105667 Qty: 1$47.24

291032921
Flange for lower ball joint
$21.22

Part#: 103292 Qty: 1$21.22

301032971
Ball joint
$76.55

Part#: 103297 Qty: 1$76.55

311033701
Bushing
$25.16

Part#: 103370 Qty: 1$25.16

32161041212
Nut

Part#: 16104121 Qty: 2

33105196212
Washer

Part#: 10519621 Qty: 2

341035762
Bolt

Part#: 103576 Qty: 2

35161044212
Nut

Part#: 16104421 Qty: 2

36105196214
Washer

Part#: 10519621 Qty: 4

371167801
Mainswitch
$4490.00

Part#: 116780 Qty: 1$4490.00

381125721
Universal joint

Part#: 112572 Qty: 1

391125732
Pin
$69.25

Part#: 112573 Qty: 2$69.25

401125712
Spacer

Part#: 112571 Qty: 2

41125742212
Nut
$2.02

Part#: 12574221 Qty: 2$2.02

42105194012
Washer

Part#: 10519401 Qty: 2

431037551
Strap

Part#: 103755 Qty: 1

441111896
Screw
$5.88

Part#: 111189 Qty: 6$5.88

451010711
Horn button and retainer

Part#: 101071 Qty: 1

461221051
Car identification plate For GTS no 122110

Part#: 122105 Qty: 1
