Ferrari Philadelphia Parts

Table 132

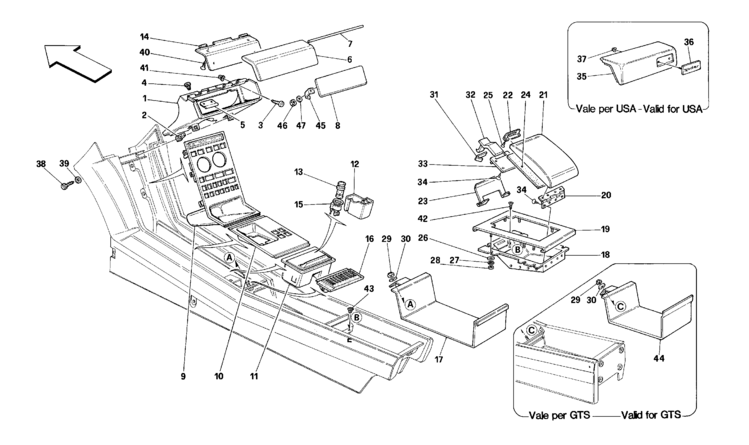

Table 132 - TUNNEL - ACCESSORIES

Ref.Part#Qty.DescriptionPrice
1621471001
RADIO CASING
$74.00

Part#: 62147100 Qty: 1$74.00

2142027822
BLOCK
$0.25

Part#: 14202782 Qty: 2$0.25

3156883752
SCREW

Part#: 15688375 Qty: 2

41336271
RUBBER PLUG

Part#: 133627 Qty: 1

5621479001
SPRING FOR DOOR
$8.20

Part#: 62147900 Qty: 1$8.20

6621474..1
COVERED CAR RADIO OUTER SET HOLDER -Not for USA-

Part#: 621474.. Qty: 1

6621477..1
DOOR UPHOLSTERY -Not for USA-

Part#: 621477.. Qty: 1

7621478001
PIN FOR DOOR

Part#: 62147800 Qty: 1

8629937001
COVERED INNER GLOVE BOX PLATE
$58.34

Part#: 62993700 Qty: 1$58.34

91463751
CONSOLE PLATE -Not for Spider-
$559.60

Part#: 146375 Qty: 1$559.60

91571461
CONSOLE PLATE -Valid for Spider-

Part#: 157146 Qty: 1

101471111
TUNNEL PLATE -Not for GD-

Part#: 147111 Qty: 1

101471121
TUNNEL PLATE -Valid for GD-
$264.56

Part#: 147112 Qty: 1$264.56

11621466001
ASH TRAY -Only part. 12 included-
$256.42

Part#: 62146600 Qty: 1$256.42

121
ASHTRAY PAN -Not as spare part- -With the assembly 62146600-

Part#: Qty: 1

13611075001
CIGAR LIGHTER

Part#: 61107500 Qty: 1

14621475001
CAR RADIO GLOVE BOX INNER DOOR -Not for USA-

Part#: 62147500 Qty: 1

15611076001
CIGAR LIGHTER BODY

Part#: 61107600 Qty: 1

16621465001
PLATE FOR MONEY
$136.62

Part#: 62146500 Qty: 1$136.62

17633222..1
COVERED GLOVE BOX BOTTOM

Part#: 633222.. Qty: 1

17633219..1
UPHOLSTERY

Part#: 633219.. Qty: 1

18610590001
CASSETTE BOX -Not for GTS-

Part#: 61059000 Qty: 1

19636288..1
SUPPORT FOR CASSETTE BOX -Not for GTS-

Part#: 636288.. Qty: 1

20610592001
HINGE -Not for GTS-

Part#: 61059200 Qty: 1

21610594..1
CASSETTE BOX WITH MOULDING -Not for GTS-

Part#: 610594.. Qty: 1

21610595..1
UPHOLSTERY -Not for GTS-

Part#: 610595.. Qty: 1

22610599001
BUTTON MOULDING -Not for GTS-

Part#: 61059900 Qty: 1

23610591004
CASSETTE BOX SHIELD -Not for GTS-

Part#: 61059100 Qty: 4

24610600001
INNER DOOR UPHOLSTERY -Not for GTS-

Part#: 61060000 Qty: 1

25159135082
SCREW -Not for GTS-

Part#: 15913508 Qty: 2

26135774118
WASHER -Not for GTS-

Part#: 13577411 Qty: 8

27106151798
WASHER -Not for GTS-

Part#: 10615179 Qty: 8

28161017118
NUT -Not for GTS-
$0.75

Part#: 16101711 Qty: 8$0.75

29125778111
NUT

Part#: 12577811 Qty: 1

30126381011
WASHER

Part#: 12638101 Qty: 1

31610597001
SPRING -Not for GTS-

Part#: 61059700 Qty: 1

32610596001
PUSH BUTTON -Not for GTS-
$6.71

Part#: 61059600 Qty: 1$6.71

33610598001
COVER FOR SPRING -Not for GTS-

Part#: 61059800 Qty: 1

341591460812
SCREW -Not for GTS-

Part#: 15914608 Qty: 12

35622260..1
COVERED CAR RADIO OUTER SET HOLDER -Valid for USA-

Part#: 622260.. Qty: 1

35622261..1
DOOR UPHOLSTERY -Valid for USA-

Part#: 622261.. Qty: 1

36639216001
Spider NAMEPLATE -Valid for USA-

Part#: 63921600 Qty: 1

37603245062
CLIP -Valid for USA-
$2.32

Part#: 60324506 Qty: 2$2.32

38156883752
SCREW

Part#: 15688375 Qty: 2

39126381772
WASHER

Part#: 12638177 Qty: 2

40156697064
SCREW

Part#: 15669706 Qty: 4

41141159802
BLOCK
$0.11

Part#: 14115980 Qty: 2$0.11

42156412782
SCREW -Not for GTS-

Part#: 15641278 Qty: 2

43141155802
BLOCK
$1.00

Part#: 14115580 Qty: 2$1.00

44633396..1
COVERED GLOVE BOX BOTTOM -Valid for GTS-

Part#: 633396.. Qty: 1

44633221..1
UPHOLSTERY -Valid for GTS-

Part#: 633221.. Qty: 1

45629934002
CLIP

Part#: 62993400 Qty: 2

46161017112
NUT
$0.75

Part#: 16101711 Qty: 2$0.75

47106151792
WASHER

Part#: 10615179 Qty: 2
