Ferrari Philadelphia Parts

Table 107

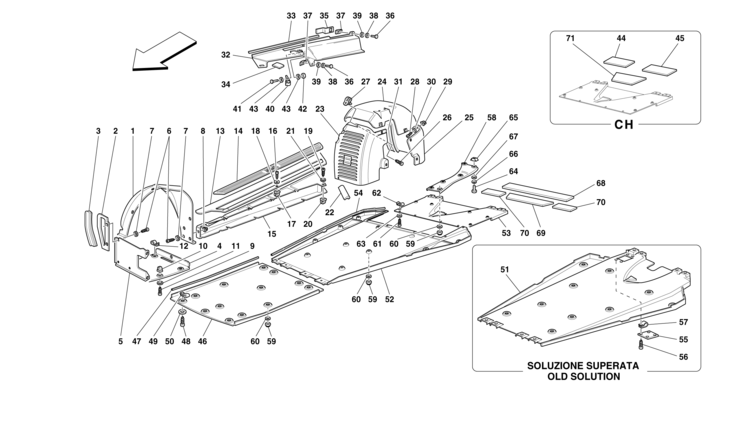

Table 107 - BODY - SHIELDS AND WHEELHOUSES

Ref.Part#Qty.DescriptionPrice
1620955001
R.H. FRONT WHEELHOUSE GRAVEL GUARD

Part#: 62095500 Qty: 1

1620956001
L.H. FRONT WHEELHOUSE GRAVEL GUARD
$587.65

Part#: 62095600 Qty: 1$587.65

2641107001
R.H. FRONT LATERAL GRAVEL GUARD

Part#: 64110700 Qty: 1

2641108001
L.H. FRONT LATERAL GRAVEL GUARD

Part#: 64110800 Qty: 1

3633932002
GASKET
$15.74

Part#: 63393200 Qty: 2$15.74

4651427001
R.H. LOWER GUARD FOR UNDERBODY -Valid till stock exhaustion-
$134.06

Part#: 65142700 Qty: 1$134.06

4651427001
R.H. LOWER GUARD FOR UNDERBODY -Valid after stock exhaustion of 64106900-
$134.06

Part#: 65142700 Qty: 1$134.06

4651428001
L.H. LOWER GUARD FOR UNDERBODY -Valid till stock exhaustion-
$131.42

Part#: 65142800 Qty: 1$131.42

4651428001
L.H. LOWER GUARD FOR UNDERBODY -Valid after stock exhaustion of 64107000-
$131.42

Part#: 65142800 Qty: 1$131.42

5642429001
R.H. LOWER FRONT GRAVEL GUARD

Part#: 64242900 Qty: 1

5642430001
L.H. LOWER FRONT GRAVEL GUARD

Part#: 64243000 Qty: 1

61590397814
SCREW

Part#: 15903978 Qty: 14

71263817714
WASHER

Part#: 12638177 Qty: 14

81421548014
BLOCK
$1.00

Part#: 14215480 Qty: 14$1.00

91564417810
SCREW

Part#: 15644178 Qty: 10

10141158854
BLOCK

Part#: 14115885 Qty: 4

116071190010
WASHER
$0.92

Part#: 60711900 Qty: 10$0.92

12627676006
CLIP

Part#: 62767600 Qty: 6

13641192001
R.H. KICK PLATE
$560.80

Part#: 64119200 Qty: 1$560.80

13641193001
L.H. KICK PLATE
$560.80

Part#: 64119300 Qty: 1$560.80

14621721002
KICK PLATE RUBBER
$238.02

Part#: 62172100 Qty: 2$238.02

15641011101
COVERING FOR R.H. SIDE MEMBER
$980.97

Part#: 64101110 Qty: 1$980.97

15641012101
COVERING FOR L.H. SIDE MEMBER
$1030.64

Part#: 64101210 Qty: 1$1030.64

16159149776
SCREW
$2.10

Part#: 15914977 Qty: 6$2.10

17141155806
BLOCK
$1.00

Part#: 14115580 Qty: 6$1.00

18126428786
WASHER
$0.17

Part#: 12642878 Qty: 6$0.17

191568827820
SCREW

Part#: 15688278 Qty: 20

201420358720
BLOCK

Part#: 14203587 Qty: 20

211263817720
WASHER

Part#: 12638177 Qty: 20

22632514001
R.H. REAR GASKET
$236.42

Part#: 63251400 Qty: 1$236.42

22632515001
L.H. REAR GASKET
$236.42

Part#: 63251500 Qty: 1$236.42

23641112001
R.H. REAR WHEELHOUSE -Front side- (Large Type - mm. 380)

Part#: 64111200 Qty: 1

23646478001
R.H. REAR WHEELHOUSE -Front side- (Narrow Type - mm. 350)

Part#: 64647800 Qty: 1

23641113001
L.H. REAR WHEELHOUSE -Front side- (Large Type - mm. 380)

Part#: 64111300 Qty: 1

23646479001
L.H. REAR WHEELHOUSE -Front side- (Narrow Type - mm. 350)

Part#: 64647900 Qty: 1

24633942001
R.H. REAR WHEELHOUSE -Central side- (Large Type - mm. 380)

Part#: 63394200 Qty: 1

24646766001
R.H. REAR WHEELHOUSE -Central side- (Narrow Type - mm. 350)

Part#: 64676600 Qty: 1

24633943001
L.H. REAR WHEELHOUSE -Central side- (Large Type - mm. 380)

Part#: 63394300 Qty: 1

24646767001
L.H. REAR WHEELHOUSE -Central side- (Narrow Type - mm. 350)

Part#: 64676700 Qty: 1

25641105001
R.H. REAR WHEELHOUSE -Rear side- (Large Type - mm. 380)

Part#: 64110500 Qty: 1

25646764001
R.H. REAR WHEELHOUSE -Rear side- (Narrow Type - mm. 350)

Part#: 64676400 Qty: 1

25641106001
L.H. REAR WHEELHOUSE -Rear side- (Large Type - mm. 380)

Part#: 64110600 Qty: 1

25646765001
L.H. REAR WHEELHOUSE -Rear side- (Narrow Type - mm. 350)

Part#: 64676500 Qty: 1

26159039786
SCREW

Part#: 15903978 Qty: 6

27605172006
CLIP
$0.75

Part#: 60517200 Qty: 6$0.75

281568737820
SCREW

Part#: 15687378 Qty: 20

291421548020
BLOCK
$1.00

Part#: 14215480 Qty: 20$1.00

301263817720
WASHER

Part#: 12638177 Qty: 20

31633932002
GASKET
$15.74

Part#: 63393200 Qty: 2$15.74

32645015001
R.H. LATERAL PROTECTION -Not for Spider- -Valid for USA and CH-
$379.29

Part#: 64501500 Qty: 1$379.29

32646279001
R.H. LATERAL PROTECTION -Valid for Spider- -Not for USA and CH-

Part#: 64627900 Qty: 1

32645016001
L.H. LATERAL PROTECTION -Valid for USA and CH-
$151.19

Part#: 64501600 Qty: 1$151.19

32646280001
L.H. LATERAL PROTECTION -Valid for Spider- -Not for USA and CH-

Part#: 64628000 Qty: 1

33645179002
GASKET

Part#: 64517900 Qty: 2

341274032
RUBBER THICKNESS

Part#: 127403 Qty: 2

35643352002
REAR BRACKET

Part#: 64335200 Qty: 2

36143052878
SCREW
$1.75

Part#: 14305287 Qty: 8$1.75

37606591008
NUT WITH CAGE

Part#: 60659100 Qty: 8

381609578
WASHER
$0.95

Part#: 160957 Qty: 8$0.95

39126437778
WASHER

Part#: 12643777 Qty: 8

401317832
CLIP

Part#: 131783 Qty: 2

41109776242
SCREW

Part#: 10977624 Qty: 2

42125741152
NUT

Part#: 12574115 Qty: 2

43126381244
WASHER
$0.29

Part#: 12638124 Qty: 4$0.29

44646413001
UNDER-FLOOR R.H. INSULATION -Valid for CH-

Part#: 64641300 Qty: 1

45646439001
UNDER-FLOOR L.H. INSULATION -Valid for CH-

Part#: 64643900 Qty: 1

46648411001
CENTRAL FRONT UNDER THE BODY SHELL -Valid till stock exhaustion-
$1094.40

Part#: 64841100 Qty: 1$1094.40

46648411001
CENTRAL FRONT UNDER THE BODY SHELL -Valid after stock exhaustion of 64047600-
$1094.40

Part#: 64841100 Qty: 1$1094.40

47643496002
FRONT UNDER THE BODY SHELL GASKET

Part#: 64349600 Qty: 2

48156441783
SCREW

Part#: 15644178 Qty: 3

49627676003
CLIP

Part#: 62767600 Qty: 3

50607119003
WASHER
$0.92

Part#: 60711900 Qty: 3$0.92

511
CENTRAL UNDER-FLOOR -Not for Spider- -Not as spare part- -Replace with 64245000 + 64540500 to assemble together-

Part#: Qty: 1

52642450001
CENTRAL UNDER- FLOOR -Not for Spider- -Valid till Ass. Nr.20939-

Part#: 64245000 Qty: 1

52648412001
CENTRAL UNDER- FLOOR -Not for Spider- -Valid from Ass. Nr.20940-
$2431.78

Part#: 64841200 Qty: 1$2431.78

52645260001
CENTRAL UNDER- FLOOR -Valid for Spider- -Valid till Ass. Nr.20939-

Part#: 64526000 Qty: 1

52648413001
CENTRAL UNDER- FLOOR -Valid for Spider- -Valid from Ass. Nr.20940-
$1265.00

Part#: 64841300 Qty: 1$1265.00

53645405001
REAR UNDER-FLOOR -Not for Spider- -Valid till Ass. Nr.20939-
$455.99

Part#: 64540500 Qty: 1$455.99

53646840001
REAR UNDER-FLOOR -Valid for Spider- -Valid till Ass. Nr.20939- -And for all CH cars-

Part#: 64684000 Qty: 1

53648414001
REAR UNDER-FLOOR -Valid from Ass. Nr.20940-
$550.67

Part#: 64841400 Qty: 1$550.67

54644733002
CENTRAL UNDER-FLOOR GASKET

Part#: 64473300 Qty: 2

55643744001
CENTRAL UNDER-FLOOR DOOR

Part#: 64374400 Qty: 1

56159149774
SCREW
$2.10

Part#: 15914977 Qty: 4$2.10

57618285004
BRACKET FOR SCREW

Part#: 61828500 Qty: 4

58648409001
R.H. REAR AIR EXTRACTOR -Valid till stock exhaustion-
$358.49

Part#: 64840900 Qty: 1$358.49

58648409001
R.H. REAR AIR EXTRACTOR -Valid after stock exhaustion of 64313300-
$358.49

Part#: 64840900 Qty: 1$358.49

58648410001
L.H. REAR AIR EXTRACTOR -Valid till stock exhaustion-
$358.00

Part#: 64841000 Qty: 1$358.00

58648410001
L.H. REAR AIR EXTRACTOR -Valid after stock exhaustion of 64313400-
$358.00

Part#: 64841000 Qty: 1$358.00

596444990036
NUT
$6.47

Part#: 64449900 Qty: 36$6.47

601264062436
WASHER
$0.39

Part#: 12640624 Qty: 36$0.39

61156441788
SCREW

Part#: 15644178 Qty: 8

62627676008
CLIP

Part#: 62767600 Qty: 8

63607119008
WASHER
$0.92

Part#: 60711900 Qty: 8$0.92

64109021804
SCREW
$0.35

Part#: 10902180 Qty: 4$0.35

65606591004
NUT -Valid till Ass. Nr.20939 except CDN -

Part#: 60659100 Qty: 4

65607586004
NUT -Valid from Ass. Nr.20940 except CDN -
$1.55

Part#: 60758600 Qty: 4$1.55

661274944
WASHER
$0.65

Part#: 127494 Qty: 4$0.65

67126437704
WASHER

Part#: 12643770 Qty: 4

68646087001
UNDER-FLOOR UPPER CENTRAL INSULATION -Not for CH-

Part#: 64608700 Qty: 1

69646086001
UNDER-FLOOR LOWER CENTRAL INSULATION -Not for CH-

Part#: 64608600 Qty: 1

70646088002
UNDER-FLOOR LATERAL INSULATION -Not for CH-

Part#: 64608800 Qty: 2

71646414001
UNDER-FLOOR CENTRAL INSULATION -Valid for CH-

Part#: 64641400 Qty: 1
