Ferrari Philadelphia Parts

Table 122

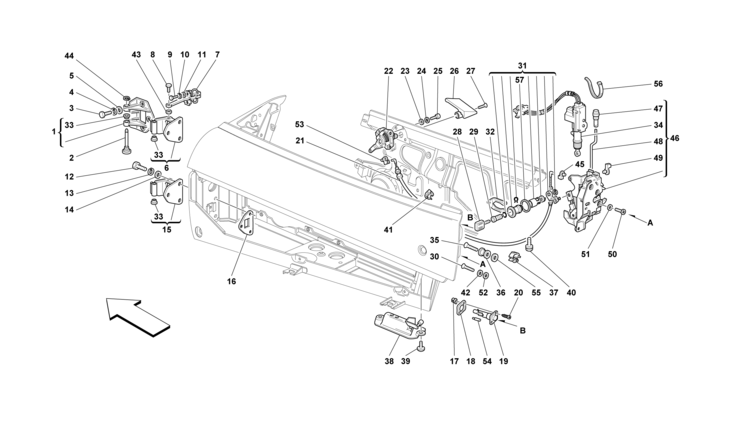

Table 122 - DOORS - OPENING CONTROL AND HINGES

Ref.Part#Qty.DescriptionPrice
1643793004
FIXED HINGE -Not for Spider-

Part#: 64379300 Qty: 4

1648298004
FIXED HINGE -Valid for Spider-

Part#: 64829800 Qty: 4

2643756004
PIN

Part#: 64375600 Qty: 4

31613592412
SCREW

Part#: 16135924 Qty: 12

412749612
WASHER
$0.50

Part#: 127496 Qty: 12$0.50

51051962412
WASHER
$0.20

Part#: 10519624 Qty: 12$0.20

6643791002
UPPER MOBILE HINGE -Not for Spider-

Part#: 64379100 Qty: 2

6648296002
UPPER MOBILE HINGE -Valid for Spider-

Part#: 64829600 Qty: 2

7639420002
TIE ROD FOR DOOR STOP
$144.48

Part#: 63942000 Qty: 2$144.48

8643755002
SCREW

Part#: 64375500 Qty: 2

9639423004
SCREW
$1.05

Part#: 63942300 Qty: 4$1.05

101274944
WASHER
$0.65

Part#: 127494 Qty: 4$0.65

11126444244
WASHER
$0.50

Part#: 12644424 Qty: 4$0.50

121613592412
SCREW

Part#: 16135924 Qty: 12

1312749612
WASHER
$0.50

Part#: 127496 Qty: 12$0.50

141051962412
WASHER
$0.20

Part#: 10519624 Qty: 12$0.20

15643792002
LOWER MOBILE HINGE -Not for Spider-

Part#: 64379200 Qty: 2

15648297002
LOWER MOBILE HINGE -Valid for Spider-

Part#: 64829700 Qty: 2

16621011004
PLATE FOR MOVABLE HINGE

Part#: 62101100 Qty: 4

17141155804
BLOCK
$1.00

Part#: 14115580 Qty: 4$1.00

181405762
GASKET
$24.27

Part#: 140576 Qty: 2$24.27

19607881002
OPENING DOOR LAMP
$12.00

Part#: 60788100 Qty: 2$12.00

20159014704
SCREW

Part#: 15901470 Qty: 4

21643141002
DOOR OPENING CABLE
$295.13

Part#: 64314100 Qty: 2$295.13

22643865001
L.H. INNER DEVICE FOR DOOR OPENING -Valid till stock exhaustion-

Part#: 64386500 Qty: 1

22645361001
L.H. INNER DEVICE FOR DOOR OPENING -Valid after stock exhaustion of 64386500-

Part#: 64536100 Qty: 1

22643864001
R.H. INNER DEVICE FOR DOOR OPENING -Valid till stock exhaustion-

Part#: 64386400 Qty: 1

22645360001
R.H. INNER DEVICE FOR DOOR OPENING -Valid after stock exhaustion of 64386400-

Part#: 64536000 Qty: 1

23607119006
WASHER
$0.92

Part#: 60711900 Qty: 6$0.92

241499516
WASHER

Part#: 149951 Qty: 6

25140719116
SCREW
$0.50

Part#: 14071911 Qty: 6$0.50

26635190001
L.H. INNER HANDLE FOR DOOR OPENING
$337.65

Part#: 63519000 Qty: 1$337.65

26635189001
R.H. INNER HANDLE FOR DOOR OPENING
$361.61

Part#: 63518900 Qty: 1$361.61

27133092112
SCREW
$0.73

Part#: 13309211 Qty: 2$0.73

281640890
BLANK KEY -With light-

Part#: 164089

281700100
BLANK KEY -Without light-
$340.00

Part#: 170010$340.00

292
BLOCK FOR DOORS LOCK -Not as spare part- -With complete antitheft device- -See Table 40 Pos. 10-

Part#: Qty: 2

30629409002
SCREW
$2.50

Part#: 62940900 Qty: 2$2.50

31640468001
L.H. DOOR BLOCK SEAT

Part#: 64046800 Qty: 1

31640467001
R.H. DOOR BLOCK SEAT

Part#: 64046700 Qty: 1

32643183002
ELASTIC FORK

Part#: 64318300 Qty: 2

336282530016
BUSHING
$48.70

Part#: 62825300 Qty: 16$48.70

34628323002
DOORS LOCKING/RELEASING ACTUATOR
$62.00

Part#: 62832300 Qty: 2$62.00

35628587002
SCREW
$2.98

Part#: 62858700 Qty: 2$2.98

36633641002
STRIKER
$29.08

Part#: 63364100 Qty: 2$29.08

37611306008
CLIP

Part#: 61130600 Qty: 8

38644585001
L.H. OUTER DOOR HANDLE
$734.14

Part#: 64458500 Qty: 1$734.14

38644584001
R.H. OUTER DOOR HANDLE
$686.15

Part#: 64458400 Qty: 1$686.15

39629409004
SCREW
$2.50

Part#: 62940900 Qty: 4$2.50

40138363244
SCREW
$1.65

Part#: 13836324 Qty: 4$1.65

41145694804
CLIP
$0.95

Part#: 14569480 Qty: 4$0.95

42126477772
WASHER

Part#: 12647777 Qty: 2

431328772
NUT
$3.25

Part#: 132877 Qty: 2$3.25

44110879744
FLEXIBLE RING
$0.95

Part#: 11087974 Qty: 4$0.95

45400632082
CABLE RETAIN CLIP
$5.90

Part#: 40063208 Qty: 2$5.90

46643126001
L.H. DOOR LOCK -Not for Spider-

Part#: 64312600 Qty: 1

46646853001
L.H. DOOR LOCK -Valid for Spider-
$403.10

Part#: 64685300 Qty: 1$403.10

46643127001
R.H. DOOR LOCK -Not for Spider-

Part#: 64312700 Qty: 1

46646852001
R.H. DOOR LOCK -Valid for Spider-
$423.26

Part#: 64685200 Qty: 1$423.26

47628009002
KNOB FOR SAFETY ROD
$3.49

Part#: 62800900 Qty: 2$3.49

48621092001
SAFETY LOCK ROD FOR L.H. DOOR -Not for Spider-

Part#: 62109200 Qty: 1

48636177001
SAFETY LOCK ROD FOR L.H. DOOR -Valid for Spider-

Part#: 63617700 Qty: 1

48621091001
SAFETY LOCK ROD FOR R.H. DOOR -Not for Spider-

Part#: 62109100 Qty: 1

48636176001
SAFETY LOCK ROD FOR R.H. DOOR -Valid for Spider-

Part#: 63617600 Qty: 1

49632806002
ROD CLIP -Not for Spider-
$0.81

Part#: 63280600 Qty: 2$0.81

49636953002
ROD CLIP -Valid for Spider-

Part#: 63695300 Qty: 2

50629410006
SCREW
$4.15

Part#: 62941000 Qty: 6$4.15

51633144006
WASHER

Part#: 63314400 Qty: 6

52633144002
WASHER

Part#: 63314400 Qty: 2

53632912002
CABLE RETAIN CLIP
$1.45

Part#: 63291200 Qty: 2$1.45

541015252
12V-3W BULB
$3.95

Part#: 101525 Qty: 2$3.95

55632853002
WASHER
$1.19

Part#: 63285300 Qty: 2$1.19

561458542
CLAMP
$0.50

Part#: 145854 Qty: 2$0.50

57652576002
GASKET
$9.77

Part#: 65257600 Qty: 2$9.77
