Ferrari Philadelphia Parts

Table 13

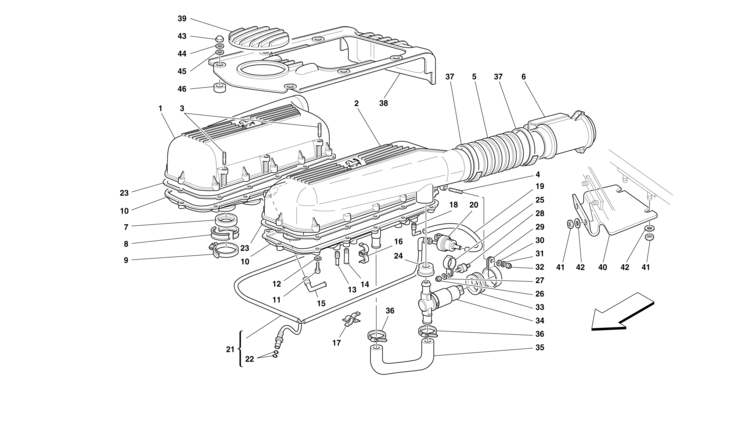

Table 13 - AIR BOXES

Ref.Part#Qty.DescriptionPrice
1636461
COMPLETE L.H. AIR FEEDING PLENUM CHAMBER AND COVER

Part#: 163646 Qty: 1

1636451
COMPLETE R.H. AIR FEEDING PLENUM CHAMBER AND COVER

Part#: 163645 Qty: 1

11576731
R.H. AIR FEEDING PLENUM CHAMBER -Not as spare part now- -With the assembly 163645-

Part#: 157673 Qty: 1

21577021
L.H. AIR FEEDING PLENUM CHAMBER -Not as spare part now- -With the assembly 163646-

Part#: 157702 Qty: 1

3115007246
STUD
$1.37

Part#: 11500724 Qty: 6$1.37

4135408242
STUD

Part#: 13540824 Qty: 2

51607012
SLEEVE
$125.87

Part#: 160701 Qty: 2$125.87

61549162
AIR FLOW METER

Part#: 154916 Qty: 2

714564316
GASKET
$43.52

Part#: 145643 Qty: 16$43.52

814564432
SEMI-RING -Valid till stock exhaustion-

Part#: 145644 Qty: 32

816945232
SEMI-RING -Valid after stock axaustion of 145644-

Part#: 169452 Qty: 32

914564516
CLAMP
$8.18

Part#: 145645 Qty: 16$8.18

101575822
LOWER COVER -Not as spare part now- -With the assembly 163645 and 163646-

Part#: 157582 Qty: 2

111430542432
SCREW
$2.17

Part#: 14305424 Qty: 32$2.17

121260127432
WASHER
$1.00

Part#: 12601274 Qty: 32$1.00

131608462
UNION

Part#: 160846 Qty: 2

141298088
UNION

Part#: 129808 Qty: 8

151539262
UNION

Part#: 153926 Qty: 2

161399662
FLEXIBLE CLIP

Part#: 139966 Qty: 2

171600141
FLEXIBLE CLIP

Part#: 160014 Qty: 1

181608292
UNION

Part#: 160829 Qty: 2

191547082
RUBBER HOSE -Valid till engine Nr.38150-

Part#: 154708 Qty: 2

191148792
RUBBER HOSE -Valid till engine Nr.38151 and till stock exhaustion-
$5.64

Part#: 114879 Qty: 2$5.64

191148792
RUBBER HOSE -Valid after stock exhaustion of 165568-
$5.64

Part#: 114879 Qty: 2$5.64

201309782
ANTI-EVAPORATION VALVE
$730.18

Part#: 130978 Qty: 2$730.18

211606891
ANTI-EVAPORATION PIPE TO PIPE FROM VAPOR FILTER
$89.50

Part#: 160689 Qty: 1$89.50

221339562
O.R. GASKET
$1.49

Part#: 133956 Qty: 2$1.49

231664382
GASKET -With 12 fixing points-
$29.43

Part#: 166438 Qty: 2$29.43

231533812
GASKET -With 16 fixing points-
$34.90

Part#: 153381 Qty: 2$34.90

241478982
SLEEVE

Part#: 147898 Qty: 2

251479232
CLAMP

Part#: 147923 Qty: 2

26107180254
NUT

Part#: 10718025 Qty: 4

271274934
WASHER
$0.10

Part#: 127493 Qty: 4$0.10

281488352
PAD
$22.00

Part#: 148835 Qty: 2$22.00

291578082
BRACKET
$2.10

Part#: 157808 Qty: 2$2.10

30144964012
WASHER

Part#: 14496401 Qty: 2

311274942
WASHER
$0.65

Part#: 127494 Qty: 2$0.65

32158962112
NUT

Part#: 15896211 Qty: 2

331507362
SHEATH

Part#: 150736 Qty: 2

341473732
REGULATOR FOR IDLE ADJUSTMENT

Part#: 147373 Qty: 2

351578102
PIPE

Part#: 157810 Qty: 2

36121802904
SCREW COLLAR

Part#: 12180290 Qty: 4

37130010904
SCREW COLLAR
$3.90

Part#: 13001090 Qty: 4$3.90

381595171
SHIELD

Part#: 159517 Qty: 1

391595191
SHIELD COVER -Valid for mechanical steering box cars-

Part#: 159519 Qty: 1

401604751
R.H. SHIELD FOR AIR FLOW METER PROTECTION

Part#: 160475 Qty: 1

401604761
L.H. SHIELD FOR AIR FLOW METER PROTECTION

Part#: 160476 Qty: 1

411136478
NUT
$0.21

Part#: 113647 Qty: 8$0.21

42126381018
WASHER

Part#: 12638101 Qty: 8

431512302
NUT

Part#: 151230 Qty: 2

441131132
WASHER
$10.16

Part#: 113113 Qty: 2$10.16

45144964012
WASHER

Part#: 14496401 Qty: 2

461595182
SPACER -Valid for mechanical steering box cars-

Part#: 159518 Qty: 2
