Ferrari Philadelphia Parts

Table 48

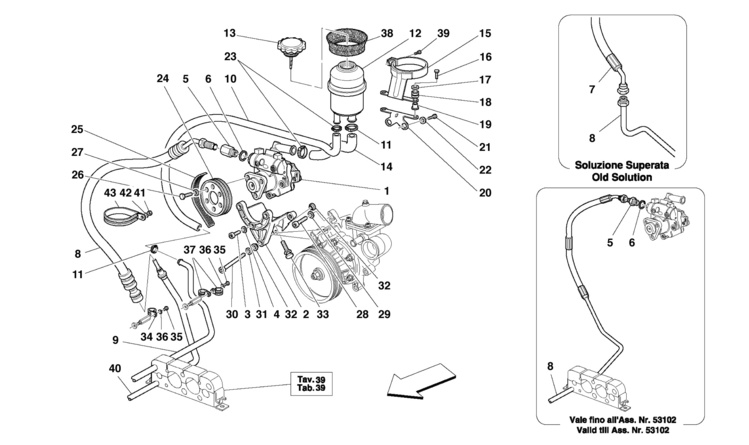

Table 48 - HYDRAULIC STEERING PUMP AND TANK

Ref.Part#Qty.DescriptionPrice
11739971
HYDRAULIC SERVO-CONTROL PUMP
$1332.87

Part#: 173997 Qty: 1$1332.87

21761621
PUMP SUPPORT
$774.92

Part#: 176162 Qty: 1$774.92

3143066243
SCREW

Part#: 14306624 Qty: 3

4111980743
WASHER
$0.39

Part#: 11198074 Qty: 3$0.39

51740911
UNION -Valid till Ass. Nr.53102-

Part#: 174091 Qty: 1

52040801
UNION -Valid from Ass. Nr. 53103-
$51.69

Part#: 204080 Qty: 1$51.69

6102614601
GASKET
$1.00

Part#: 10261460 Qty: 1$1.00

71697581
DELIVERY PIPE FROM PUMP TO UNDER FLOOR PIPE -Valid till Ass. Nr. 33655 for GS and till Ass. Nr. 34014 for GD-

Part#: 169758 Qty: 1

81793231
DELIVERY PIPE UNDER THE FLOOR -Valid till Ass. Nr. 33655 for GS and till Ass. Nr. 34014 for GD-

Part#: 179323 Qty: 1

81855141
COMPLETE DELIVERY PIPE UNDER THE FLOOR -Valid from Ass. Nr. 33656- -Till Ass. Nr.53102- -Not for GD-

Part#: 185514 Qty: 1

82040811
DELIVERY PIPE FROM PUMP TO UNION -Valid from Ass. Nr. 53103- -Not for GD-
$281.80

Part#: 204081 Qty: 1$281.80

81855151
COMPLETE DELIVERY PIPE UNDER THE FLOOR -Valid from Ass. Nr. 34015- -Till Ass. Nr.53102- -Valid for GD-

Part#: 185515 Qty: 1

82097681
DELIVERY PIPE FROM PUMP TO UNION -Valid from Ass. Nr. 53103- -Valid for GD-

Part#: 209768 Qty: 1

91793331
RETURN PIPE UNDER THE FLOOR -Valid till Ass. Nr. 35770-

Part#: 179333 Qty: 1

91849801
RETURN PIPE UNDER THE FLOOR -Valid from Ass. Nr.35771- -Not as spare part- -Replaced by 184980-

Part#: 184980 Qty: 1

91849801
RETURN PIPE UNDER THE FLOOR

Part#: 184980 Qty: 1

101793341
RETURN RUBBER HOSE TO TANK
$99.32

Part#: 179334 Qty: 1$99.32

11130003902
SCREW COLLAR
$2.00

Part#: 13000390 Qty: 2$2.00

121670021
OIL TANK FOR SERVOSTEERING
$117.17

Part#: 167002 Qty: 1$117.17

131853531
OIL TANK COVER
$499.89

Part#: 185353 Qty: 1$499.89

141794201
PIPE FROM TANK TO PUMP
$212.92

Part#: 179420 Qty: 1$212.92

151792871
UPPER BRACKET

Part#: 179287 Qty: 1

16109025242
SCREW

Part#: 10902524 Qty: 2

17126437242
WASHER
$0.29

Part#: 12643724 Qty: 2$0.29

181035492
CABLE GROMMET
$1.80

Part#: 103549 Qty: 2$1.80

191497072
SPACER
$1.97

Part#: 149707 Qty: 2$1.97

201792191
LOWER BRACKET

Part#: 179219 Qty: 1

21109022242
SCREW
$0.95

Part#: 10902224 Qty: 2$0.95

22126437242
WASHER
$0.29

Part#: 12643724 Qty: 2$0.29

231779962
CLAMP
$6.30

Part#: 177996 Qty: 2$6.30

241709261
PULLEY

Part#: 170926 Qty: 1

252014541
POWER STEERING CONTROL BELT -Not as spare part- -Replaced by 194223-
$22.90

Part#: 201454 Qty: 1$22.90

252014541
POWER STEERING CONTROL BELT -Valid till stock exhaustion-
$22.90

Part#: 201454 Qty: 1$22.90

252014541
POWER STEERING CONTROL BELT -Valid after stock exhaustion of 194223-
$22.90

Part#: 201454 Qty: 1$22.90

26160431243
SCREW

Part#: 16043124 Qty: 3

27111938743
WASHER
$0.10

Part#: 11193874 Qty: 3$0.10

28143067244
SCREW

Part#: 14306724 Qty: 4

29126013744
WASHER
$0.49

Part#: 12601374 Qty: 4$0.49

30143071241
SCREW
$1.75

Part#: 14307124 Qty: 1$1.75

31111938741
WASHER
$0.10

Part#: 11193874 Qty: 1$0.10

321734472
BUSHING

Part#: 173447 Qty: 2

331740281
ADJUSTMENT PIN

Part#: 174028 Qty: 1

34104419901
BRACKET WITH SHEATH
$1.20

Part#: 10441990 Qty: 1$1.20

35109021242
SCREW
$0.65

Part#: 10902124 Qty: 2$0.65

36144886242
WASHER

Part#: 14488624 Qty: 2

37104413902
BRACKET WITH SHEATH
$0.46

Part#: 10441390 Qty: 2$0.46

381793011
TANK RING

Part#: 179301 Qty: 1

39648306001
SCREW

Part#: 64830600 Qty: 1

402040841
L.H. DELIVERY PIPE FROM UNION TO STEERING BOX -Valid from Ass. Nr. 53103- -Not for GD-
$264.33

Part#: 204084 Qty: 1$264.33

402097691
R.H. DELIVERY PIPE FROM UNION TO STEERING BOX -Valid from Ass. Nr. 53103- -Valid for GD-

Part#: 209769 Qty: 1

411027411
NUT
$0.75

Part#: 102741 Qty: 1$0.75

42144993241
WASHER
$0.35

Part#: 14499324 Qty: 1$0.35

431240341
BRACKET WITH SHEATH

Part#: 124034 Qty: 1
