Table 102

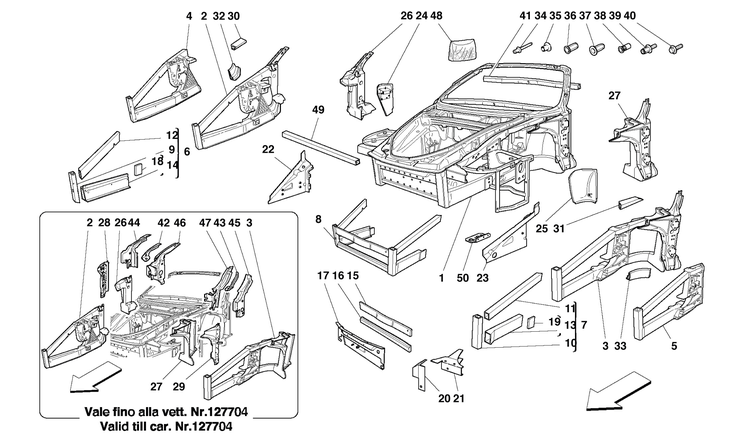

Table 102 - FRAME - FRONT ELEMENTS STRUCTURES AND PLATES

Ref.Part#Qty.DescriptionPrice
1667535001
COMPLETE FRONT FRAME -Not for GD- -Valid till car Nr. 120572-

Part#: 66753500 Qty: 1

1666513001
COMPLETE FRONT FRAME -Not for GD- -Valid from car Nr. 120573 to car Nr. 127704-

Part#: 66651300 Qty: 1

1673869001
COMPLETE FRONT FRAME -Not for GD- -Valid from car Nr. 127705- -Not for USA and CDN from car 129927- -See Table 101 Pos. 2-

Part#: 67386900 Qty: 1

1667536001
COMPLETE FRONT FRAME -Valid for GD- -Valid till car Nr. 120572-

Part#: 66753600 Qty: 1

1666514001
COMPLETE FRONT FRAME -Valid for GD- -Valid from car Nr. 120573 to car Nr. 127704-

Part#: 66651400 Qty: 1

1673870001
COMPLETE FRONT FRAME -Valid for GD- -Valid from car Nr. 127705-

Part#: 67387000 Qty: 1

1676322001
COMPLETE FRONT FRAME -Valid only for USA and CDN from car 129927- -See Table 102 Pos. 1-

Part#: 67632200 Qty: 1

2667537001
COMPLETE R.H. FRONT SIDE FRAME -Not for GD- -Valid till car Nr. 120572-

Part#: 66753700 Qty: 1

2666515001
COMPLETE R.H. FRONT SIDE FRAME -Not for GD- -Valid from car Nr. 120573 to car Nr. 127704-

Part#: 66651500 Qty: 1

2674104001
COMPLETE R.H. FRONT SIDE FRAME -Not for GD- -Valid from car Nr. 127705-

Part#: 67410400 Qty: 1

2667538001
COMPLETE R.H. FRONT SIDE FRAME -Valid for GD- -Valid till car Nr. 120572-

Part#: 66753800 Qty: 1

2666516001
COMPLETE R.H. FRONT SIDE FRAME -Valid for GD- -Valid from car Nr. 120573 to car Nr. 127704-

Part#: 66651600 Qty: 1

2674105001
COMPLETE R.H. FRONT SIDE FRAME -Valid for GD- -Valid from car Nr. 127705-

Part#: 67410500 Qty: 1

3667539001
COMPLETE L.H. FRONT SIDE FRAME -Not for GD- -Valid till car Nr. 120572-

Part#: 66753900 Qty: 1

3666517001
COMPLETE L.H. FRONT SIDE FRAME -Not for GD- -Valid from car Nr. 120573 to car Nr. 127704-

Part#: 66651700 Qty: 1

3674108001
COMPLETE L.H. FRONT SIDE FRAME -Not for GD- -Valid from car Nr. 127705-

Part#: 67410800 Qty: 1

3667540001
COMPLETE L.H. FRONT SIDE FRAME -Valid for GD- -Valid till car Nr. 120572-

Part#: 66754000 Qty: 1

3666518001
COMPLETE L.H. FRONT SIDE FRAME -Valid for GD- -Valid from car Nr. 120573 to car Nr. 127704-

Part#: 66651800 Qty: 1

3674109001
COMPLETE L.H. FRONT SIDE FRAME -Valid for GD- -Valid from car Nr. 127705-

Part#: 67410900 Qty: 1

4659405001
R.H. FRONT LATERAL SPRAG -Valid till car Nr. 120572-

Part#: 65940500 Qty: 1

4664526001
R.H. FRONT LATERAL SPRAG -Valid from car Nr. 120573-

Part#: 66452600 Qty: 1

5659406001
L.H. FRONT LATERAL SPRAG -Not for GD- -Valid till car Nr. 120572-

Part#: 65940600 Qty: 1

5664528001
L.H. FRONT LATERAL SPRAG -Not for GD- -Valid from car Nr. 120573-

Part#: 66452800 Qty: 1

5670401001
L.H. FRONT LATERAL SPRAG -Valid for GD- -Valid till car Nr. 120572-

Part#: 67040100 Qty: 1

5670402001
L.H. FRONT LATERAL SPRAG -Valid for GD- -Valid from car Nr. 120573-

Part#: 67040200 Qty: 1

6659403001
COMPLETE R.H. FRONT SIDE FRAME
$5654.88

Part#: 65940300 Qty: 1$5654.88

7659404001
COMPLETE L.H. FRONT SIDE FRAME

Part#: 65940400 Qty: 1

8659402001
COMPLETE FRONT FRAME

Part#: 65940200 Qty: 1

91662021
R.H. FRONT BUMPER PILLAR

Part#: 166202 Qty: 1

101661021
L.H. FRONT BUMPER PILLAR

Part#: 166102 Qty: 1

111661051
L.H. FRONT UPPER FRAME

Part#: 166105 Qty: 1

121662051
R.H. FRONT UPPER FRAME

Part#: 166205 Qty: 1

131661031
L.H. FRONT LOWER FRAME -Not as spare part- -Replaced by 177481-

Part#: 166103 Qty: 1

131774811
L.H. FRONT CRUSH-BOX

Part#: 177481 Qty: 1

141662031
R.H. FRONT LOWER FRAME -Not as spare part- -Replaced by 177482-

Part#: 166203 Qty: 1

141774821
R.H. FRONT CRUSH-BOX

Part#: 177482 Qty: 1

151663011
FRONT UPPER CROSS MEMBER
$231.95

Part#: 166301 Qty: 1$231.95

161838161
FRONT LOWER CROSS MEMBER
$288.71

Part#: 183816 Qty: 1$288.71

17653935001
TRUNK COMPARTMENT FRONT WALL

Part#: 65393500 Qty: 1

181662911
R.H. FRONT REINFORCEMENT
$17.48

Part#: 166291 Qty: 1$17.48

191661911
L.H. FRONT REINFORCEMENT

Part#: 166191 Qty: 1

20663954111
L.H. BRACKET

Part#: 66395411 Qty: 1

20663955111
R.H. BRACKET

Part#: 66395511 Qty: 1

211661701
L.H. BRAKET FOR FRONT BUMPER FIXING

Part#: 166170 Qty: 1

211662701
R.H. BRAKET FOR FRONT BUMPER FIXING

Part#: 166270 Qty: 1

22651527001
R.H. FRONT SIDE WALL

Part#: 65152700 Qty: 1

23651528001
L.H. FRONT SIDE WALL

Part#: 65152800 Qty: 1

241757381
R.H. PLATE -Not for GD-

Part#: 175738 Qty: 1

241794331
R.H. PLATE -Valid for GD-

Part#: 179433 Qty: 1

251757371
L.H. PLATE -Not for GD-

Part#: 175737 Qty: 1

251794321
L.H. PLATE -Valid for GD-

Part#: 179432 Qty: 1

26666519001
COMPLETE R.H. DOOR PILLAR -Valid till car Nr. 127704-

Part#: 66651900 Qty: 1

26674139001
COMPLETE R.H. DOOR PILLAR -Valid from car Nr. 127705-

Part#: 67413900 Qty: 1

27666520001
COMPLETE L.H. DOOR PILLAR -Valid till car Nr. 127704-

Part#: 66652000 Qty: 1

27674138001
COMPLETE L.H. DOOR PILLAR -Valid from car Nr. 127705-

Part#: 67413800 Qty: 1

28657939001
COMPLETE FRONT R.H. PILLAR -Valid till car Nr. 127704-

Part#: 65793900 Qty: 1

29657940001
COMPLETE FRONT L.H. PILLAR -Valid till car Nr. 127704-

Part#: 65794000 Qty: 1

301662071
R.H. UPPER FRAME

Part#: 166207 Qty: 1

311661071
L.H. UPPER FRAME

Part#: 166107 Qty: 1

321662151
R.H. LOWER FRAME

Part#: 166215 Qty: 1

331661151
L.H. LOWER FRAME

Part#: 166115 Qty: 1

34662922000
STANDARD HEAD RIVET
$2.45

Part#: 66292200$2.45

34662923000
HALF REPOTTED HEAD POP RIVET

Part#: 66292300

35651338000
RIVET L. 6,4 mm
$0.27

Part#: 65133800$0.27

36156242110
ESAGONAL RIVET M4

Part#: 15624211

36151804110
BLIND ESAGONAL RIVET

Part#: 15180411

36156245110
ESAGONAL RIVET M8

Part#: 15624511

36156244110
ESAGONAL RIVET M6

Part#: 15624411

36156243110
ESAGONAL RIVET M5

Part#: 15624311

37651512000
RIVET M6

Part#: 65151200

381661010
RIVET M4

Part#: 166101

38651350000
RIVET M8

Part#: 65135000

38659304000
RIVET M6

Part#: 65930400

38653198000
RIVET M8 BLIND

Part#: 65319800

381792990
RIVET M10

Part#: 179299

39650654000
STUD ESAGONAL HEAD M6

Part#: 65065400

40138369710
SCREW
$0.35

Part#: 13836971$0.35

411663101
UNDER WINDSCREEN CROSS MEMBER -Not for GD-

Part#: 166310 Qty: 1

411813101
UNDER WINDSCREEN CROSS MEMBER -Valid for GD-

Part#: 181310 Qty: 1

42659002001
FRONT PILLAR R.H. UPPER CARPET SHIELD -Valid till car Nr. 127704-

Part#: 65900200 Qty: 1

43659003001
FRONT PILLAR L.H. UPPER CARPET SHIELD -Valid till car Nr. 127704-

Part#: 65900300 Qty: 1

44657935001
R.H. REINFORCEMENT FOR LOWER PILLAR FRAME -Valid till car Nr. 127704-

Part#: 65793500 Qty: 1

45657936001
L.H. REINFORCEMENT FOR LOWER PILLAR FRAME -Valid till car Nr. 127704-

Part#: 65793600 Qty: 1

46657931001
R.H. LOWER PILLAR FRAME -Valid till car Nr. 127704-

Part#: 65793100 Qty: 1

47657932001
L.H. LOWER PILLAR FRAME -Valid till car Nr. 127704-

Part#: 65793200 Qty: 1

48700009501
INSERTS KIT FOR REPAIR

Part#: 70000950 Qty: 1

491663141
CROSS MEMBER

Part#: 166314 Qty: 1

50650131003
BRACKET FOR CONTROL UNITS FIXING

Part#: 65013100 Qty: 3
