Ferrari Philadelphia Parts

Table 35

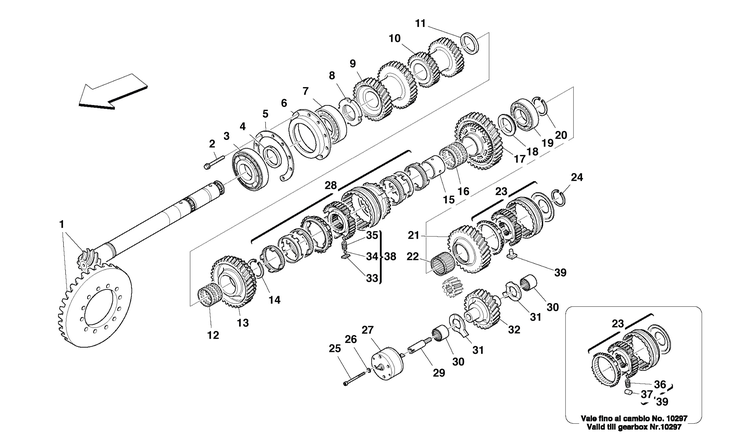

Table 35 - LAY SHAFT GEARS

Ref.Part#Qty.DescriptionPrice
11850231
COMPLETE BEVEL SET
$10958.77

Part#: 185023 Qty: 1$10958.77

2162877319
SCREW -Not as spare part- -Replaced by 16287730-

Part#: 16287731 Qty: 9

2162877309
SCREW

Part#: 16287730 Qty: 9

31850221
ROLLER BEARING
$310.19

Part#: 185022 Qty: 1$310.19

41850451
REGISTER RING -Thickness mm. 7,10-

Part#: 185045 Qty: 1

41850461
REGISTER RING -Thickness mm. 6,85- -Possible fitting-

Part#: 185046 Qty: 1

41850471
REGISTER RING -Thickness mm. 6,60- -Possible fitting-
$53.34

Part#: 185047 Qty: 1$53.34

51850421
REGISTER RING -Thickness mm. 2,8-

Part#: 185042 Qty: 1

51850431
REGISTER RING -Thickness mm. 2,5- -Possible fitting-

Part#: 185043 Qty: 1

51850441
REGISTER RING -Thickness mm. 2,2- -Possible fitting-

Part#: 185044 Qty: 1

61850201
BEARING SUPPORT

Part#: 185020 Qty: 1

71850211
ROLLER BEARING
$170.14

Part#: 185021 Qty: 1$170.14

81850191
RING NUT -Not as spare part- -Replaced by 196667-
$35.87

Part#: 185019 Qty: 1$35.87

81966671
RING NUT
$59.10

Part#: 196667 Qty: 1$59.10

91850181
3rd AND 4th DRIVEN GEAR

Part#: 185018 Qty: 1

101850171
5th AND 6th DRIVEN GEAR

Part#: 185017 Qty: 1

111839741
RING -Thickness mm. 4,30-
$34.76

Part#: 183974 Qty: 1$34.76

111850381
RING -Thickness mm. 3,95- -Possible fitting-
$48.25

Part#: 185038 Qty: 1$48.25

111850391
RING -Thickness mm. 3,60- -Possible fitting-

Part#: 185039 Qty: 1

121840141
ROLLER CAGE
$29.81

Part#: 184014 Qty: 1$29.81

131839461
PINION FOR 2nd GEAR

Part#: 183946 Qty: 1

141839761
FLEXIBLE RING -Thickness mm. 2,10-

Part#: 183976 Qty: 1

141850361
FLEXIBLE RING -Thickness mm. 1,85- -Possible fitting-

Part#: 185036 Qty: 1

141850371
FLEXIBLE RING -Thickness mm. 1,60- -Possible fitting-

Part#: 185037 Qty: 1

151839711
BUSHING

Part#: 183971 Qty: 1

161840161
ROLLER CAGE
$33.00

Part#: 184016 Qty: 1$33.00

171839451
PINION FOR 1st GEAR

Part#: 183945 Qty: 1

181839721
RING -Thickness mm. 5,10-
$70.89

Part#: 183972 Qty: 1$70.89

181850401
RING -Thickness mm. 4,85- -Possible fitting-

Part#: 185040 Qty: 1

181850411
RING -Thickness mm. 4,60- -Possible fitting-

Part#: 185041 Qty: 1

191840201
ROLLER BEARING
$286.32

Part#: 184020 Qty: 1$286.32

201840421
FLEXIBLE RING
$15.47

Part#: 184042 Qty: 1$15.47

211851681
REVERSE GEAR -Vale till gearbox No. 10297-

Part#: 185168 Qty: 1

211934381
REVERSE GEAR -Valid from gearbox No. 10298-

Part#: 193438 Qty: 1

221840181
ROLLER CAGE
$37.00

Part#: 184018 Qty: 1$37.00

231851671
REVERSE GEAR COMPLETE SYNCHRONIZER -Vale till gearbox No. 10297-
$423.04

Part#: 185167 Qty: 1$423.04

231934391
REVERSE GEAR COMPLETE SYNCHRONIZER -Valid from gearbox No. 10298-

Part#: 193439 Qty: 1

241840411
FLEXIBLE RING
$5.20

Part#: 184041 Qty: 1$5.20

25143036244
SCREW
$0.58

Part#: 14303624 Qty: 4$0.58

26105713794
WASHER
$0.10

Part#: 10571379 Qty: 4$0.10

271850481
BEARBOX OIL PUMP
$1404.17

Part#: 185048 Qty: 1$1404.17

281851641
1st AND 2nd GEAR COMPLETE SYNCHRONIZER
$1981.42

Part#: 185164 Qty: 1$1981.42

291850501
PIN

Part#: 185050 Qty: 1

301840172
ROLLER CASING
$29.98

Part#: 184017 Qty: 2$29.98

311839752
RING

Part#: 183975 Qty: 2

321839691
IDLE GEAR FOR REVERSE

Part#: 183969 Qty: 1

331849913
PAD FOR SYNCHRONIZER -Not as spare part replaced by 188320- -See ref.38-

Part#: 184991 Qty: 3

341849973
BALL -Not as spare part replaced by 188320- -See ref.38-

Part#: 184997 Qty: 3

351849893
SPRING FOR BALL -Not as spare part replaced by 188320- -See ref.38-

Part#: 184989 Qty: 3

361850153
SPRING -Not as spare part replaced by 188321- -See ref.39-

Part#: 185015 Qty: 3

371850163
ROLL -Not as spare part replaced by 188321- -See ref.39-

Part#: 185016 Qty: 3

381883201
PAD FOR SYNCHRONIZER/BALL/ SPRING REPLACEMENT KIT
$19.46

Part#: 188320 Qty: 1$19.46

391883211
SPRING/ROLL/SYNCHRO REVERSE GEAR KIT -Vale till gearbox No. 10297-

Part#: 188321 Qty: 1

391934401
PADS/SYNCHRO REVERSE GEAR KIT -Valid from gearbox No. 10298-
$7.50

Part#: 193440 Qty: 1$7.50
