Ferrari Philadelphia Parts

Table 17

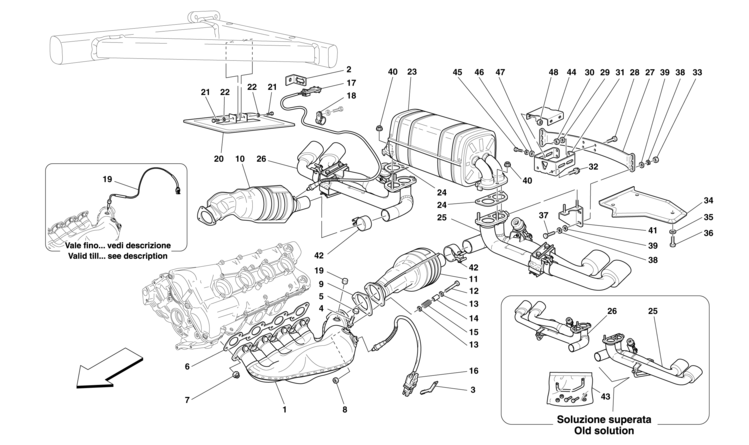

Table 17 - RACING EXHAUST SYSTEM

Ref.Part#Qty.DescriptionPrice
12126311
LH EXHAUST MANIFOLD -Applicable up to MY 08- -Applicable for Taiwan- -No longer supplied- -Replaced by 247596-

Part#: 212631 Qty: 1

12475961
LH EXHAUST MANIFOLD -Applicable up to MY 08- -Not for Taiwan- -Not for CINA- -Applicable up to Ass. No. 74556- -No longer supplied- -Replaced by 247596-

Part#: 247596 Qty: 1

12475961
LH EXHAUST MANIFOLD -Applicable up to MY 08- -Applicable for CINA- -Applicable up to Ass. No. 78360- -No longer supplied- -Replaced by 247596-

Part#: 247596 Qty: 1

12232141
LH EXHAUST MANIFOLD -Applicable from MY 08- -Not for Taiwan- -Not for CINA- -Applicable from Ass. No. 74557- -No longer supplied- -Replaced by 247594-

Part#: 223214 Qty: 1

12232141
LH EXHAUST MANIFOLD -Applicable from MY 08- -Applicable for CINA- -Applicable from Ass. No. 78361- -No longer supplied- -Replaced by 247594-

Part#: 223214 Qty: 1

12475961
LH EXHAUST MANIFOLD -Applicable up to MY 08- -Applicable for Taiwan- -Replaces 212631-

Part#: 247596 Qty: 1

12475961
LH EXHAUST MANIFOLD -Applicable up to MY 08- -Not for Taiwan- -Replaces 212631- -Not for CINA- -Applicable up to Ass. No. 74556-

Part#: 247596 Qty: 1

12475961
LH EXHAUST MANIFOLD -Applicable up to MY 08- -Replaces 212631- -Applicable for CINA- -Applicable up to Ass. No. 78360-

Part#: 247596 Qty: 1

12475941
LH EXHAUST MANIFOLD -Applicable from MY 08- -Not for Taiwan- -Replaces 223214- -Not for CINA- -Applicable from Ass. No. 74557-

Part#: 247594 Qty: 1

12475941
LH EXHAUST MANIFOLD -Applicable from MY 08- -Replaces 223214- -Applicable for CINA- -Applicable from Ass. No. 78361-

Part#: 247594 Qty: 1

12126301
RH EXHAUST MANIFOLD -Applicable up to MY 08- -Applicable for Taiwan- -No longer supplied- -Replaced by 247595-

Part#: 212630 Qty: 1

12126301
RH EXHAUST MANIFOLD -Applicable up to MY 08- -Not for Taiwan- -Not for CINA- -Applicable up to Ass. No. 74556- -No longer supplied- -Replaced by 247595-

Part#: 212630 Qty: 1

12126301
RH EXHAUST MANIFOLD -Applicable up to MY 08- -Applicable for CINA- -Applicable up to Ass. No. 78360- -No longer supplied- -Replaced by 247595-

Part#: 212630 Qty: 1

12232131
RH EXHAUST MANIFOLD -Applicable from MY 08- -Not for Taiwan- -Not for CINA- -Applicable from Ass. No. 74557- -No longer supplied- -Replaced by 247593-

Part#: 223213 Qty: 1

12232131
RH EXHAUST MANIFOLD -Applicable from MY 08- -Applicable for CINA- -Applicable from Ass. No. 78361- -No longer supplied- -Replaced by 247593-

Part#: 223213 Qty: 1

12475951
RH EXHAUST MANIFOLD -Applicable up to MY 08- -Applicable for Taiwan- -Replaces 212630-

Part#: 247595 Qty: 1

12475951
RH EXHAUST MANIFOLD -Applicable up to MY 08- -Not for Taiwan- -Replaces 212630- -Not for CINA- -Applicable up to Ass. No. 74556-

Part#: 247595 Qty: 1

12475951
RH EXHAUST MANIFOLD -Applicable up to MY 08- -Replaces 212630- -Applicable for CINA- -Applicable up to Ass. No. 78360-

Part#: 247595 Qty: 1

12475931
RH EXHAUST MANIFOLD -Applicable from MY 08- -Not for Taiwan- -Replaces 223213- -Not for CINA- -Applicable from Ass. No. 74557-

Part#: 247593 Qty: 1

12475931
RH EXHAUST MANIFOLD -Applicable from MY 08- -Replaces 223213- -Applicable for CINA- -Applicable from Ass. No. 78361-

Part#: 247593 Qty: 1

21783662
CONNECTOR FASTENER BRACKET

Part#: 178366 Qty: 2

31758562
CONNECTOR FASTENER BRACKET

Part#: 175856 Qty: 2

41442402
THREADED CONNECTOR
$85.50

Part#: 144240 Qty: 2$85.50

51505952
BLIND NUT
$1.02

Part#: 150595 Qty: 2$1.02

62114042
GASKET
$35.06

Part#: 211404 Qty: 2$35.06

721097116
NUT
$2.50

Part#: 210971 Qty: 16$2.50

82121916
NUT
$5.98

Part#: 212191 Qty: 6$5.98

91549852
GASKET
$24.39

Part#: 154985 Qty: 2$24.39

101949061
RH CATALYTIC CONVERTER -No longer supplied- -Replaced by 216241-

Part#: 194906 Qty: 1

102162411
RH CATALYTIC CONVERTER -Applicable for Taiwan- -Applicable for CINA-
$6758.82

Part#: 216241 Qty: 1$6758.82

102162411
RH CATALYTIC CONVERTER -Not for Taiwan- -Not for CINA- -No longer supplied- -Replaced by 220662-
$6758.82

Part#: 216241 Qty: 1$6758.82

102206621
RH CATALYTIC CONVERTER -Not for Taiwan- -Applicable up to MY 08- -Not for CINA- -Applicable up to Ass. No. 74556-
$6323.96

Part#: 220662 Qty: 1$6323.96

102232151
RH CATALYTIC CONVERTER -Applicable from MY 08- -Applicable from Ass. No. 74557-

Part#: 223215 Qty: 1

111949071
LH CATALYTIC CONVERTER -No longer supplied- -Replaced by 216242-

Part#: 194907 Qty: 1

112162421
LH CATALYTIC CONVERTER -Applicable for Taiwan- -Applicable for CINA-
$5533.78

Part#: 216242 Qty: 1$5533.78

112162421
LH CATALYTIC CONVERTER -Not for Taiwan- -Not for CINA- -No longer supplied- -Replaced by 220663-
$5533.78

Part#: 216242 Qty: 1$5533.78

112206631
LH CATALYTIC CONVERTER -Not for Taiwan- -Applicable up to MY 08- -Not for CINA- -Applicable up to Ass. No. 74556-
$6326.96

Part#: 220663 Qty: 1$6326.96

112232161
LH CATALYTIC CONVERTER -Applicable from MY 08- -Applicable from Ass. No. 74557-
$6492.14

Part#: 223216 Qty: 1$6492.14

12160445246
SCREW
$2.00

Part#: 16044524 Qty: 6$2.00

131264677812
WASHER
$0.98

Part#: 12646778 Qty: 12$0.98

141147496
SHIM
$3.63

Part#: 114749 Qty: 6$3.63

151117436
SPRING
$41.43

Part#: 111743 Qty: 6$41.43

161828372
FRONT LAMBDA SENSOR
$369.73

Part#: 182837 Qty: 2$369.73

171809152
REAR LAMBDA SENSOR
$213.53

Part#: 180915 Qty: 2$213.53

18104413901
BRACKET WITH SHEATH
$0.46

Part#: 10441390 Qty: 1$0.46

192009342
THERMOCOUPLE -Applicable for USA, CDN- -Applicable up to Ass. No. 68459-
$220.66

Part#: 200934 Qty: 2$220.66

192009342
THERMOCOUPLE -Not for USA, CDN- -Applicable up to Ass. No. 69638-
$220.66

Part#: 200934 Qty: 2$220.66

192361952
CAP -Applicable for USA, CDN- -Applicable from Ass. No. 68460-
$51.41

Part#: 236195 Qty: 2$51.41

192361952
CAP -Not for USA, CDN- -Applicable from Ass. No. 69639-
$51.41

Part#: 236195 Qty: 2$51.41

20683595001
RH CATALYTIC CONVERTER SHIELD -Applicable until depletion-

Part#: 68359500 Qty: 1

20696199001
RH CATALYTIC CONVERTER SHIELD -Applicable after depletion of 68359500-
$416.80

Part#: 69619900 Qty: 1$416.80

20683596001
LH CATALYTIC CONVERTER SHIELD -Applicable until depletion-

Part#: 68359600 Qty: 1

20696401001
LH CATALYTIC CONVERTER SHIELD -Applicable after depletion of 68359600-
$416.80

Part#: 69640100 Qty: 1$416.80

21162970244
SCREW
$0.50

Part#: 16297024 Qty: 4$0.50

22126204744
WASHER
$0.15

Part#: 12620474 Qty: 4$0.15

232141761
COMPLETE EXHAUST SILENCER -No longer supplied- -Replaced by 223718-

Part#: 214176 Qty: 1

232237181
COMPLETE EXHAUST SILENCER -Not for USA, CDN, J- -Applicable up to Ass. No. 76377- -Applicable until depletion-

Part#: 223718 Qty: 1

232398801
COMPLETE EXHAUST SILENCER -Not for USA, CDN, J- -Applicable from Ass. No. 76378-

Part#: 239880 Qty: 1

232141761
COMPLETE EXHAUST SILENCER -Applicable for USA, CDN, J- -Applicable up to Ass. No. 76377- -Applicable until depletion-

Part#: 214176 Qty: 1

232315411
COMPLETE EXHAUST SILENCER -Applicable up to MY 08- -Applicable for USA, CDN, J- -Applicable from Ass. No. 76378- -Applicable after depletion of 214176-
$7879.93

Part#: 231541 Qty: 1$7879.93

232473581
COMPLETE EXHAUST SILENCER -Applicable from MY 08- -Applicable for J-

Part#: 247358 Qty: 1

241776122
GASKET
$118.20

Part#: 177612 Qty: 2$118.20

252129401
COMPLETE LH OUTLET PIPE -Replace as a pair- -Applicable up to Ass. No. 64273- -No longer supplied- -Replaced by 216041-

Part#: 212940 Qty: 1

252160411
COMPLETE LH OUTLET PIPE -Applicable from Ass. No. 64274- -No longer supplied- -Replaced by 240829-

Part#: 216041 Qty: 1

252408291
COMPLETE LH OUTLET PIPE -Applicable up to Ass. No. 76377- -Applicable until depletion-

Part#: 240829 Qty: 1

252315431
COMPLETE LH OUTLET PIPE -Applicable from Ass. No. 76378- -Applicable after depletion of 240829-
$1752.14

Part#: 231543 Qty: 1$1752.14

252359621
COMPLETE LH OUTLET PIPE -Chrome finish- -Alternative solution-

Part#: 235962 Qty: 1

262315421
COMPLETE RH OUTLET PIPE -Replace as a pair- -Applicable up to Ass. No. 64273- -No longer supplied- -Replaced by 216040-
$3291.77

Part#: 231542 Qty: 1$3291.77

262315421
COMPLETE RH OUTLET PIPE -Applicable from Ass. No. 64274- -No longer supplied- -Replaced by 240828-
$3291.77

Part#: 231542 Qty: 1$3291.77

262408281
COMPLETE RH OUTLET PIPE -Applicable up to Ass. No. 76377- -Applicable until depletion-

Part#: 240828 Qty: 1

262315421
COMPLETE RH OUTLET PIPE -Applicable from Ass. No. 76378- -Applicable after depletion of 240828-
$3291.77

Part#: 231542 Qty: 1$3291.77

262359611
COMPLETE RH OUTLET PIPE -Chrome finish- -Alternative solution-

Part#: 235961 Qty: 1

271958031
EXHAUST SIDE SILENCER MOUNTING
$268.72

Part#: 195803 Qty: 1$268.72

28160433244
SCREW -M8 X 18-
$1.05

Part#: 16043324 Qty: 4$1.05

291274964
WASHER
$0.50

Part#: 127496 Qty: 4$0.50

30161008244
NUT
$0.14

Part#: 16100824 Qty: 4$0.14

312126911
GEARBOX SIDE SILENCER MOUNTING -Applicable until depletion-
$347.48

Part#: 212691 Qty: 1$347.48

312126911
GEARBOX SIDE SILENCER MOUNTING -Applicable after depletion of 181383-
$347.48

Part#: 212691 Qty: 1$347.48

32160434344
SCREW
$0.50

Part#: 16043434 Qty: 4$0.50

33161008244
NUT
$0.14

Part#: 16100824 Qty: 4$0.14

342086551
LH SHIELD -Applicable until depletion-

Part#: 208655 Qty: 1

342243891
LH SHIELD -Applicable after depletion of 208655-
$331.61

Part#: 224389 Qty: 1$331.61

342086541
RH SHIELD -Applicable until depletion-

Part#: 208654 Qty: 1

342243881
RH SHIELD -Applicable after depletion of 208654-
$309.90

Part#: 224388 Qty: 1$309.90

35126437242
WASHER
$0.29

Part#: 12643724 Qty: 2$0.29

35126252244
WASHER
$0.25

Part#: 12625224 Qty: 4$0.25

36109023242
SCREW -M6 X 18-
$0.50

Part#: 10902324 Qty: 2$0.50

36160433244
SCREW -M8 X 18-
$1.05

Part#: 16043324 Qty: 4$1.05

37160435344
SCREW
$0.20

Part#: 16043534 Qty: 4$0.20

38126467788
WASHER
$0.98

Part#: 12646778 Qty: 8$0.98

391274968
WASHER
$0.50

Part#: 127496 Qty: 8$0.50

401798088
NUT
$1.25

Part#: 179808 Qty: 8$1.25

412108931
LH BRACKET
$242.00

Part#: 210893 Qty: 1$242.00

412108921
RH BRACKET
$255.54

Part#: 210892 Qty: 1$255.54

421853072
CLAMP
$34.92

Part#: 185307 Qty: 2$34.92

432237710
BRACKET AND FASTENER KIT FOR OUTLET PIPES -No longer supplied-
$82.74

Part#: 223771$82.74

442219091
REINFORCEMENT
$19.69

Part#: 221909 Qty: 1$19.69

45160433244
SCREW -M8 X 18-
$1.05

Part#: 16043324 Qty: 4$1.05

46144965214
WASHER -No longer supplied- -Replaced by 12646724-

Part#: 14496521 Qty: 4

46126467244
WASHER
$0.25

Part#: 12646724 Qty: 4$0.25

47126013794
WASHER
$0.49

Part#: 12601379 Qty: 4$0.49

48161008244
NUT
$0.14

Part#: 16100824 Qty: 4$0.14
