Ferrari Philadelphia Parts

Table 41

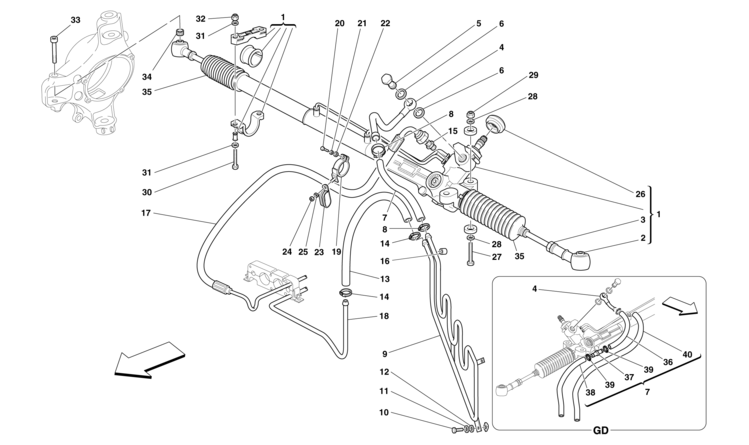

Table 41 - HYDRAULIC POWER STEERING BOX AND SERPENTINE COIL

Ref.Part#Qty.DescriptionPrice
11961711
STEERING BOX TO POWER-ASSISTED RACK -Not for GD-
$23434.38

Part#: 196171 Qty: 1$23434.38

11961721
STEERING BOX TO POWER-ASSISTED RACK -Applicable for GD-

Part#: 196172 Qty: 1

21818822
ROD END FOR STEERING BOX
$1079.27

Part#: 181882 Qty: 2$1079.27

32042482
NUT -Applicable up to Ass. No. 49787-
$36.30

Part#: 204248 Qty: 2$36.30

3107904242
NUT -Applicable from Ass. No. 49788-
$6.05

Part#: 10790424 Qty: 2$6.05

42117641
SWIVELLING UNION -Not for GD-

Part#: 211764 Qty: 1

41779431
SWIVELLING UNION -Applicable for GD-

Part#: 177943 Qty: 1

5101851111
CONNECTOR
$12.50

Part#: 10185111 Qty: 1$12.50

6102800602
GASKET
$1.00

Part#: 10280060 Qty: 2$1.00

72127061
RUBBER PIPE -Not for GD-

Part#: 212706 Qty: 1

72098671
RUBBER PIPE -Applicable for GD- -No longer supplied- -Replaced by 219300-

Part#: 209867 Qty: 1

72193001
RUBBER PIPE -Applicable for GD- -No longer supplied-

Part#: 219300 Qty: 1

81614902
COLLAR FOR HOSE UNION -Not for GD-
$2.25

Part#: 161490 Qty: 2$2.25

8134307702
COLLAR FOR HOSE UNION -Applicable for GD-
$1.20

Part#: 13430770 Qty: 2$1.20

92050711
COOLING COIL -Not for GD-
$711.08

Part#: 205071 Qty: 1$711.08

92147381
COOLING COIL -Applicable for GD-

Part#: 214738 Qty: 1

10109021243
SCREW -L. 14 mm-
$0.65

Part#: 10902124 Qty: 3$0.65

10162863241
SCREW -L. 30 mm-

Part#: 16286324 Qty: 1

11126012744
WASHER
$1.00

Part#: 12601274 Qty: 4$1.00

12144964244
WASHER

Part#: 14496424 Qty: 4

132127071
RUBBER PIPE -Not for GD- -No longer supplied- -Replaced by 209868-

Part#: 212707 Qty: 1

132098681
RUBBER PIPE -Not for GD-
$94.84

Part#: 209868 Qty: 1$94.84

132098681
RUBBER PIPE -Applicable for GD- -No longer supplied- -Replaced by 247406-
$94.84

Part#: 209868 Qty: 1$94.84

132474061
RUBBER PIPE -Applicable for GD-

Part#: 247406 Qty: 1

141614902
COLLAR FOR HOSE UNION
$2.25

Part#: 161490 Qty: 2$2.25

152017061
THREADED CONNECTOR

Part#: 201706 Qty: 1

161667301
SHIM

Part#: 166730 Qty: 1

172115361
JUNCTION TO LH STEERING BOX DELIVERY PIPE
$514.08

Part#: 211536 Qty: 1$514.08

182025521
UNDERBODY RETURN PIPE

Part#: 202552 Qty: 1

191776312
TUBE FASTENING BRACKET

Part#: 177631 Qty: 2

20109024242
SCREW
$1.00

Part#: 10902424 Qty: 2$1.00

211274942
WASHER
$0.65

Part#: 127494 Qty: 2$0.65

22126397242
WASHER
$0.50

Part#: 12639724 Qty: 2$0.50

23104416902
BRACKET WITH SHEATH
$1.48

Part#: 10441690 Qty: 2$1.48

241029482
NUT
$2.29

Part#: 102948 Qty: 2$2.29

25126397242
WASHER
$0.50

Part#: 12639724 Qty: 2$0.50

261715191
COMPLETE RING

Part#: 171519 Qty: 1

27162371742
SCREW

Part#: 16237174 Qty: 2

28144966244
WASHER
$1.11

Part#: 14496624 Qty: 4$1.11

291027422
NUT
$3.25

Part#: 102742 Qty: 2$3.25

30162370742
SCREW

Part#: 16237074 Qty: 2

31144966244
WASHER
$1.11

Part#: 14496624 Qty: 4$1.11

321027422
NUT
$3.25

Part#: 102742 Qty: 2$3.25

331795562
SCREW
$42.95

Part#: 179556 Qty: 2$42.95

341795552
COMPENSATOR RING
$6.50

Part#: 179555 Qty: 2$6.50

35700009481
BELLOW REPLACEMENT KIT
$105.76

Part#: 70000948 Qty: 1$105.76

362099201
PIPE
$17.78

Part#: 209920 Qty: 1$17.78

372098301
CONNECTOR

Part#: 209830 Qty: 1

382192991
RUBBER PIPE

Part#: 219299 Qty: 1

39134307702
COLLAR FOR HOSE UNION
$1.20

Part#: 13430770 Qty: 2$1.20

402049391
SHEATH

Part#: 204939 Qty: 1
