Ferrari Philadelphia Parts

Table 119

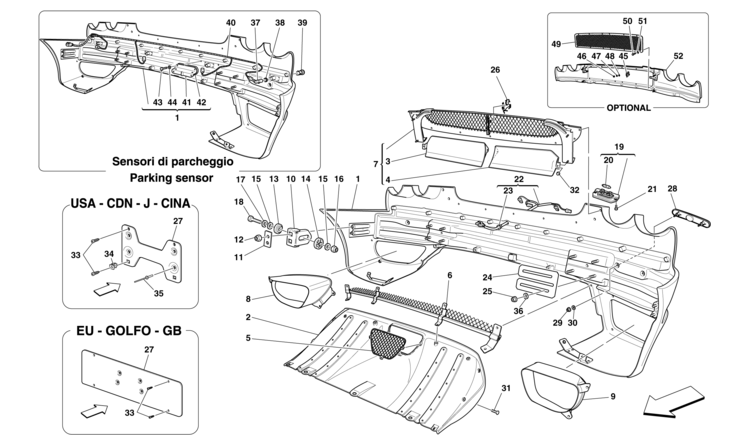

Table 119 - REAR BUMPER

Ref.Part#Qty.DescriptionPrice
1831114101
REAR BUMPER -Plastic rear trim- -Not for USA, CDN-
$10051.15

Part#: 83111410 Qty: 1$10051.15

1831115101
REAR BUMPER -Plastic rear trim- -Parking sensors- -Optional- -Does not contain sensors- -Not for USA, CDN-

Part#: 83111510 Qty: 1

1831116101
REAR BUMPER -Plastic rear trim- -Applicable for USA, CDN-
$9384.82

Part#: 83111610 Qty: 1$9384.82

1831117101
REAR BUMPER -Plastic rear trim- -Parking sensors- -Optional- -Does not contain sensors- -Applicable for USA, CDN-
$9384.82

Part#: 83111710 Qty: 1$9384.82

1831118101
REAR BUMPER -Version with connector (ordered separately, see ref. 52)- -Optional- -Not for USA, CDN-

Part#: 83111810 Qty: 1

1831119101
REAR BUMPER -Version with connector (ordered separately, see ref. 52)- -Parking sensors- -Optional- -Does not contain sensors- -Not for USA, CDN-

Part#: 83111910 Qty: 1

1831120101
REAR BUMPER -Version with connector (ordered separately, see ref. 52)- -Optional- -Applicable for USA, CDN-

Part#: 83112010 Qty: 1

1831121101
REAR BUMPER -Version with connector (ordered separately, see ref. 52)- -Parking sensors- -Optional- -Does not contain sensors- -Applicable for USA, CDN-
$8849.95

Part#: 83112110 Qty: 1$8849.95

2677721001
REAR BUMPER LOWER TRIM -Grey-
$5852.95

Part#: 67772100 Qty: 1$5852.95

2691405001
REAR BUMPER LOWER TRIM -Black-
$4179.51

Part#: 69140500 Qty: 1$4179.51

3685347001
RH BRACKET

Part#: 68534700 Qty: 1

4685348001
LH BRACKET

Part#: 68534800 Qty: 1

5677727001
CENTRAL GRILLE
$857.47

Part#: 67772700 Qty: 1$857.47

6680991001
LOWER GRILLE
$732.16

Part#: 68099100 Qty: 1$732.16

7680990001
UPPER GRILLE
$857.47

Part#: 68099000 Qty: 1$857.47

8681647001
RH TAILPIPE SURROUND
$729.89

Part#: 68164700 Qty: 1$729.89

9681648001
LH TAILPIPE SURROUND

Part#: 68164800 Qty: 1

10681483002
LATERAL LH BUMPER MOUNTING BRACKET
$130.28

Part#: 68148300 Qty: 2$130.28

11621266002
PLATE
$12.44

Part#: 62126600 Qty: 2$12.44

121040304
NUT
$0.48

Part#: 104030 Qty: 4$0.48

13621282002
EXTERNAL SPACER
$2.50

Part#: 62128200 Qty: 2$2.50

14621283002
INTERNAL SPACER
$2.50

Part#: 62128300 Qty: 2$2.50

15126468014
WASHER
$1.30

Part#: 12646801 Qty: 4$1.30

161041142
NUT
$1.20

Part#: 104114 Qty: 2$1.20

17126014742
WASHER
$0.25

Part#: 12601474 Qty: 2$0.25

18113070212
SCREW
$6.25

Part#: 11307021 Qty: 2$6.25

191861802
LICENSE PLATE LIGHT
$92.00

Part#: 186180 Qty: 2$92.00

20108577901
12 V-5 W LAMP
$2.03

Part#: 10857790 Qty: 1$2.03

21159015704
SCREW

Part#: 15901570 Qty: 4

221829851
PLATE LIGHT CABLES
$134.69

Part#: 182985 Qty: 1$134.69

23103992802
CABLE GROMMET

Part#: 10399280 Qty: 2

24683557004
SHIM -Th. 3 mm- -Applicable until depletion-

Part#: 68355700 Qty: 4

24690476004
SHIM -Th. 1 mm- -Installed if necessary- -Applicable until depletion-

Part#: 69047600 Qty: 4

24697421002
SHIM -Th. 6 mm- -Applicable after depletion of 68355700 and 69047600-
$29.68

Part#: 69742100 Qty: 2$29.68

24690477008
SHIM -Th. 1 mm- -Installed if necessary-

Part#: 69047700 Qty: 8

25121647108
NUT -No longer supplied- -Replaced by 104114-

Part#: 12164710 Qty: 8

251041148
NUT
$1.20

Part#: 104114 Qty: 8$1.20

26600321091
CAVALLINO RAMPANTE BADGE
$107.49

Part#: 60032109 Qty: 1$107.49

27658863001
LICENSE PLATE MOUNT -Applicable for USA, CDN-
$123.29

Part#: 65886300 Qty: 1$123.29

27658876001
REAR LICENSE PLATE MOUNT -Applicable for J-

Part#: 65887600 Qty: 1

27692771001
REAR LICENSE PLATE MOUNT -Applicable for CINA-

Part#: 69277100 Qty: 1

27810410001
REAR LICENSE PLATE MOUNT -Applicable for EU GS, GOLFO, UK-

Part#: 81041000 Qty: 1

28670910002
REFLECTOR LENS
$75.37

Part#: 67091000 Qty: 2$75.37

29125780114
NUT

Part#: 12578011 Qty: 4

30135777014
WASHER
$0.15

Part#: 13577701 Qty: 4$0.15

31627976006
SCREW -Grey- -No longer supplied- -Replaced by 62797600-
$1.45

Part#: 62797600 Qty: 6$1.45

31627976006
SCREW -Black-
$1.45

Part#: 62797600 Qty: 6$1.45

32140421772
NUT

Part#: 14042177 Qty: 2

33160843704
SCREW -Applicable for USA, CDN-
$5.98

Part#: 16084370 Qty: 4$5.98

34142019802
BLOCK -Applicable for USA, CDN-
$0.75

Part#: 14201980 Qty: 2$0.75

35142956964
RIVET -Applicable for USA, CDN-
$0.60

Part#: 14295696 Qty: 4$0.60

36126443018
WASHER

Part#: 12644301 Qty: 8

372145614
PARKING SENSOR -Parking sensors- -Optional-
$215.00

Part#: 214561 Qty: 4$215.00

382235164
GASKET -Parking sensors- -Optional-
$8.46

Part#: 223516 Qty: 4$8.46

39693181004
PIPE CONNECTOR -Parking sensors- -Optional-
$209.58

Part#: 69318100 Qty: 4$209.58

402212701
BUMPER CABLE WITH PARKING SENSORS -Parking sensors- -Optional-

Part#: 221270 Qty: 1

41693291002
CAP -Parking sensors- -Optional-
$378.54

Part#: 69329100 Qty: 2$378.54

42694494002
GASKET -Parking sensors- -Optional-

Part#: 69449400 Qty: 2

431044462412
SCREW -Parking sensors- -Optional-

Part#: 10444624 Qty: 12

441357900412
WASHER -Parking sensors- -Optional-

Part#: 13579004 Qty: 12

45695722001
CAVALLINO RAMPANTE BADGE
$34.08

Part#: 69572200 Qty: 1$34.08

46161017772
NUT -Version with connector (ordered separately, see ref. 52)- -Optional-

Part#: 16101777 Qty: 2

47126004772
WASHER -Version with connector (ordered separately, see ref. 52)- -Optional-

Part#: 12600477 Qty: 2

48144961782
WASHER -Version with connector (ordered separately, see ref. 52)- -Optional-

Part#: 14496178 Qty: 2

49695691001
CONNECTOR NET -Version with connector (ordered separately, see ref. 52)- -Optional-

Part#: 69569100 Qty: 1

501044458712
SCREW -Version with connector (ordered separately, see ref. 52)- -Optional-

Part#: 10444587 Qty: 12

511260107712
WASHER -Version with connector (ordered separately, see ref. 52)- -Optional-

Part#: 12601077 Qty: 12

52695796001
REAR CONNECTOR -Version with connector- -Optional-

Part#: 69579600 Qty: 1
