Ferrari Philadelphia Parts

Table 36

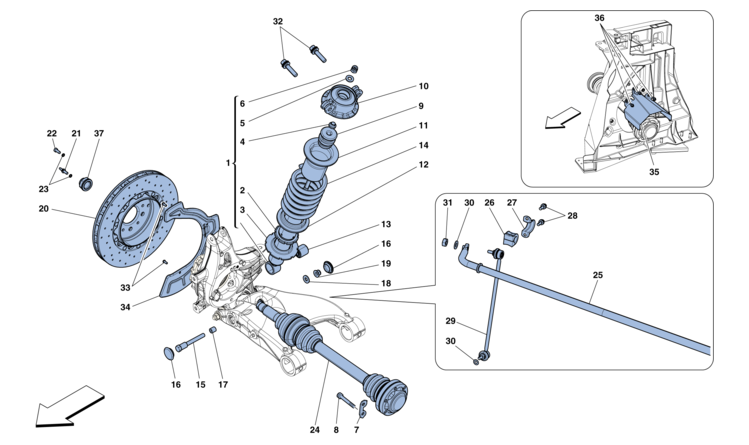

Table 36 - REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

Ref.Part#Qty.DescriptionPrice
12897292
REAR SHOCK ABSORBER
$2975.56

Part#: 289729 Qty: 2$2975.56

22203512
RING NUT
$74.95

Part#: 220351 Qty: 2$74.95

32864022
SPRING RETAINER
$234.34

Part#: 286402 Qty: 2$234.34

42203832
BUSHING

Part#: 220383 Qty: 2

52203772
WASHER

Part#: 220377 Qty: 2

62203782
NUT
$4.90

Part#: 220378 Qty: 2$4.90

72203256
SHIM PLATE
$3.99

Part#: 220325 Qty: 6$3.99

823759012
SCREW
$5.25

Part#: 237590 Qty: 12$5.25

92812212
ENDSTOP BUSH
$51.21

Part#: 281221 Qty: 2$51.21

102503942
STOP CAP
$381.96

Part#: 250394 Qty: 2$381.96

112125172
UPPER SPACER
$22.10

Part#: 212517 Qty: 2$22.10

121889962
LOWER SPACER
$21.80

Part#: 188996 Qty: 2$21.80

131576302
BALL JOINT
$163.04

Part#: 157630 Qty: 2$163.04

143025312
SHOCK ABSORBER SPRING

Part#: 302531 Qty: 2

152469622
SCREW
$29.39

Part#: 246962 Qty: 2$29.39

16145079876
CAP
$2.90

Part#: 14507987 Qty: 6$2.90

172378212
BUSHING
$5.10

Part#: 237821 Qty: 2$5.10

18126469212
WASHER
$0.95

Part#: 12646921 Qty: 2$0.95

192552712
NUT
$1.30

Part#: 255271 Qty: 2$1.30

202949702
BRAKE DISC

Part#: 294970 Qty: 2

211043702
SCREW
$1.50

Part#: 104370 Qty: 2$1.50

222281312
SCREW

Part#: 228131 Qty: 2

232281324
WASHER

Part#: 228132 Qty: 4

242203402
AXLE SHAFT
$1722.23

Part#: 220340 Qty: 2$1722.23

252898801
STABILISER BAR

Part#: 289880 Qty: 1

262408242
PLUG
$26.38

Part#: 240824 Qty: 2$26.38

272447782
PLATE

Part#: 244778 Qty: 2

282641174
SCREW

Part#: 264117 Qty: 4

292504531
RH BALL JOINT TIE-ROD
$183.14

Part#: 250453 Qty: 1$183.14

292504521
LH BALL JOINT TIE-ROD
$183.14

Part#: 250452 Qty: 1$183.14

30126014744
WASHER
$0.25

Part#: 12601474 Qty: 4$0.25

31121647142
NUT
$1.50

Part#: 12164714 Qty: 2$1.50

322487904
SCREW
$5.50

Part#: 248790 Qty: 4$5.50

332506576
SCREW

Part#: 250657 Qty: 6

342574241
RH DISC SHIELD

Part#: 257424 Qty: 1

342574231
LH DISC SHIELD
$82.42

Part#: 257423 Qty: 1$82.42

352508112
SHIELD

Part#: 250811 Qty: 2

36115680276
SCREW

Part#: 11568027 Qty: 6

372037802
NUT
$31.25

Part#: 203780 Qty: 2$31.25
