Ferrari Philadelphia Parts

Table 109

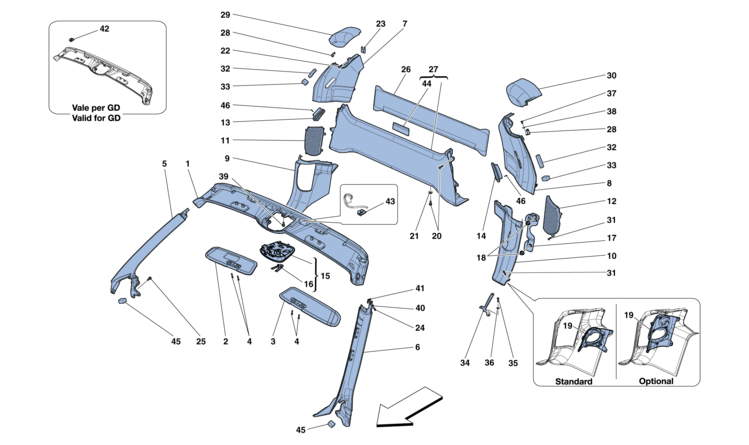

Table 109 - HEADLINER TRIM AND ACCESSORIES

Ref.Part#Qty.DescriptionPrice
1821689..1
UPPER WINDSCREEN TRIM -Leather-

Part#: 821689.. Qty: 1

1840027..1
UPPER WINDSCREEN TRIM -Alcantara-

Part#: 840027.. Qty: 1

2838746..1
RH SUN VISOR -Leather- -STC1- -STC2- -With inner part in black Alcantara- -Not for GD-

Part#: 838746.. Qty: 1

2843629..1
RH SUN VISOR -Leather- -STC1- -STC2- -With inner part in black Alcantara- -Applicable for GD-

Part#: 843629.. Qty: 1

2840023..1
RH SUN VISOR -Alcantara- -STC1- -STC2- -Trimmed completely in Alcantara- -Not for GD-

Part#: 840023.. Qty: 1

2843635..1
RH SUN VISOR -Alcantara- -STC1- -STC2- -Trimmed completely in Alcantara- -Applicable for GD-

Part#: 843635.. Qty: 1

3838747..1
LH SUN VISOR -Leather- -STC1- -STC2- -With inner part in black Alcantara- -Not for GD-

Part#: 838747.. Qty: 1

3843632..1
LH SUN VISOR -Leather- -STC1- -STC2- -With inner part in black Alcantara- -Applicable for GD-

Part#: 843632.. Qty: 1

3840024..1
LH SUN VISOR -Alcantara- -STC1- -STC2- -Trimmed completely in Alcantara- -Not for GD-

Part#: 840024.. Qty: 1

3843637..1
LH SUN VISOR -Alcantara- -STC1- -STC2- -Trimmed completely in Alcantara- -Applicable for GD-

Part#: 843637.. Qty: 1

4133116774
SCREW

Part#: 13311677 Qty: 4

5821738..1
RH WINDSCREEN PILLAR TRIM -Leather-

Part#: 821738.. Qty: 1

5840025..1
RH WINDSCREEN PILLAR TRIM -Alcantara-

Part#: 840025.. Qty: 1

6831836..1
LH WINDSCREEN PILLAR TRIM -Leather-

Part#: 831836.. Qty: 1

6840026..1
LH WINDSCREEN PILLAR TRIM -Alcantara-

Part#: 840026.. Qty: 1

7843304..1
RH UPPER LATERAL TRIM -Leather-

Part#: 843304.. Qty: 1

8843305..1
LH UPPER LATERAL TRIM -Leather-

Part#: 843305.. Qty: 1

9843313..1
RH LOWER LATERAL TRIM -Leather-

Part#: 843313.. Qty: 1

10843314..1
LH LOWER LATERAL TRIM -Leather-

Part#: 843314.. Qty: 1

11839007..1
RH SPEAKER GRILLE

Part#: 839007.. Qty: 1

12839021..1
LH SPEAKER GRILLE

Part#: 839021.. Qty: 1

13840201001
RH SWITCH SURROUND -Leather- -Applicable up to Ass. No. 99379-

Part#: 84020100 Qty: 1

13844562001
RH SWITCH SURROUND -Leather- -Applicable from Ass. No. 99380-

Part#: 84456200 Qty: 1

14840232001
LH SWITCH SURROUND -Leather- -Applicable up to Ass. No. 99379-

Part#: 84023200 Qty: 1

14844563001
LH SWITCH SURROUND -Leather- -Applicable from Ass. No. 99380-

Part#: 84456300 Qty: 1

152321061
LIGHT UNIT -Not for HELE- -Not for USA, CDN-

Part#: 232106 Qty: 1

152565791
LIGHT UNIT -Applicable for HELE- -Not for USA, CDN-

Part#: 256579 Qty: 1

152399041
LIGHT UNIT -Not for HELE- -Applicable for USA, CDN-

Part#: 239904 Qty: 1

152565831
LIGHT UNIT -Applicable for HELE- -Applicable for USA, CDN-

Part#: 256583 Qty: 1

152384821
LIGHT UNIT -Parking sensors- -Not for HELE- -Not for USA, CDN-

Part#: 238482 Qty: 1

152565801
LIGHT UNIT -Parking sensors- -Applicable for HELE- -Not for USA, CDN-

Part#: 256580 Qty: 1

152399051
LIGHT UNIT -Parking sensors- -Not for HELE- -Applicable for USA, CDN-

Part#: 239905 Qty: 1

152565811
LIGHT UNIT -Parking sensors- -Applicable for HELE- -Applicable for USA, CDN-

Part#: 256581 Qty: 1

162412871
SURROUND -Not for USA, CDN-
$94.84

Part#: 241287 Qty: 1$94.84

162412881
SURROUND -Passenger airbag off- -Applicable for USA, CDN-

Part#: 241288 Qty: 1

17843740001
LH TRIM MOUNTING BRACKET -No longer supplied- -Replaced by 83614700-

Part#: 84374000 Qty: 1

17836147001
LH TRIM MOUNTING BRACKET

Part#: 83614700 Qty: 1

18140405142
NUT

Part#: 14040514 Qty: 2

19836047001
LH MOUNTING

Part#: 83604700 Qty: 1

19840099001
LH MOUNTING -Hi-Fi-

Part#: 84009900 Qty: 1

19836048001
RH MOUNTING

Part#: 83604800 Qty: 1

19840098001
RH MOUNTING -Hi-Fi-

Part#: 84009800 Qty: 1

201698148
SCREW
$1.58

Part#: 169814 Qty: 8$1.58

21126381244
WASHER -No longer supplied- -Replaced by 12638178-
$0.29

Part#: 12638124 Qty: 4$0.29

21126381784
WASHER
$1.00

Part#: 12638178 Qty: 4$1.00

22681765002
SCREW -M5 X 12-
$0.48

Part#: 68176500 Qty: 2$0.48

23843576006
FLANK ADJUSTMENT SHIM -No longer supplied- -Replaced by 84707900-

Part#: 84357600 Qty: 6

23847079006
FLANK ADJUSTMENT SHIM

Part#: 84707900 Qty: 6

24681765002
SCREW -M5 X 12-
$0.48

Part#: 68176500 Qty: 2$0.48

25681765004
SCREW -M5 X 12-
$0.48

Part#: 68176500 Qty: 4$0.48

26834316001
REAR SCREEN WATERPROOF MEMBRANE

Part#: 83431600 Qty: 1

27838748..1
COVER FOR REAR SCREEN BULKHEAD -Leather- -STC1- -STC2-

Part#: 838748.. Qty: 1

27840160..1
COVER FOR REAR SCREEN BULKHEAD -Alcantara- -STC1- -STC2-

Part#: 840160.. Qty: 1

28838783002
LATERAL COVER MOUNTING BRACKET

Part#: 83878300 Qty: 2

29833094..1
RH FLAP CORNER PIECE -Leather-

Part#: 833094.. Qty: 1

30833106..1
LH FLAP CORNER PIECE -Leather-

Part#: 833106.. Qty: 1

311698146
SCREW
$1.58

Part#: 169814 Qty: 6$1.58

32842786002
UPPER PILLAR VIBRATION DAMPER

Part#: 84278600 Qty: 2

33842787002
LOWER PILLAR VIBRATION DAMPER

Part#: 84278700 Qty: 2

34835721001
LOWER RH SIDE PANEL BRACKET

Part#: 83572100 Qty: 1

34835722001
LOWER LH SIDE PANEL BRACKET

Part#: 83572200 Qty: 1

35143042206
SCREW -M5 X 16-

Part#: 14304220 Qty: 6

36126477276
WASHER

Part#: 12647727 Qty: 6

37143029244
SCREW -M4 X 10-

Part#: 14302924 Qty: 4

38144469244
WASHER

Part#: 14446924 Qty: 4

391698142
SCREW
$1.58

Part#: 169814 Qty: 2$1.58

40144988012
WASHER
$0.20

Part#: 14498801 Qty: 2$0.20

41819880002
SHIM -Th. 1 mm-

Part#: 81988000 Qty: 2

41810783004
SHIM -Th. 2 mm- -Installed if necessary-

Part#: 81078300 Qty: 4

422660001
CLIP -Applicable for GD-

Part#: 266000 Qty: 1

432660002
CLIP

Part#: 266000 Qty: 2

44851363001
458 DEDICATION PLAQUE

Part#: 85136300 Qty: 1

45842787002
LOWER PILLAR VIBRATION DAMPER

Part#: 84278700 Qty: 2

46159002012
SCREW

Part#: 15900201 Qty: 2
