Ferrari Philadelphia Parts

Table 115

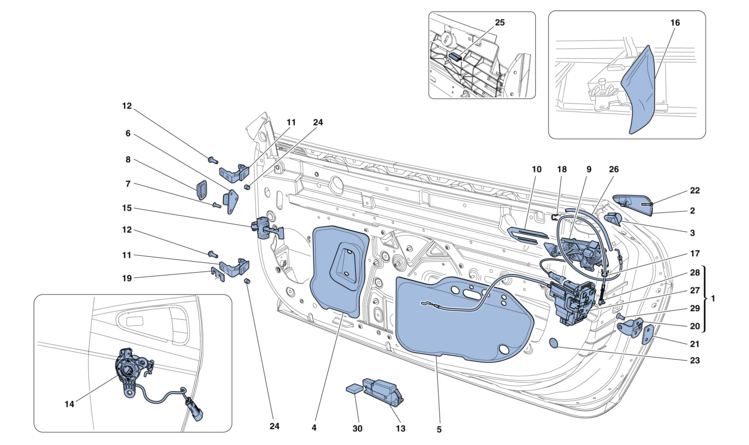

Table 115 - DOORS - OPENING MECHANISM AND HINGES

Ref.Part#Qty.DescriptionPrice
1814866001
RH DOOR LOCK -After depletion, order loose components- -Not for GD- -Applicable until depletion-
$339.41

Part#: 81486600 Qty: 1$339.41

1836794001
RH DOOR LOCK -After depletion, order loose components- -Applicable for GD- -Applicable until depletion-

Part#: 83679400 Qty: 1

1814869001
LH DOOR LOCK -After depletion, order loose components- -Not for GD- -Applicable until depletion-
$403.54

Part#: 81486900 Qty: 1$403.54

1836796001
LH DOOR LOCK -After depletion, order loose components- -Applicable for GD- -Applicable until depletion-

Part#: 83679600 Qty: 1

2819568101
RH OUTER DOOR HANDLE

Part#: 81956810 Qty: 1

2819569101
LH OUTER DOOR HANDLE
$342.02

Part#: 81956910 Qty: 1$342.02

3819587001
RH DOOR HANDLE SEAL

Part#: 81958700 Qty: 1

3819591001
LH DOOR HANDLE SEAL
$18.00

Part#: 81959100 Qty: 1$18.00

4814871001
FRONT RH WATERPROOF MEMBRANE

Part#: 81487100 Qty: 1

4814870001
FRONT LH WATERPROOF MEMBRANE
$403.20

Part#: 81487000 Qty: 1$403.20

5815269001
REAR RH WATERPROOF MEMBRANE

Part#: 81526900 Qty: 1

5815268001
REAR LH WATERPROOF MEMBRANE
$373.64

Part#: 81526800 Qty: 1$373.64

6819164002
DOOR SAFETY HOOK

Part#: 81916400 Qty: 2

7144412346
SCREW
$0.30

Part#: 14441234 Qty: 6$0.30

8819165002
DOOR SAFETY HOOK CAP

Part#: 81916500 Qty: 2

9808216001
RH OUTER DOOR HANDLE MODULE
$390.00

Part#: 80821600 Qty: 1$390.00

9808218002
LH OUTER DOOR HANDLE MODULE
$370.00

Part#: 80821800 Qty: 2$370.00

10808219004
DOOR HANDLE SPACER -75 mm. X 125.6 mm-
$6.10

Part#: 80821900 Qty: 4$6.10

10839412002
DOOR HANDLE SPACER -75 mm. X 98 mm-

Part#: 83941200 Qty: 2

11698271002
RH DOOR HINGE
$178.62

Part#: 69827100 Qty: 2$178.62

11698272002
LH DOOR HINGE

Part#: 69827200 Qty: 2

12812671004
SCREW
$5.50

Part#: 81267100 Qty: 4$5.50

131882502
LIGHT UNIT
$7.75

Part#: 188250 Qty: 2$7.75

14823434001
LATCH HOLDER -Not for GD-

Part#: 82343400 Qty: 1

14828112001
LATCH HOLDER -Applicable for GD-

Part#: 82811200 Qty: 1

15814860002
DOOR ARRESTER TIE-ROD
$78.12

Part#: 81486000 Qty: 2$78.12

16835959002
WATERPROOF MEMBRANE
$36.26

Part#: 83595900 Qty: 2$36.26

17145694801
CLIP
$0.95

Part#: 14569480 Qty: 1$0.95

182480616
CLIP
$1.96

Part#: 248061 Qty: 6$1.96

19807099004
SHIM -Th. 1 mm-

Part#: 80709900 Qty: 4

19807125004
SHIM -Th. 1.5 mm-

Part#: 80712500 Qty: 4

20697569002
DOOR LOCK STRIKER PLATE -Applicable up to Ass. No. 114693-

Part#: 69756900 Qty: 2

20850525002
DOOR LOCK STRIKER PLATE -Grey- -Applicable from Ass. No. 114694-

Part#: 85052500 Qty: 2

21807638006
DOOR STRIKER PLATE SHIM -Applicable up to Ass. No. 114693-

Part#: 80763800 Qty: 6

21850526006
DOOR STRIKER PLATE SHIM -Grey- -Applicable from Ass. No. 114694-

Part#: 85052600 Qty: 6

22144401212
SCREW -No longer supplied- -Replaced by 80365900-

Part#: 14440121 Qty: 2

22803659002
SCREW
$1.25

Part#: 80365900 Qty: 2$1.25

23699667008
ADHESIVE PLUG -No longer supplied- -Replaced by 84841400-

Part#: 69966700 Qty: 8

23848414008
ADHESIVE PLUG

Part#: 84841400 Qty: 8

24841119004
GRUB SCREW

Part#: 84111900 Qty: 4

25847829002
NOISE DAMPER

Part#: 84782900 Qty: 2

26829364002
SHEATH

Part#: 82936400 Qty: 2

27824478001
RH DOOR LOCK -Not for GD-

Part#: 82447800 Qty: 1

27836797001
RH DOOR LOCK -Applicable for GD-

Part#: 83679700 Qty: 1

27824479001
LH DOOR LOCK -Not for GD-

Part#: 82447900 Qty: 1

27836798001
LH DOOR LOCK -Applicable for GD-

Part#: 83679800 Qty: 1

28698771002
BOWDEN CABLE

Part#: 69877100 Qty: 2

29144420344
SCREW -Applicable up to Ass. No. 114693-
$0.29

Part#: 14442034 Qty: 4$0.29

29851334004
SCREW -Grey- -Applicable from Ass. No. 114694-
$0.90

Part#: 85133400 Qty: 4$0.90

30856790002
RUBBER SHIM

Part#: 85679000 Qty: 2
