Ferrari Philadelphia Parts

Table 23

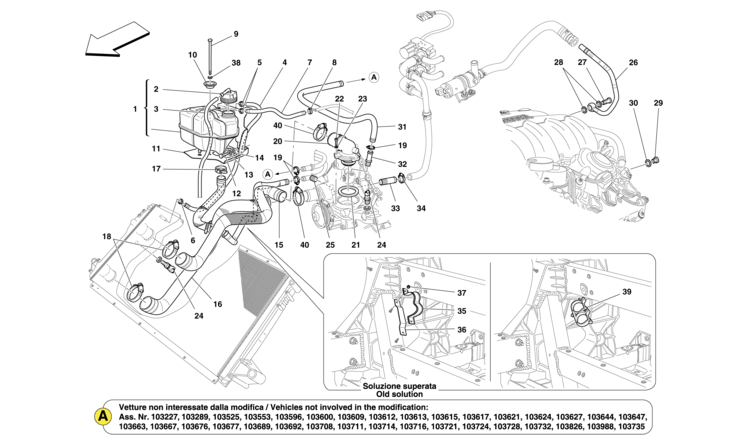

Table 23 - COOLING: HEADER TANK AND PIPES

Ref.Part#Qty.DescriptionPrice
12259921
COMPL. EXPANSION TANK
$391.95

Part#: 225992 Qty: 1$391.95

2465567381
TANK CAP

Part#: 46556738 Qty: 1

32527521
HOSE

Part#: 252752 Qty: 1

42375401
VENT PIPE FROM EXPANSION TANK TO RADIATOR

Part#: 237540 Qty: 1

5134320702
SCREW COLLAR
$1.25

Part#: 13432070 Qty: 2$1.25

6130001901
SCREW COLLAR -No longer supplied- -Replaced by 13432070-
$1.00

Part#: 13000190 Qty: 1$1.00

6134320701
SCREW COLLAR
$1.25

Part#: 13432070 Qty: 1$1.25

72478001
VENT PIPE FROM EXPANSION TANK TO BUNDY

Part#: 247800 Qty: 1

81779951
RING CLAMP
$2.24

Part#: 177995 Qty: 1$2.24

92547171
SCREW

Part#: 254717 Qty: 1

10824044961
CUP

Part#: 82404496 Qty: 1

112527741
BRACKET -Applicable until depletion-

Part#: 252774 Qty: 1

112887861
BRACKET -Applicable after depletion of 252774-

Part#: 288786 Qty: 1

12160434362
SCREW
$0.48

Part#: 16043436 Qty: 2$0.48

131274962
WASHER
$0.50

Part#: 127496 Qty: 2$0.50

14126471212
WASHER

Part#: 12647121 Qty: 2

152447791
DELIVERY PIPE FROM ENGINE TO RADIATOR -Applicable up to Ass. No. 103178-
$746.00

Part#: 244779 Qty: 1$746.00

152756541
DELIVERY PIPE FROM ENGINE TO RADIATOR -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-

Part#: 275654 Qty: 1

162509701
RETURN PIPE FROM RADIATOR TO ENGINE -Applicable up to Ass. No. 103178-

Part#: 250970 Qty: 1

162728371
RETURN PIPE FROM RADIATOR TO ENGINE -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
$497.05

Part#: 272837 Qty: 1$497.05

17130004901
SCREW COLLAR -No longer supplied- -Replaced by 296779-
$1.90

Part#: 13000490 Qty: 1$1.90

172967791
SCREW COLLAR

Part#: 296779 Qty: 1

18130007902
SCREW COLLAR -No longer supplied- -Replaced by 296781-
$1.75

Part#: 13000790 Qty: 2$1.75

182967812
SCREW COLLAR
$16.26

Part#: 296781 Qty: 2$16.26

19130003903
SCREW COLLAR -No longer supplied- -Replaced by 296778-
$2.00

Part#: 13000390 Qty: 3$2.00

192967783
SCREW COLLAR
$13.00

Part#: 296778 Qty: 3$13.00

202308901
THERMO-PRESSOSTAT COVER
$222.26

Part#: 230890 Qty: 1$222.26

211378731
GASKET
$7.55

Part#: 137873 Qty: 1$7.55

22144331243
SCREW
$0.50

Part#: 14433124 Qty: 3$0.50

23126012743
WASHER
$1.00

Part#: 12601274 Qty: 3$1.00

241801372
TEMPERATURE SENSOR
$38.94

Part#: 180137 Qty: 2$38.94

252385101
CAP

Part#: 238510 Qty: 1

262476661
WATER PIPE FROM RH HEAD -Not for GD- -Applicable up to Ass. No. 88122- -Applicable up to engine No. 153878- -Applicable until depletion-

Part#: 247666 Qty: 1

262526891
WATER PIPE FROM RH HEAD -Not for GD- -Applicable from Ass. No. 88123- -Applicable from engine No. 153879- -Applicable after depletion of 247666-

Part#: 252689 Qty: 1

262526891
WATER PIPE FROM RH HEAD -Applicable for GD-

Part#: 252689 Qty: 1

272037871
UNION

Part#: 203787 Qty: 1

28102599602
GASKET
$1.00

Part#: 10259960 Qty: 2$1.00

29103008111
THREADED PLUG -Applicable until depletion-

Part#: 10300811 Qty: 1

292805971
THREADED PLUG -Applicable after depletion of 10300811-

Part#: 280597 Qty: 1

30102599601
GASKET
$1.00

Part#: 10259960 Qty: 1$1.00

312413981
WATER DELIVERY PIPE -Not for CINA, USA, CDN, J, GD- -Applicable up to Ass. No. 89388- -Applicable for DCT gearbox-
$94.05

Part#: 241398 Qty: 1$94.05

312413981
WATER DELIVERY PIPE -Applicable for CINA, USA, CDN, J- -Applicable up to Ass. No. 90608- -Applicable for DCT gearbox-
$94.05

Part#: 241398 Qty: 1$94.05

312413981
WATER DELIVERY PIPE -Applicable for GD- -Applicable up to Ass. No. 91552- -Applicable for DCT gearbox-
$94.05

Part#: 241398 Qty: 1$94.05

312413981
WATER DELIVERY PIPE -Applicable for Mechanical gearbox-
$94.05

Part#: 241398 Qty: 1$94.05

322415791
THREADED UNION

Part#: 241579 Qty: 1

332357361
THREADED UNION

Part#: 235736 Qty: 1

34130004901
SCREW COLLAR -No longer supplied- -Replaced by 296779-
$1.90

Part#: 13000490 Qty: 1$1.90

342967791
SCREW COLLAR

Part#: 296779 Qty: 1

352369501
WATER PIPE CONNECTOR MOUNTING -Obsolete solution-

Part#: 236950 Qty: 1

362369511
PLATE -Obsolete solution-

Part#: 236951 Qty: 1

37140584112
NUT -Obsolete solution-

Part#: 14058411 Qty: 2

38126012741
WASHER
$1.00

Part#: 12601274 Qty: 1$1.00

392594421
CLIP

Part#: 259442 Qty: 1

402677012
SCREW COLLAR -Applicable until depletion-

Part#: 267701 Qty: 2

402967832
SCREW COLLAR -Applicable after depletion of 267701-
$17.34

Part#: 296783 Qty: 2$17.34
