Ferrari Philadelphia Parts

Table 41

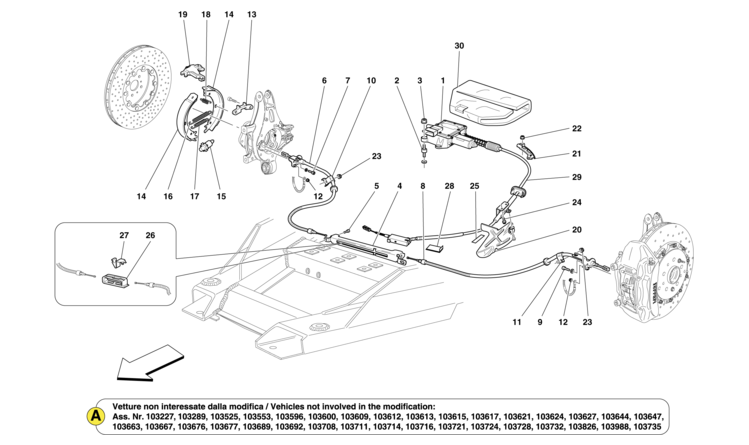

Table 41 - PARKING BRAKE

Ref.Part#Qty.DescriptionPrice
12385471
COMPLETE ELECTRONIC ACTUATOR -No longer supplied- -Replaced by 281143-

Part#: 238547 Qty: 1

12811431
COMPL. ELECTRONIC ACTUATOR -Applicable up to Ass. No. 103178-
$3183.06

Part#: 281143 Qty: 1$3183.06

12775001
ELECTRONIC ACTUATOR -See note A for Ass. Numbers of vehicles not affected by modification- -Without cable- -Applicable from Ass. No. 103179-
$3109.66

Part#: 277500 Qty: 1$3109.66

22520184
PLUG -No longer supplied- -Replaced by 225408-

Part#: 252018 Qty: 4

22254084
VIBRATION DAMPER
$11.23

Part#: 225408 Qty: 4$11.23

3140592144
NUT
$0.50

Part#: 14059214 Qty: 4$0.50

42385491
EQUALISER BRACKET -Applicable up to Ass. No. 103178-

Part#: 238549 Qty: 1

42793241
EQUALISER BRACKET -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
$68.01

Part#: 279324 Qty: 1$68.01

5115680272
SCREW

Part#: 11568027 Qty: 2

62473221
R.H. HAND BRAKE CABLE

Part#: 247322 Qty: 1

7115680271
SCREW

Part#: 11568027 Qty: 1

82473231
L.H. HAND BRAKE CABLE

Part#: 247323 Qty: 1

9115680272
SCREW

Part#: 11568027 Qty: 2

102472342
RH BRACKET

Part#: 247234 Qty: 2

112470841
LH BRACKET

Part#: 247084 Qty: 1

12140592112
NUT

Part#: 14059211 Qty: 2

132409532
REACTION PLATE
$20.52

Part#: 240953 Qty: 2$20.52

142409484
PARKING BRAKE SHOE
$294.29

Part#: 240948 Qty: 4$294.29

151865722
ADJUSTER
$103.00

Part#: 186572 Qty: 2$103.00

162409472
LONG EXTENSION SPRING
$19.36

Part#: 240947 Qty: 2$19.36

172431232
SHORT EXTENSION SPRING
$19.92

Part#: 243123 Qty: 2$19.92

182409524
FASTENER SPRING
$20.32

Part#: 240952 Qty: 4$20.32

191940602
HAND BRAKE CONTROL LEVER -No longer supplied- -Replaced by 254156-

Part#: 194060 Qty: 2

192541562
COMPL. PARKING BRAKE LEVER
$193.45

Part#: 254156 Qty: 2$193.45

202560741
HEAT SHIELD -Not for DCT gearbox- -No longer supplied- -Replaced by 248300-

Part#: 256074 Qty: 1

202483001
EPB CABLE HEAT SHIELD

Part#: 248300 Qty: 1

212474411
CABLE GUIDE RETAINER

Part#: 247441 Qty: 1

22140584112
NUT

Part#: 14058411 Qty: 2

23140592112
NUT

Part#: 14059211 Qty: 2

24115662241
SCREW

Part#: 11566224 Qty: 1

252603551
ADHESIVE SEAL

Part#: 260355 Qty: 1

262459641
CAGE

Part#: 245964 Qty: 1

272451621
CLIP

Part#: 245162 Qty: 1

282399241
RETAINER KEY

Part#: 239924 Qty: 1

292861391
CABLE FROM ACTUATOR TO EQUALISER -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
$564.26

Part#: 286139 Qty: 1$564.26

30817529001
EPB INSULATION

Part#: 81752900 Qty: 1
