Ferrari Philadelphia Parts

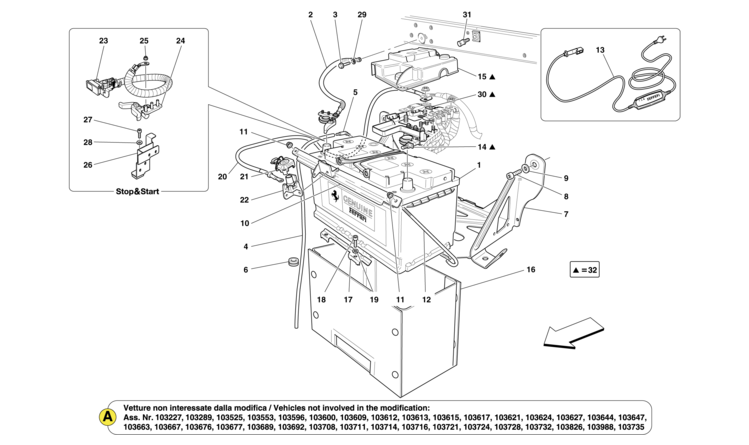

Table 50

Table 50 - BATTERY

Ref.Part#Qty.DescriptionPrice
11913741
BATTERY 12V-100AH-850A -Not for HELE- -Not for Stop & Start-

Part#: 191374 Qty: 1

12563811
BATTERY -95 Ah- -Not for Brazil- -Applicable until depletion-

Part#: 256381 Qty: 1

13121871
BATTERY -95 Ah- -Applicable from start of production for Brazil- -Applicable after depletion of 256381-

Part#: 312187 Qty: 1

22553911
NEGATIVE BATTERY CABLE -Not for HELE- -Not for Stop & Start- -Applicable up to Ass. No. 103178-

Part#: 255391 Qty: 1

22748651
NEGATIVE BATTERY CABLE -Not for HELE- -Not for Stop & Start- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-

Part#: 274865 Qty: 1

22563831
NEGATIVE BATTERY CABLE -Applicable for HELE- -Applicable for Stop & Start- -Applicable up to Ass. No. 103178-

Part#: 256383 Qty: 1

22748981
NEGATIVE BATTERY CABLE -Applicable for HELE- -Applicable for Stop & Start- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-

Part#: 274898 Qty: 1

3162871271
SCREW -No longer supplied- -Replaced by 14305324-

Part#: 16287127 Qty: 1

3143053241
SCREW -No longer supplied- -Replaced by 16286124-

Part#: 14305324 Qty: 1

3162861241
SCREW

Part#: 16286124 Qty: 1

42457451
BATTERY VENT PIPE

Part#: 245745 Qty: 1

51996311
CONNECTOR
$2.05

Part#: 199631 Qty: 1$2.05

6103974801
CABLE GROMMET

Part#: 10397480 Qty: 1

72501041
BRACKET FOR BATTERY FIXING -Not for UK-

Part#: 250104 Qty: 1

72501041
BRACKET FOR BATTERY FIXING -Applicable for UK- -Applicable up to Ass. No. 103178-

Part#: 250104 Qty: 1

72838261
BATTERY FASTENER BRACKET -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable for GD- -Applicable from Ass. No. 103179-

Part#: 283826 Qty: 1

8143063215
SCREW

Part#: 14306321 Qty: 5

9126467014
WASHER

Part#: 12646701 Qty: 4

102512511
UPPER BRACKET

Part#: 251251 Qty: 1

11140584192
NUT
$0.77

Part#: 14058419 Qty: 2$0.77

122457432
TIE-ROD -No longer supplied- -Replaced by 188272-

Part#: 245743 Qty: 2

121882722
TIE-ROD
$9.98

Part#: 188272 Qty: 2$9.98

132315031
BATTERY CHARGER KIT -Optional- -Not for USA, CDN, J, GD- -Applicable until depletion-

Part#: 231503 Qty: 1

132601201
BATTERY CHARGER -Optional- -Not for USA, CDN, J, GD- -Applicable after depletion of 231503- -No longer supplied- -Replaced by 70001700-

Part#: 260120 Qty: 1

13700017001
BATTERY CHARGER KIT -Optional- -Not for USA, CDN, J, GD- -No longer supplied- -Replaced by 70002820-

Part#: 70001700 Qty: 1

13700028201
BATTERY CHARGER KIT -Optional- -Not for USA, CDN, J, GD-

Part#: 70002820 Qty: 1

132315041
BATTERY CHARGER KIT -Optional- -Applicable for USA, CDN- -Applicable until depletion-

Part#: 231504 Qty: 1

132601211
BATTERY CHARGER -Optional- -Applicable for USA, CDN- -Applicable after depletion of 231504- -No longer supplied- -Replaced by 70001701-

Part#: 260121 Qty: 1

13700017011
BATTERY CHARGER KIT -Optional- -Applicable for USA, CDN-

Part#: 70001701 Qty: 1

132315061
BATTERY CHARGER KIT -Optional- -Applicable for UK- -Applicable until depletion-

Part#: 231506 Qty: 1

132601231
BATTERY CHARGER KIT -Optional- -Applicable for UK- -Applicable after depletion of 231506- -No longer supplied- -Replaced by 70001796-

Part#: 260123 Qty: 1

13700017961
BATTERY CHARGER KIT -Optional- -Applicable for UK-

Part#: 70001796 Qty: 1

132367981
BATTERY CHARGER KIT -Optional- -Applicable for J- -Applicable until depletion-

Part#: 236798 Qty: 1

132601241
BATTERY CHARGER KIT -Optional- -Applicable for J- -Applicable after depletion of 236798- -No longer supplied- -Replaced by 70001702-

Part#: 260124 Qty: 1

13700017021
BATTERY CHARGER KIT -Optional- -Applicable for J-

Part#: 70001702 Qty: 1

132315051
BATTERY CHARGER KIT -Optional- -Applicable for AUS- -Applicable until depletion-

Part#: 231505 Qty: 1

132601221
BATTERY CHARGER KIT -Optional- -Applicable for AUS- -Applicable after depletion of 231505-

Part#: 260122 Qty: 1

142478021
BATTERY ECU -No longer supplied- -Replaced by 277404-

Part#: 247802 Qty: 1

142774041
BATTERY ECU -After depletion, order compl. 277403 ref. 32- -Applicable until depletion-

Part#: 277404 Qty: 1

152511611
COVER -After depletion, order compl. 277403 ref. 32- -Applicable until depletion-
$69.53

Part#: 251161 Qty: 1$69.53

162501001
COVER
$509.87

Part#: 250100 Qty: 1$509.87

172501021
BRACKET FOR BATTERY FIXING

Part#: 250102 Qty: 1

18143065212
SCREW

Part#: 14306521 Qty: 2

19126385012
WASHER

Part#: 12638501 Qty: 2

202509991
BATTERY POSITIVE CABLE -Applicable until depletion-

Part#: 250999 Qty: 1

202579751
BATTERY POSITIVE CABLE -Applicable after depletion of 250999-

Part#: 257975 Qty: 1

212513141
PROTECTION BOOT

Part#: 251314 Qty: 1

222512901
POSITIVE POLE

Part#: 251290 Qty: 1

232542641
BATTERY SENSOR -Applicable for HELE- -Applicable for Stop & Start-

Part#: 254264 Qty: 1

24108167941
BATTERY DISCONNECTOR TERMINAL CLAMP WITH LEVER -Applicable for HELE- -Applicable for Stop & Start- -Supplied with negative cable Part No. 274898, ref. 2-
$40.00

Part#: 10816794 Qty: 1$40.00

25140593111
NUT -Applicable for HELE- -Applicable for Stop & Start-
$1.49

Part#: 14059311 Qty: 1$1.49

262647971
POLE AND FUSE MOUNTING BRACKET -Applicable for HELE- -Applicable for Stop & Start-

Part#: 264797 Qty: 1

27143053241
SCREW

Part#: 14305324 Qty: 1

28126204741
WASHER
$0.15

Part#: 12620474 Qty: 1$0.15

29126204741
WASHER
$0.15

Part#: 12620474 Qty: 1$0.15

302783661
FUSE VALVE
$19.20

Part#: 278366 Qty: 1$19.20

311818781
TERMINAL CLAMP -Not for HELE- -Not for Stop & Start-

Part#: 181878 Qty: 1

322774031
COMPL. BATTERY ECU
$215.00

Part#: 277403 Qty: 1$215.00
