Table 7

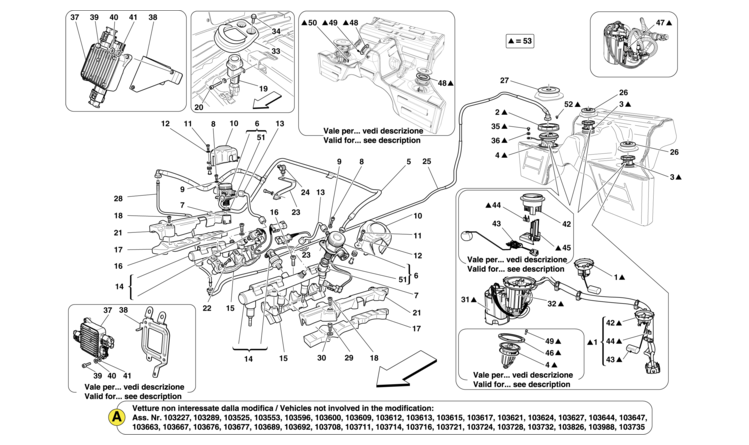

Table 7 - FUEL PUMP AND CONNECTOR PIPES

Ref.Part#Qty.DescriptionPrice
12520742
COMPLETE LEVEL SENSOR -Applicable until depletion-

Part#: 252074 Qty: 2

12594092
COMPL. LEVEL SENSOR -Applicable after depletion of 252074- -No longer supplied-

Part#: 259409 Qty: 2

22394971
FASTENER RING -Applicable up to Ass. No. 103178-
$50.56

Part#: 239497 Qty: 1$50.56

32394132
O-RING
$10.43

Part#: 239413 Qty: 2$10.43

42394121
O-RING -No longer supplied- -Replaced by 275314-
$8.47

Part#: 239412 Qty: 1$8.47

42753141
O-RING -Applicable up to Ass. No. 103178-
$8.90

Part#: 275314 Qty: 1$8.90

42394121
O-RING -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
$8.47

Part#: 239412 Qty: 1$8.47

52547701
COMPL. PUMP FEED PIPE -Applicable up to engine No. 156040-

Part#: 254770 Qty: 1

52606171
COMPL. PUMP FEED PIPE -Applicable from engine No. 156041-

Part#: 260617 Qty: 1

62496552
FUEL PUMP -Applicable until depletion-

Part#: 249655 Qty: 2

62672352
FUEL PUMP -Applicable after depletion of 249655- -Applicable until depletion-

Part#: 267235 Qty: 2

62527042
FUEL PUMP -Applicable after depletion of 267235-

Part#: 252704 Qty: 2

72127972
CUP
$98.13

Part#: 212797 Qty: 2$98.13

8143053344
SCREW
$0.45

Part#: 14305334 Qty: 4$0.45

9126397244
WASHER
$0.50

Part#: 12639724 Qty: 4$0.50

102475372
SOUNDPROOFING COVER

Part#: 247537 Qty: 2

112316214
SCREW
$0.54

Part#: 231621 Qty: 4$0.54

12126477012
WASHER
$0.07

Part#: 12647701 Qty: 2$0.07

132476742
PIPE
$644.40

Part#: 247674 Qty: 2$644.40

142475812
COMPL. INJECTOR PIPE
$2357.34

Part#: 247581 Qty: 2$2357.34

152399462
FUEL RAIL MOUNTING

Part#: 239946 Qty: 2

162316206
SCREW -M6 X 25-
$1.25

Part#: 231620 Qty: 6$1.25

172478722
FUEL RAIL SOUNDPROOFING COVER -Applicable until depletion-

Part#: 247872 Qty: 2

172563222
INJECTOR COVER -Applicable for alternator 250365, table 50 pos. 11- -Applicable up to engine No. 169911- -Applicable after depletion of 247872-

Part#: 256322 Qty: 2

172663372
RAIL SOUNDPROOFING COVER -Applicable for alternator 263829, table 50 pos. 11- -Applicable from engine No. 169912-

Part#: 266337 Qty: 2

182316184
SCREW -M6 X 20- -Applicable with fuel rail cover ref.17-
$0.90

Part#: 231618 Qty: 4$0.90

182316204
SCREW -M6 X 25- -Applicable without fuel rail cover ref.17-
$1.25

Part#: 231620 Qty: 4$1.25

191636751
INERTIA SWITCH
$38.50

Part#: 163675 Qty: 1$38.50

20162851272
SCREW
$1.45

Part#: 16285127 Qty: 2$1.45

212510152
INJECTOR COVER

Part#: 251015 Qty: 2

2223162412
SCREW
$0.50

Part#: 231624 Qty: 12$0.50

232471171
FUEL PIPE FIXING BRACKET

Part#: 247117 Qty: 1

24678851001
CLIP

Part#: 67885100 Qty: 1

252444451
FUEL DELIVERY PIPE -Not for USA, CDN, GD- -No longer supplied- -Replaced by 248968-

Part#: 244445 Qty: 1

252489681
FUEL DELIVERY PIPE -Not for USA, CDN, GD- -Applicable until depletion-

Part#: 248968 Qty: 1

252572941
FUEL DELIVERY PIPE -Applicable for USA, CDN, GD- -Applicable for Mechanical gearbox-

Part#: 257294 Qty: 1

252572941
FUEL DELIVERY PIPE -Not for USA, CDN, GD- -Applicable for Mechanical gearbox- -Applicable after depletion of 248968-

Part#: 257294 Qty: 1

252572941
FUEL DELIVERY PIPE -Not for CINA, USA, CDN, J, GD- -Applicable up to Ass. No. 89388- -Applicable for DCT gearbox-

Part#: 257294 Qty: 1

252572941
FUEL DELIVERY PIPE -Applicable for CINA, USA, CDN, J- -Applicable up to Ass. No. 90608- -Applicable for DCT gearbox-

Part#: 257294 Qty: 1

252572941
FUEL DELIVERY PIPE -Applicable for GD- -Applicable up to Ass. No. 91552- -Applicable for DCT gearbox-

Part#: 257294 Qty: 1

252620581
FUEL DELIVERY PIPE -Not for CINA, USA, CDN, J, GD- -Applicable from Ass. No. 89389 up to Ass. No. 103178- -Applicable for DCT gearbox-

Part#: 262058 Qty: 1

252620581
FUEL DELIVERY PIPE -Applicable for CINA, USA, CDN, J- -Applicable from Ass. No. 90609- -Applicable for DCT gearbox-

Part#: 262058 Qty: 1

252620581
FUEL DELIVERY PIPE -Applicable for GD- -Applicable from Ass. No. 91553- -Applicable for DCT gearbox-

Part#: 262058 Qty: 1

252787731
FUEL DELIVERY PIPE -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-

Part#: 278773 Qty: 1

262504802
INSPECTION CAP

Part#: 250480 Qty: 2

272504811
INSPECTION CAP

Part#: 250481 Qty: 1

282443821
PIPE FROM UNDERFLOOR PIPE TO SHIELD -Not for USA, CDN- -Applicable until depletion-

Part#: 244382 Qty: 1

282572951
PIPE FROM UNDERFLOOR PIPE TO SHIELD -Applicable for Mechanical gearbox- -No longer supplied- -Replaced by 262682-

Part#: 257295 Qty: 1

282572951
PIPE FROM UNDERFLOOR PIPE TO SHIELD -Not for USA, CDN- -Applicable after depletion of 244382-

Part#: 257295 Qty: 1

282572951
PIPE FROM UNDERFLOOR PIPE TO SHIELD -Not for CINA, USA, CDN, J, GD- -Applicable up to Ass. No. 89388- -Applicable for DCT gearbox-

Part#: 257295 Qty: 1

282572951
PIPE FROM UNDERFLOOR PIPE TO SHIELD -Applicable for CINA, USA, CDN, J- -Applicable up to Ass. No. 90608- -Applicable for DCT gearbox-

Part#: 257295 Qty: 1

282572951
PIPE FROM UNDERFLOOR PIPE TO SHIELD -Applicable for GD- -Applicable up to Ass. No. 91552- -Applicable for DCT gearbox-

Part#: 257295 Qty: 1

282620601
PIPE FROM UNDERFLOOR PIPE TO SHIELD -Not for CINA, USA, CDN, J, GD- -Applicable from Ass. No. 89389 up to Ass. No. 103178- -Applicable for DCT gearbox-

Part#: 262060 Qty: 1

282620601
PIPE FROM UNDERFLOOR PIPE TO SHIELD -Applicable for CINA, USA, CDN, J- -Applicable from Ass. No. 90609- -Applicable for DCT gearbox-

Part#: 262060 Qty: 1

282620601
PIPE FROM UNDERFLOOR PIPE TO SHIELD -Applicable for GD- -Applicable from Ass. No. 91553- -Applicable for DCT gearbox-

Part#: 262060 Qty: 1

282626821
PIPE FROM UNDERFLOOR PIPE TO SHIELD -Applicable for Mechanical gearbox-

Part#: 262682 Qty: 1

282808771
PIPE FROM UNDERBODY PIPE TO FIREWALL -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-

Part#: 280877 Qty: 1

292144124
STUD BOLT -Applicable until depletion-

Part#: 214412 Qty: 4

30111943744
WASHER -Applicable until depletion-

Part#: 11194374 Qty: 4

312372601
FUEL PUMP -Not for HELE- -Not for Stop & Start- -Also order filter 282783 ref. 32-
$2021.74

Part#: 237260 Qty: 1$2021.74

312701251
FUEL PUMP -Applicable for HELE- -Applicable for Stop & Start- -Also order filter 282783 ref. 32-
$2229.07

Part#: 270125 Qty: 1$2229.07

322372621
FUEL PUMP WITH FILTER -Also order pump 237260 or 270125 ref. 31- -No longer supplied- -Replaced by 282783-

Part#: 237262 Qty: 1

322827831
FUEL PUMP WITH FILTER -Also order pump 237260 or 270125 ref. 31-
$1371.75

Part#: 282783 Qty: 1$1371.75

33821285001
PROTECTION

Part#: 82128500 Qty: 1

34162851272
SCREW
$1.45

Part#: 16285127 Qty: 2$1.45

35162849141
SCREW

Part#: 16284914 Qty: 1

362722901
WASHER

Part#: 272290 Qty: 1

372649351
PWM COMMAND SIGNAL FOR FUEL PUMPS -Applicable for HELE- -Applicable for Stop & Start-
$616.51

Part#: 264935 Qty: 1$616.51

382708371
BRACKET -Applicable for HELE- -Applicable for Stop & Start- -Applicable up to Ass. No. 103178-

Part#: 270837 Qty: 1

382760431
BRACKET -Applicable for HELE- -Applicable for Stop & Start- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-

Part#: 276043 Qty: 1

39143045242
SCREW -Applicable for HELE- -Applicable for Stop & Start- -Applicable up to Ass. No. 103178-

Part#: 14304524 Qty: 2

39143043242
SCREW -Applicable for HELE- -Applicable for Stop & Start- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
$1.15

Part#: 14304324 Qty: 2$1.15

40135791012
WASHER -Applicable for HELE- -Applicable for Stop & Start-

Part#: 13579101 Qty: 2

41111992742
WASHER -Applicable for HELE- -Applicable for Stop & Start-

Part#: 11199274 Qty: 2

422520732
FUEL LEVEL SENSOR MOUNT -Applicable up to Ass. No. 103178-

Part#: 252073 Qty: 2

422734792
FUEL LEVEL SENSOR MOUNT -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-

Part#: 273479 Qty: 2

432392182
FUEL LEVEL SENSOR -Applicable up to Ass. No. 103178-
$328.47

Part#: 239218 Qty: 2$328.47

432535982
FUEL LEVEL SENSOR -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
$331.05

Part#: 253598 Qty: 2$331.05

442386882
CONNECTOR

Part#: 238688 Qty: 2

452543112
ANGLE ADAPTOR -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-

Part#: 254311 Qty: 2

462759982
FASTENER RING -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-

Part#: 275998 Qty: 2

472375981
FLEXIBLE HOOK

Part#: 237598 Qty: 1

482760012
LEVEL SENSOR FASTENER RING -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-

Part#: 276001 Qty: 2

4925632316
SCREW -M5 X 16- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
$0.60

Part#: 256323 Qty: 16$0.60

50110011241
STUD BOLT -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-

Part#: 11001124 Qty: 1

512913772
FUEL PUMP SEAL
$45.08

Part#: 291377 Qty: 2$45.08

522394563
SECONDARY LOCK -Applicable up to Ass. No. 103178-

Part#: 239456 Qty: 3

532629361
COMPL. FUEL TANK -Not for HELE- -Not for Stop & Start- -Applicable up to Ass. No. 103178-

Part#: 262936 Qty: 1

532813621
COMPL. FUEL TANK -Not for HELE- -Not for Stop & Start- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-

Part#: 281362 Qty: 1

532709161
COMPL. FUEL TANK -Applicable for HELE- -Applicable for Stop & Start- -Applicable up to Ass. No. 103178-

Part#: 270916 Qty: 1

532696991
COMPL. FUEL TANK -Applicable for HELE- -Applicable for Stop & Start- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-

Part#: 269699 Qty: 1
