Ferrari Philadelphia Parts

Table 109/A

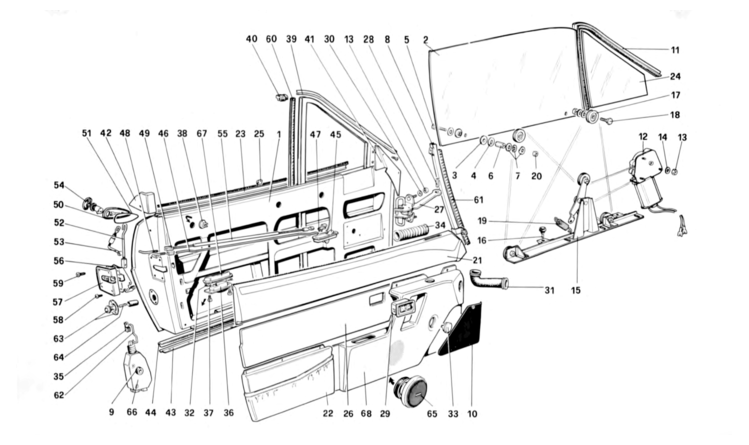

Table 109/A - Doors - Cabriolet

Ref.Part#Qty.DescriptionPrice
1612167001
Right door

Part#: 61216700 Qty: 1

612168001
Left door

Part#: 61216800 Qty: 1

2612896001
Right glass

Part#: 61289600 Qty: 1

612896001
Left glass

Part#: 61289600 Qty: 1

3500869098
Bush

Part#: 50086909 Qty: 8

4126406018
Washer

Part#: 12640601 Qty: 8

5109028214
Hexagonal head screw

Part#: 10902821 Qty: 4

6604415084
Spacer

Part#: 60441508 Qty: 4

71264370134
Washer

Part#: 12643701 Qty: 34

8612175001
Lower guide, real right

Part#: 61217500 Qty: 1

612176001
Lower guide rear left

Part#: 61217600 Qty: 1

9613284002
Spacer

Part#: 61328400 Qty: 2

0608966001
Moquette, right

Part#: 60896600 Qty: 1

608967001
Moquette, left

Part#: 60896700 Qty: 1

1613512002
Gasket
$117.66

Part#: 61351200 Qty: 2$117.66

2613300001
Right window regulator
$867.88

Part#: 61330000 Qty: 1$867.88

613301001
Left window regulator
$624.48

Part#: 61330100 Qty: 1$624.48

31257411110
Selflocking nut

Part#: 12574111 Qty: 10

4126381016
Washer

Part#: 12638101 Qty: 6

5613302001
Lower crosspiece, light

Part#: 61330200 Qty: 1

613303001
Lower crosspiece, left

Part#: 61330300 Qty: 1

6401957034
Rubber plug for stroke stop
$3.45

Part#: 40195703 Qty: 4$3.45

7954092398
Sheave

Part#: 95409239 Qty: 8

8600788058
Pin for sheave
$10.84

Part#: 60078805 Qty: 8$10.84

9606878002
Spring

Part#: 60687800 Qty: 2

201257541118
Selflocking nut

Part#: 12575411 Qty: 18

21612179001
Upper panel, right

Part#: 61217900 Qty: 1

616966001
Covering for right panel

Part#: 61696600 Qty: 1

612180001
Upper panel left

Part#: 61218000 Qty: 1

616965001
Covering for left panel

Part#: 61696500 Qty: 1

12613643001
Pocket R H

Part#: 61364300 Qty: 1

613644001
Pocket L H

Part#: 61364400 Qty: 1

23612199001
Moulding with right gasket (Gasket 60637100)

Part#: 61219900 Qty: 1

612200001
Moulding with left gasket (Gasket 606371001

Part#: 61220000 Qty: 1

24612897001
Fixed glass R H
$760.78

Part#: 61289700 Qty: 1$760.78

612898001
Fixed glass L.H
$466.94

Part#: 61289800 Qty: 1$466.94

25421121010
Clip

Part#: 4211210 Qty: 10

26612190001
Central panel, right

Part#: 61219000 Qty: 1

612191001
Central panel, left

Part#: 61219100 Qty: 1

613953002
Covering for central panel

Part#: 61395300 Qty: 2

7609211002
Stop tie rod for door
$461.33

Part#: 60921100 Qty: 2$461.33

28607302002
Pin for tie rod

Part#: 60730200 Qty: 2

29610632001
Switch for outer mirrors
$308.32

Part#: 61063200 Qty: 1$308.32

10607119004
Washer
$0.92

Part#: 60711900 Qty: 4$0.92

11613390002
Air duct

Part#: 61339000 Qty: 2

12608419004
Clip for underdoor lamp
$0.82

Part#: 60841900 Qty: 4$0.82

33606285002
Plug for window regulator handle

Part#: 60628500 Qty: 2

34607379002
Bellows for electric cables

Part#: 60737900 Qty: 2

35400632082
Clip
$5.90

Part#: 40063208 Qty: 2$5.90

36608421002
Underdoor lamp

Part#: 60842100 Qty: 2

3713272042
Screw for underdoor lamp

Part#: 13272042

38145778808
Clip

Part#: 14577880 Qty: 8

39612205002
Gasket
$36.59

Part#: 61220500 Qty: 2$36.59

10613493001
Upper R.H. terminal
$30.00

Part#: 61349300 Qty: 1$30.00

613494001
Upper L.H. terminal

Part#: 61349400 Qty: 1

41612206001
Front R.H. moulding

Part#: 61220600 Qty: 1

612207001
Front L.H. moulding

Part#: 61220700 Qty: 1

42614256001
Rear R.H. moulding

Part#: 61425600 Qty: 1

614257001
Rear L.H. moulding

Part#: 61425700 Qty: 1

43607250002
Framework

Part#: 60725000 Qty: 2

14607251002
Underdoor gasket
$29.04

Part#: 60725100 Qty: 2$29.04

45606312001
Inside door handle (right)

Part#: 60631200 Qty: 1

606313001
Inside door handle (left)

Part#: 60631300 Qty: 1

16606327002
Front semi rod for safety lock

Part#: 60632700 Qty: 2

47300161091
Clip

Part#: 30016109 Qty: 1

18606328002
Rear semi rod for safety lock

Part#: 60632800 Qty: 2

19600886062
Sleeve

Part#: 60088606 Qty: 2

50606333001
Outer handle for light door
$358.45

Part#: 60633300 Qty: 1$358.45

606334001
Outer handle for left door
$578.64

Part#: 60633400 Qty: 1$578.64

51610844002
Gasket for outer handle
$22.55

Part#: 61084400 Qty: 2$22.55

52606336002
Rod for safety lock

Part#: 60633600 Qty: 2

53606338002
Rod between outer handle and lock

Part#: 60633800 Qty: 2

54607191001
Right and left lock with key

Part#: 60719100 Qty: 1

55607755002
Cable, complete, for lock control

Part#: 60775500 Qty: 2

56606343001
Lock for right door

Part#: 60634300 Qty: 1

606344001
Lock for left door
$109.70

Part#: 60634400 Qty: 1$109.70

57606347001
Frame for right door lock

Part#: 60634700 Qty: 1

606348001
Frame for left door lock
$7.98

Part#: 60634800 Qty: 1$7.98

58609095004
Lock fixing screw
$2.99

Part#: 60909500 Qty: 4$2.99

59609096004
Lock fixing screw
$0.83

Part#: 60909600 Qty: 4$0.83

50MC3475/22
Upper and front run channel
$18.50

Part#: MC3475/2 Qty: 2$18.50

51612198002
Rear run channel

Part#: 61219800 Qty: 2

5225730206011
Rod for locking device R.H. door
$2.25

Part#: 2573020601 Qty: 1$2.25

25730207011
Rod for locking device L.H. door
$2.78

Part#: 2573020701 Qty: 1$2.78

53607881002
Open door light
$12.00

Part#: 60788100 Qty: 2$12.00

541015252
Bulb
$3.95

Part#: 101525 Qty: 2$3.95

55608709002
Loudspeaker

Part#: 60870900 Qty: 2

56954013271
Locking device for right door
$245.00

Part#: 95401327 Qty: 1$245.00

613295001
Locking device for left door
$284.95

Part#: 61329500 Qty: 1$284.95

57608420002
Housing for underdoor lamp
$18.82

Part#: 60842000 Qty: 2$18.82

58612186001
Lower panel, right

Part#: 61218600 Qty: 1

606262001
Front covering for right panel

Part#: 60626200 Qty: 1

612187001
Lower panel, left

Part#: 61218700 Qty: 1

606263001
Front covering for left panel

Part#: 60626300 Qty: 1
