Ferrari Philadelphia Parts

Table 111

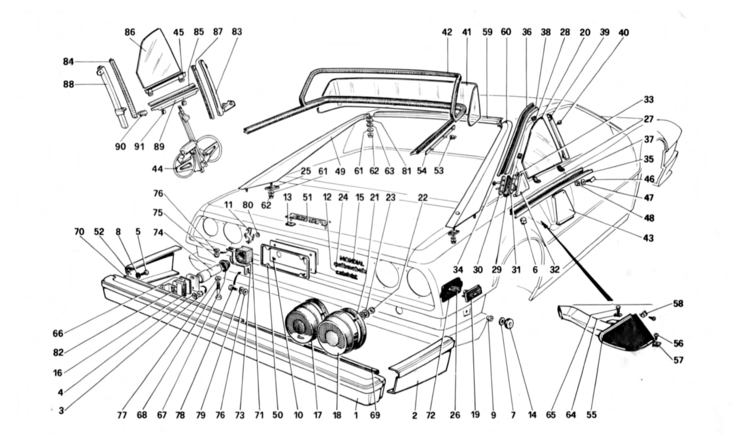

Table 111 - Bumpers, lights and rear glasses

Ref.Part#Qty.DescriptionPrice
1608334001
Bumper, centre section USA

Part#: 60833400 Qty: 1

608334001
Bumper, centre section CDN only

Part#: 60833400 Qty: 1

2608337001
Bumper R.H. USA

Part#: 60833700 Qty: 1

608337001
Bumper R.H. CDN only

Part#: 60833700 Qty: 1

3125745114
Selflocking nut

Part#: 12574511 Qty: 4

4126386014
Washer
$1.00

Part#: 12638601 Qty: 4$1.00

51568830812
Self threading screw CDN only

Part#: 15688308 Qty: 12

642112106
Clip (Quattrovalvole)

Part#: 4211210 Qty: 6

7126406014
Washer

Part#: 12640601 Qty: 4

81263817712
Washer CDN only

Part#: 12638177 Qty: 12

9125754114
Cap nut

Part#: 12575411 Qty: 4

10609606001
Plate holder
$54.94

Part#: 60960600 Qty: 1$54.94

11600321091
House
$107.49

Part#: 60032109 Qty: 1$107.49

12613411001
Cabriolet name
$49.15

Part#: 61341100 Qty: 1$49.15

13603245062
Clip
$2.32

Part#: 60324506 Qty: 2$2.32

14612628004
Spacer USA

Part#: 61262800 Qty: 4

605735004
Spacer CDN only

Part#: 60573500 Qty: 4

15611210001
Mondial name
$279.77

Part#: 61121000 Qty: 1$279.77

16612636002
Pad USA

Part#: 61263600 Qty: 2

17608685002
Parking stop rear light
$204.65

Part#: 60868500 Qty: 2$204.65

18601704042
Direction reverse rear light

Part#: 60170404 Qty: 2

19607804002
Rear side marker

Part#: 60780400 Qty: 2

20606375001
Right glass, blue coloured (Quattrovalvole)

Part#: 60637500 Qty: 1

606376001
Left glass, blue coloured (Quattrovalvole)

Part#: 60637600 Qty: 1

21605921004
Gasket for rear lights

Part#: 60592100 Qty: 4

221079401112
Nut
$0.03

Part#: 10794011 Qty: 12$0.03

231061527124
Tab washer

Part#: 10615271 Qty: 24

24611211001
Quattrovalvole name (Quattrovalvole)
$345.79

Part#: 61121100 Qty: 1$345.79

25609954004
Gasket (Quattrovalvole)

Part#: 60995400 Qty: 4

26141458902
Bulb for side market

Part#: 14145890 Qty: 2

27607437004
Lower grommet (Quattrovalvole)

Part#: 60743700 Qty: 4

28607438004
Upper grommet (Quattrovalvole)

Part#: 60743800 Qty: 4

29606638002
Rubber flap (Quattrovalvole)

Part#: 60663800 Qty: 2

30606639002
Flap fixing moulding (Quattrovalvole)

Part#: 60663900 Qty: 2

31606640002
Counter moulding (Quattrovalvole)

Part#: 60664000 Qty: 2

32606641001
Right moulding on flap (Quattrovalvole)

Part#: 60664100 Qty: 1

606642001
Left moulding on flap (Quattrovalvole)

Part#: 60664200 Qty: 1

33606643002
Gasket (Quattrovalvole)

Part#: 60664300 Qty: 2

34603245064
Clip (Quattrovalvole)
$2.32

Part#: 60324506 Qty: 4$2.32

35606726001
Right moulding (Quattrovalvole)

Part#: 60672600 Qty: 1

606727001
Left moulding (Quattrovalvole)

Part#: 60672700 Qty: 1

366097060002
Upper gasket (Quattrovalvole)

Part#: 609706000 Qty: 2

37606648002
Lower gasket (Quattrovalvole)

Part#: 60664800 Qty: 2

38606651001
Upper light frame (Quattrovalvole)

Part#: 60665100 Qty: 1

606652001
Upper left frame (Quattrovalvole)
$54.28

Part#: 60665200 Qty: 1$54.28

39606716001
Moulding for light post (Quattrovalvole)

Part#: 60671600 Qty: 1

606717001
Moulding for left post (Quattrovalvole)

Part#: 60671700 Qty: 1

40156921786
Screw (Quattrovalvole)

Part#: 15692178 Qty: 6

41618964001
Thermic rear window (Quattrovalvole)

Part#: 61896400 Qty: 1

42608544001
Gasket for rear window (Quattrovalvole)

Part#: 60854400 Qty: 1

43612963001
Insert for right air intake (Cabriolet)

Part#: 61296300 Qty: 1

612964001
Insert for left air intake (Cabriolet)

Part#: 61296400 Qty: 1

44700005311
Right window regulator (Cabriolet)

Part#: 70000531 Qty: 1

700005321
Left window regulator (Cabriolet)

Part#: 70000532 Qty: 1

45612938002
Frame for glass (Cabriolet)

Part#: 61293800 Qty: 2

46607072004
Plate and screw (Quattrovalvole)
$3.43

Part#: 60707200 Qty: 4$3.43

47126428014
Washer (Quattrovalvole)

Part#: 12642801 Qty: 4

48107940114
Nut (Quattrovalvole)
$0.03

Part#: 10794011 Qty: 4$0.03

49605783001
Rubber for left fins (Quattrovalvole)

Part#: 60578300 Qty: 1

50609879001
Plate frame
$105.00

Part#: 60987900 Qty: 1$105.00

51610250001
Ferrari name
$126.92

Part#: 61025000 Qty: 1$126.92

52612631001
Bumper L.H. USA
$250.25

Part#: 61263100 Qty: 1$250.25

612631001
Bumper L.H. CDN only
$250.25

Part#: 61263100 Qty: 1$250.25

53601099076
Clip (Quattrovalvole)

Part#: 60109907 Qty: 6

54608469002
Moulding fixing gasket (Quattrovalvole)

Part#: 60846900 Qty: 2

55613253001
Right air intake (Quattrovalvole)

Part#: 61325300 Qty: 1

612255001
Right air intake (Cabriolet)

Part#: 61225500 Qty: 1

612820001
Left an intake (Quattrovalvole)

Part#: 61282000 Qty: 1

612258001
Left air intake (Cabriolet)

Part#: 61225800 Qty: 1

561568830612
Screw

Part#: 15688306 Qty: 12

57606747006
Clip

Part#: 60674700 Qty: 6

58607143006
Clip
$10.95

Part#: 60714300 Qty: 6$10.95

59605781001
Rear rubber for roof (Quattrovalvole)

Part#: 60578100 Qty: 1

60605782001
Rubber for left fins (Quattrovalvole)

Part#: 60578200 Qty: 1

61126437017
Washer (Quattrovalvole)

Part#: 12643701 Qty: 7

62138321017
Nut (Quattrovalvole)
$0.55

Part#: 13832101 Qty: 7$0.55

63605809003
Shim of eventual use (Quattrovalvole)

Part#: 60580900 Qty: 3

64607408004
Clip

Part#: 60740800 Qty: 4

65607407004
Screw

Part#: 60740700 Qty: 4

66609094002
Shim

Part#: 60909400 Qty: 2

67601889012
Gasket

Part#: 60188901 Qty: 2

68607774002
Screw

Part#: 60777400 Qty: 2

69608336001
Right moulding (CDN only)

Part#: 60833600 Qty: 1

70608801001
Left moulding (CDN only)
$115.00

Part#: 60880100 Qty: 1$115.00

71612622002
Pad USA

Part#: 61262200 Qty: 2

607773002
Pad (CDN only)

Part#: 60777300 Qty: 2

72609738001
Right cover for side marker (Quattrovalvole)

Part#: 60973800 Qty: 1

609739001
Left cover for side marker (Quattrovalvole)

Part#: 60973900 Qty: 1

73608014002
Securing strap

Part#: 60801400 Qty: 2

74612623002
Shock absorber USA

Part#: 61262300 Qty: 2

608331002
Shock absorber (CDN only)
$97.03

Part#: 60833100 Qty: 2$97.03

75125756112
Selflocking nut

Part#: 12575611 Qty: 2

76126468014
Washer
$1.30

Part#: 12646801 Qty: 4$1.30

77105720712
Washer

Part#: 10572071 Qty: 2

78159705212
Screw

Part#: 15970521 Qty: 2

79105718712
Washer

Part#: 10571871 Qty: 2

80809951004
Gasket for house

Part#: 80995100 Qty: 4

81609200003
Shim (Quattrovalvole)

Part#: 60920000 Qty: 3

82612773002
Bracket fixing bumper USA

Part#: 61277300 Qty: 2

13612940001
Guide, front right (Cabriolet)

Part#: 61294000 Qty: 1

612941001
Guide, front left (Cabriolet)
$363.32

Part#: 61294100 Qty: 1$363.32

84612950002
Rear gasket (Cabriolet)
$22.00

Part#: 61295000 Qty: 2$22.00

85612936001
Gasket R.H. (Cabriolet)
$26.94

Part#: 61293600 Qty: 1$26.94

612937001
Gasket L.H. (Cabriolet)
$50.33

Part#: 61293700 Qty: 1$50.33

86612509001
Glass R.H. (Cabriolet)

Part#: 61250900 Qty: 1

612510001
Glass L.H. (Cabriolet)
$30.57

Part#: 61251000 Qty: 1$30.57

87612959002
Gasket (Cabriolet)

Part#: 61295900 Qty: 2

88612950001
Front gasket (Cabriolet)
$22.00

Part#: 61295000 Qty: 1$22.00

89612942001
Guide, rear right (Cabriolet)

Part#: 61294200 Qty: 1

612943001
Guide, rear left (Cabriolet)

Part#: 61294300 Qty: 1

90612977001
Moulding R.H. (Cabriolet)
$200.22

Part#: 61297700 Qty: 1$200.22

612978001
Moulding L.H. (Cabriolet)

Part#: 61297800 Qty: 1
